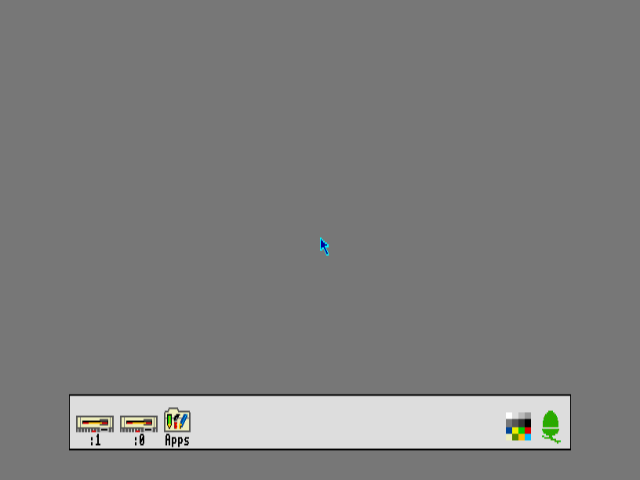

Acorn A3010 - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
aa3010	acorn/aa310.cpp		no	no	no	yes	Acorn A3010	1992	Acorn Computers

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	735	292	50.080128	16000000	1024	0	735	312	0	292	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
0296,061-02.ic17	1048576	552fc3aa	b2f1911e53d7377f2e69e1a870139745d3df494b	maincpu	0	good	no
0296,062-02.ic18	1048576	308d5a4a	b309e1dd85670a06d77ec504dbbec6c42336329f	maincpu	2	good	no
cmos_riscos3.bin	256	96ed59b2	9dab30b4c3305e1142819687889fca334b532679	i2cmem	0	good	no

chip

type	tag	name	clock
cpu	maincpu	ARM	12000000
cpu	keyboard:mcu	Intel 8051	12000000
audio	vidc:lspeaker	Speaker
audio	vidc:rspeaker	Speaker
audio	vidc:dac0	16-Bit R-2R Twos Complement DAC
audio	vidc:dac1	16-Bit R-2R Twos Complement DAC
audio	vidc:dac2	16-Bit R-2R Twos Complement DAC
audio	vidc:dac3	16-Bit R-2R Twos Complement DAC
audio	vidc:dac4	16-Bit R-2R Twos Complement DAC
audio	vidc:dac5	16-Bit R-2R Twos Complement DAC
audio	vidc:dac6	16-Bit R-2R Twos Complement DAC
audio	vidc:dac7	16-Bit R-2R Twos Complement DAC
audio	upc:fdc:0:35hd:flopsndout	Speaker
audio	upc:fdc:0:35hd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
flop_list	archimedes	original
hdd_list	archimedes_hdd	original
rom_list	archimedes_rom	original	ARC

device_ref

name
arm_cpu
memc
ioc
archimedes_keyboard
i8051
screen
acorn_vidc1a
speaker
speaker
dac_16bit_r2r_tc
dac_16bit_r2r_tc
dac_16bit_r2r_tc
dac_16bit_r2r_tc
dac_16bit_r2r_tc
dac_16bit_r2r_tc
dac_16bit_r2r_tc
dac_16bit_r2r_tc
ram
software_list
software_list
software_list
archimedes_exp
pcf8583
ds2401
upc82c711
ata_interface
ata_slot
ata_slot
upd765a
floppy_connector
floppy_35_hd
speaker
flopsnd
floppy_connector
pc_lpt
centronics
centronics_printer
printer_image
input_buffer
input_buffer
input_buffer
output_latch
output_latch
ns16450
ns16450
rs232
archimedes_exp_slot
archimedes_econet_slot

sound

channels
3

ramoption

name	default
2M
1M	yes

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
floppydisk	upc:fdc:0:35hd	floppy_3_5			floppydisk	flop
printout	upc:parallel:centronics:printer:printer				printout	prin

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
floppydisk	upc:fdc:0:35hd	floppy_3_5			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, adf, apd, jfd, ads, adm, adl, ssd, bbc, dsd, st, msa
printout	upc:parallel:centronics:printer:printer				prn

input

players	coins	service	tilt
3		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity
joy	1	1	8	no
keyboard	1	106		no
joy	2	1	8	no
mouse	3			no	0	65535	100

port, analog

port_tag	analog_masks
:joy_p1
:joy_p2
:keyboard:MOUSE.0	65535
:keyboard:MOUSE.1	65535
:keyboard:MOUSE.2
:keyboard:ROW.0
:keyboard:ROW.1
:keyboard:ROW.10
:keyboard:ROW.11
:keyboard:ROW.12
:keyboard:ROW.13
:keyboard:ROW.14
:keyboard:ROW.15
:keyboard:ROW.2
:keyboard:ROW.3
:keyboard:ROW.4
:keyboard:ROW.5
:keyboard:ROW.6
:keyboard:ROW.7
:keyboard:ROW.8
:keyboard:ROW.9

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
upc:ide:0
upc:ide:1
upc:fdc:0	525qd	floppy_525_qd	no
upc:fdc:0	525sd	floppy_525_sd	no
upc:fdc:0	35hd	floppy_35_hd	yes
upc:fdc:0	35dd	floppy_35_dd	no
upc:fdc:1	525qd	floppy_525_qd	no
upc:fdc:1	525sd	floppy_525_sd	no
upc:fdc:1	35hd	floppy_35_hd	no
upc:fdc:1	35dd	floppy_35_dd	no
upc:parallel:centronics	spjoy	spjoy	no
upc:parallel:centronics	nlq401	nlq401	no
upc:parallel:centronics	smartboard	centronics_smartboard	no
upc:parallel:centronics	chessmec	centronics_chessmec	no
upc:parallel:centronics	samdac	centronics_samdac	no
upc:parallel:centronics	covox_stereo	covox_stereo	no
upc:parallel:centronics	adaptator	adaptator_multitap	no
upc:parallel:centronics	digiblst	cpcdigiblst	no
upc:parallel:centronics	lx800	lx800	no
upc:parallel:centronics	jx80	epson_jx80	no
upc:parallel:centronics	ap2000	ap2000	no
upc:parallel:centronics	ex800	ex800	no
upc:parallel:centronics	fx80	epson_fx80	no
upc:parallel:centronics	rx80	epson_rx80	no
upc:parallel:centronics	covox	covox	no
upc:parallel:centronics	pl80	comx_pl80	no
upc:parallel:centronics	lx810l	lx810l	no
upc:parallel:centronics	p72	p72	no
upc:parallel:centronics	printer	centronics_printer	yes
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no
rs232	rs_printer	rs_serial_printer	no
podule1	upmidi_aka12	arc_upmidi_aka12	no
podule1	upa_hccs	arc_upa_hccs	no
podule1	uma_morley	arc_uma_morley	no
podule1	ethera	arc_ethera	no
podule1	bbcio_we	arc_bbcio_we	no
podule1	scanlight	arc_scanlight	no
podule1	etherd	arc_etherd	no
podule1	bbcio_aga30	arc_bbcio_aga30	no
econet	rtfmjoy	arc_rtfmjoy	no
econet	sampler	arc_serial_sampler	no
econet	midi	arc_serial_midi	no
econet	econet	arc_econet	no
