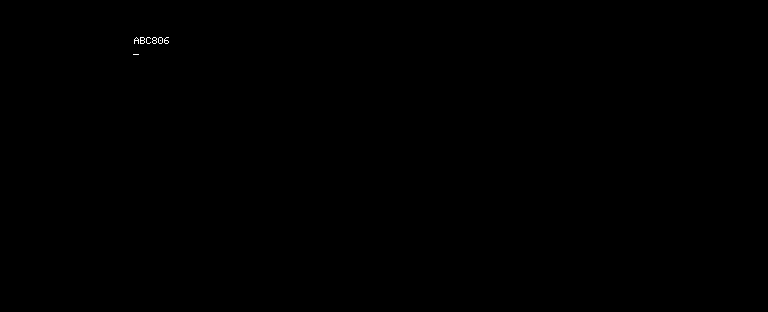

ABC 806 - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
abc806	luxor/abc80x.cpp		no	no	no	yes	ABC 806	1983	Luxor Datorer AB

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	480	250	49.761146	12000000	768	0	480	314	0	250	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	bios
abc 66-21.2k	4096	c311b57a	4bd2a541314e53955a0d53ef2f9822a202daa485	z80	6000	good	no	ufd19
abc 66-31.2k	4096	a2e38260	0dad83088222cb076648e23f50fec2fddc968883	z80	6000	good	no	ufd20
mica2006.2k	4096	58bc2aa8	0604bd2396f7d15fcf3d65888b4b673f554037c0	z80	6000	good	no	mica20
cmd8_5.2k	4096	25430ef7	03a36874c23c215a19b0be14ad2f6b3b5fb2c839	z80	6000	good	no	catnet
ln806.2k	4096	034b5991	ba7f8653f4e516687a4399abef450e361f2bfd20	z80	6000	good	no	luxnet
abc 06-11.1m	4096	27083191	9b45592273a5673e4952c6fe7965fc9398c49827	z80	0	good	no
abc 16-11.1l	4096	eb0a08fd	f0b82089c5c8191fbc6a3ee2c78ce730c7dd5145	z80	1000	good	no
abc 26-11.1k	4096	97a95c59	013bc0a2661f4630c39b340965872bf607c7bd45	z80	2000	good	no
abc 36-11.1j	4096	b50e418e	991a59ed7796bdcfed310012b2bec50f0b8df01c	z80	3000	good	no
abc 46-11.2m	4096	17a87c7d	49a7c33623642b49dea3d7397af5a8b9dde8185b	z80	4000	good	no
abc 56-11.2l	4096	b4b02358	95338efa3b64b2a602a03bffc79f9df297e9534a	z80	5000	good	no
abc 76-11.2j	4096	3eb5f6a1	02d4e38009c71b84952eb3b8432ad32a98a7fe16	z80	7000	good	yes
abc 76-xx.2j	4096	b364cc49	9a2c373778856a31902cdbd2ae3362c200a38e24	z80	7000	good	no
abc t6-11.7c	4096	b17c51c5	e466e80ec989fbd522c89a67d274b8f0bed1ff72	b12	0	good	no
60 90241-01.9b	512	ad549ebb	4fe228ce3b84ed6f0ffd5431f2f33b94c3e5268b	rad	0	good	no
60 90128-01.6e	32	d970a972	c47fdd61fccc68368d42f03a01c7af90ab1fe1ab	hru	0	good	no
60 90127-01.12g	512	8e9d7cdc	4ad16dc0992e31cdb2e644c7be81d334a56f7ad6	hru2	0	good	no
60 90242-01.7e	512	788a56d8	d81e55cdddc36f5d41bf0a33104c75fac590b764	v50	0	good	no
60 90239-01.1b	260	f3d0ba00	bcc0ee26ecac0028aef6bf5cb308133b509bb360	abc_p3	0	good	no
60 90240-01.2d	260	3cc5518d	343cf951d01c9d361b695bb4e80eaadf0820b6bc	abc_p4	0	good	no

chip

type	tag	name	clock
cpu	z80	Zilog Z80	3000000
cpu	bus:abc832:5ab	Zilog Z80	4000000
cpu	kb:abc77:z16	Intel 8035	4608000
audio	mono	Speaker
audio	discrete	Discrete Sound
audio	cas	Cassette
audio	bus:abc832:7ab:0:525qd:flopsndout	Speaker
audio	bus:abc832:7ab:0:525qd:floppysound	Floppy sound	44100
audio	bus:abc832:7ab:1:525qd:flopsndout	Speaker
audio	bus:abc832:7ab:1:525qd:floppysound	Floppy sound	44100
audio	kb:abc77:mono	Speaker
audio	kb:abc77:discrete	Discrete Sound

softwarelist

tag	name	status
flop_list_830	abc830_flop	original
flop_list_832	abc832_flop	original
flop_list_838	abc838_flop	original
hdd_list	abc800_hdd	original
flop_list_806	abc806_flop	original

device_ref

name
z80
z80ctc
z80ctc_channel
z80ctc_channel
z80ctc_channel
z80ctc_channel
timer
z80sio
z80sio_channel
z80sio_channel
z80dart
z80dart_channel
z80dart_channel
speaker
discrete
cassette_image
timer
rs232
rs232
abcbus_slot
abc832
z80
z80dma
fd1793
floppy_connector
floppy_525_qd
speaker
flopsnd
floppy_connector
floppy_525_qd
speaker
flopsnd
software_list
software_list
software_list
software_list
quickload
ls259
mc6845
screen
palette
e0516
abc_keyboard_port
abc77
i8035
watchdog
speaker
discrete
ram
software_list

biosset

name	description	default
ufd19	UFD-DOS v.19 (1984-03-02)	no
ufd20	UFD-DOS v.20 (1984-04-03)	yes
mica20	MICA DOS v.20 (1984-04-03)	no
catnet	CAT-NET CMD 8.5	no
luxnet	LUXNET	no

sound

channels
4

ramoption

name	default
544K
160K	yes

device, instance

type	tag	interface	name	briefname
cassette	cas	abc800_cass	cassette	cass
floppydisk	bus:abc832:7ab:0:525qd	floppy_5_25	floppydisk1	flop1
floppydisk	bus:abc832:7ab:1:525qd	floppy_5_25	floppydisk2	flop2
quickload	quickload	abc800_quik	quickload	quik

device, extension

type	tag	interface	extension_names
cassette	cas	abc800_cass	wav, flac
floppydisk	bus:abc832:7ab:0:525qd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, img
floppydisk	bus:abc832:7ab:1:525qd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, img
quickload	quickload	abc800_quik	bac

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keyboard		77		no

port, analog

port_tag	analog_masks
:SB
:bus:abc832:S1
:bus:abc832:S6
:bus:abc832:S8
:bus:abc832:S9
:bus:abc832:SW1
:bus:abc832:SW2
:bus:abc832:SW3
:kb:abc77:DSW
:kb:abc77:SW1
:kb:abc77:X0
:kb:abc77:X1
:kb:abc77:X10
:kb:abc77:X11
:kb:abc77:X2
:kb:abc77:X3
:kb:abc77:X4
:kb:abc77:X5
:kb:abc77:X6
:kb:abc77:X7
:kb:abc77:X8
:kb:abc77:X9

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
pr	teletex800	teletex800	no
pr	printer	serial_printer	no
v24	terminal	serial_terminal	no
v24	sunkbd	sunkbd_adaptor	no
v24	dec_loopback	dec_rs232_loopback	no
v24	ie15	ie15_terminal	no
v24	null_modem	null_modem	no
v24	keyboard	serial_keyboard	no
v24	patch	rs232_patch_box	no
v24	swtpc8212	swtpc8212_terminal	no
v24	printer	serial_printer	no
v24	scorpion	scorpion_ic	no
v24	loopback	rs232_loopback	no
v24	mockingboard	mockingboardd	no
v24	msystems_mouse	rs232_mouse_hle_msystems	no
v24	nss_tvi	nss_tvinterface	no
v24	rs232_sync_io	rs232_sync_io	no
v24	pty	pseudo_terminal	no
v24	rs_printer	rs_serial_printer	no
bus	unidisk	abc_unidisk	no
bus	uni800	abc_uni800	no
bus	xebec	lux21056	no
bus	slutprov	abc_slutprov	no
bus	slow	lux10828	no
bus	abc830	abc830	no
bus	db4107	abc_db4107	no
bus	abc832	abc832	yes
bus	abc834	abc834	no
bus	abc850	abc850	no
bus	abc838	abc838	no
bus	db4112	abc_db4112	no
bus	abc852	abc852	no
bus	abc856	abc856	no
bus	abc890	abc890	no
bus	db4106	abc_db4106	no
bus	sio	abcsio	no
bus	abc894	abc894	no
bus:abc832:7ab:0	525qd	floppy_525_qd	yes
bus:abc832:7ab:0	525dd	floppy_525_dd	no
bus:abc832:7ab:0	525sd	floppy_525_sd	no
bus:abc832:7ab:0	8dsdd	floppy_8_dsdd	no
bus:abc832:7ab:0	525ssdd	floppy_525_ssdd	no
bus:abc832:7ab:0	525sssd	floppy_525_sssd	no
bus:abc832:7ab:1	525qd	floppy_525_qd	yes
bus:abc832:7ab:1	525dd	floppy_525_dd	no
bus:abc832:7ab:1	525sd	floppy_525_sd	no
bus:abc832:7ab:1	8dsdd	floppy_8_dsdd	no
bus:abc832:7ab:1	525ssdd	floppy_525_ssdd	no
bus:abc832:7ab:1	525sssd	floppy_525_sssd	no
kb	abc99	abc99	no
kb	abc77	abc77	yes
kb	abc55	abc55	no

dipswitch

Serial Communications

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Serial Communications	SB	255

location

name	number	inverted
SB	1	no
SB	2	no
SB	3	no
SB	4	no
SB	5	no
SB	6	no
SB	7	no
SB	8	no

value

name	value	default
Asynchronous, Single Speed	170	yes
Asynchronous, Split Speed	46	no
Synchronous	80	no
ABC NET	139	no

Interface Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Interface Type	bus:abc832:S1	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
ABC 1600	0	no
ABC 80/800/802/806	1	yes

RAM Size

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
RAM Size	bus:abc832:S6	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 KB	0	no
8 KB	1	yes

Drive Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Drive Type	bus:abc832:S8	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8"	0	no
5.25"	1	yes

RDY Pin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
RDY Pin	bus:abc832:S9	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
P2-6 (8")	0	no
P2-34 (5.25")	1	yes

Drive 0 Sides

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Drive 0 Sides	bus:abc832:SW1	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Single	1	no
Double	0	yes

Drive 1 Sides

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Drive 1 Sides	bus:abc832:SW1	2

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Single	2	no
Double	0	yes

Drive 0 Tracks

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Drive 0 Tracks	bus:abc832:SW1	4

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
40	0	no
80	4	yes

Drive 1 Tracks

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Drive 1 Tracks	bus:abc832:SW1	8

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
40	0	no
80	8	yes

Drive Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Drive Type	bus:abc832:SW2	15

location

name	number	inverted
SW2	1	no
SW2	2	no
SW2	3	no
SW2	4	no

value

name	value	default
Micropolis 1015F	3	no
BASF 6118	4	yes
Micropolis 1115F	5	no

Card Address

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Card Address	bus:abc832:SW3	127

location

name	number	inverted
SW3	1	no
SW3	2	no
SW3	3	no
SW3	4	no
SW3	5	no
SW3	6	no
SW3	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
44	44	yes

Keyboard Program

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Keyboard Program	kb:abc77:DSW	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Internal (8048)	0	no
External PROM	1	yes

Character Set

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Character Set	kb:abc77:DSW	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Swedish	2	yes
US ASCII	0	no

External Encoding PROM

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
External Encoding PROM	kb:abc77:DSW	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Keyboard Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Keyboard Language	kb:abc77:DSW	24	DSW	4	eq	0

value

name	value	default
Danish	0	no
French	16	no
German	8	no
Spanish	24	yes
