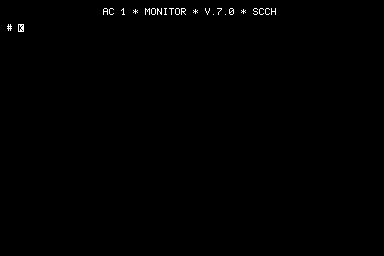

Amateurcomputer AC1 SCCH - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
ac1scch	ddr/ac1.cpp		no	no	no	yes	Amateurcomputer AC1 SCCH	1984	Frank Heyder	ac1	ac1

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	384	256	50.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
mon_v7.bin	4096	fd17b0cf	e47113025bd9dadc1522425e21703f43e584b00f	maincpu	0	good	no		v7
mon_v8.bin	4096	5af68da5	e760d4400b9c937e7e789d52b8ec975ff253a122	maincpu	0	good	no		v8
mon_v10.bin	4096	f8e67ecb	7953676fc8c22824ceff464c7177e9ac0343b8ce	maincpu	0	good	no		v10
mon_v1088.bin	4096	bbb0a6df	de9389e142541a8b5ff238b59e98bf571c794bef	maincpu	0	good	no		v1088
zg_scch.bin	2048	fbfaf5da	667568c5909e9a17675cf09dfbce2fc090c420ab	gfx1	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	2000000
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	cassette	Cassette

device_ref

name
z80
z80pio
z80ctc
z80ctc_channel
z80ctc_channel
z80ctc_channel
z80ctc_channel
screen
gfxdecode
palette
speaker
speaker_sound_device
cassette_image
z80pio

biosset

name	description	default
v7	Version 7	no
v8	Version 8	no
v10	Version 10	no
v1088	Version 10/88	no

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cassette	cassette				cassette	cass

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cassette	cassette				wav, flac

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keyboard		53		no

port, analog

port_tag	analog_masks
:LINE.0
:LINE.1
:LINE.2
:LINE.3
:LINE.4
:LINE.5
:LINE.6
