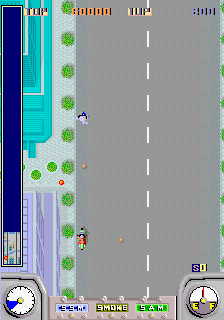

Action Fighter (unprotected, analog controls) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
afighterb	sega/segas16a.cpp		no	no	no	yes	Action Fighter (unprotected, analog controls)	1986	Sega	afighter	afighter

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	320	224	60.000000	5376240	342	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
epr10293.bin	32768	186ae21a	65bff753b7ed7b3b03cc70634df9f2ff0d233323	maincpu	1	good	no
epr10296.bin	32768	7370e889	d240defae86e97467002e549d213359c3e23ec54	maincpu	0	good	no
epr10294.bin	32768	07522474	1a4bce4c04defab3516a90b9fa62fad1945a1176	maincpu	10001	good	no
epr10297.bin	32768	e48c4d80	9c40972f81e004de84db4199e7dc0ceb6a998e76	maincpu	10000	good	no
epr10295.bin	32768	a940fde6	7b7c2b904ae83dfb9e9ac0855e30408234fe371f	maincpu	20001	good	no
epr10298.bin	32768	f6bab36e	1e7a0403de5ede8055507274bd43ea7ab1219f27	maincpu	20000	good	no
epr-10281.95	65536	30e92cda	36293a2a8a22dca5350571f19f3d5d04e1b27458	gfx1	0	good	no	epr-10281.95
epr-10282.94	65536	b67b8910	f3f029a3e6547114cec28e5cf8fda65ef434c353	gfx1	10000	good	no	epr-10282.94
epr-10283.93	65536	e7dbfd2d	91bae3fbc4a3c612dc507eecfa8de1c2e1e7afee	gfx1	20000	good	no	epr-10283.93
epr-10285	32768	98aa3d04	1d26d17a72e55281e3444fee9c5af69ffb9e3c69	sprites	1	good	no	epr-10285
epr-10286	32768	8da050cf	c28e8968dbd9c110672581f4486f70d5f45df7f5	sprites	10001	good	no	epr-10286
epr-10287	32768	7989b74a	a87acafe82b37a11d8f8b1f2ee4c9b2e1bb8161c	sprites	20001	good	no	epr-10287
epr-10288	32768	d3ce551a	0ff2170d9ef89058273025dd8d5e1021094adef1	sprites	30001	good	no	epr-10288
epr-10289	32768	c59d1b98	e232f2519234981c0e4ffecdd25c48083d9f93a8	sprites	0	good	no	epr-10289
epr-10290	32768	39354223	d8a73d3f7fc2d83d23bb7434f43bc8804f35cc16	sprites	10000	good	no	epr-10290
epr-10291	32768	6e4b245c	1f8cecf7ea2d2dfa5ce18d7ee34b0da2cc40221e	sprites	20000	good	no	epr-10291
epr-10292	32768	cef289a3	7ab817b6348c168f79be325fb3cc2cca14ee0f8e	sprites	30000	good	no	epr-10292
epr-10284.12	32768	8ff09116	8b99b6d2499897cfbd037a7e7cf5bc53bce8a63a	soundcpu	0	good	no	epr-10284.12

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	soundcpu	Zilog Z80	4000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	4000000

device_ref

name
m68000
z80
nvram
watchdog
i8255
screen
sega_sys16a_sprite
segaic16_video
gfxdecode
palette
speaker
generic_latch_8
ym2151

sound

channels
1

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
paddle		4		no	0	255	100	4
pedal				no	0	255	100	20

port, analog

port_tag	analog_masks
:ACCEL	255
:DSW1
:DSW2
:P1
:P2
:SERVICE
:STEER	255
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	0	yes
Cocktail	1	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW2	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	8	no
3	12	yes
4	4	no
Infinite	0	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW2	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10000 - 20000	48	yes
20000 - 40000	32	no
30000 - 60000	16	no
40000 - 80000	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	64	yes
Hard	0	no

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	128	yes
