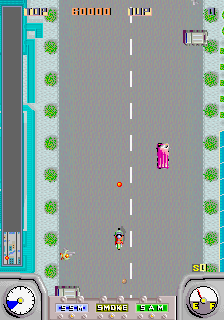

Action Fighter (System 16B, unprotected, analog controls) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
afightere	sega/segas16b.cpp		no	no	no	yes	Action Fighter (System 16B, unprotected, analog controls)	1986	Sega	afighter	afighter

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
epr10269.bin	32768	688b4ff7	8972b75b6fa72513a6ebb3a5ed5988a43f1b6266	maincpu	1	good	no
epr10272.bin	32768	bc3b75b6	54c2be1cc4833ef7a18c4023e511654737d554c9	maincpu	0	good	no
epr10270.bin	32768	53fab467	62617b2bd097a9754c509ce0ca7baaa8dd63401b	maincpu	10001	good	no
epr10273.bin	32768	0ca74019	ab7337e777ac162ff17b72096e4f619362339279	maincpu	10000	good	no
epr10271.bin	32768	d0d73af5	7d13858c50bd5fa2b5ae4650747d3e237567281b	maincpu	20001	good	no
epr10274.bin	32768	d2601561	0f2a97491aae859102d3ed80377b0c5fe4a0f4d8	maincpu	20000	good	no
epr10048.bin	65536	643ca883	dd2ffdeca5b06992fe71e5a9e59dcadf98f9e888	gfx1	0	good	no
epr10049.bin	65536	f8b5058b	ff62c220200e23c2f35f657175c0cd5123b6a1ba	gfx1	10000	good	no
epr10050.bin	65536	0ffb48dd	2a88913ed177ec406ad7f788ab36ba12a8398a1b	gfx1	20000	good	no
epr10044.bin	32768	71d0db1f	db2766474fc1f160bf886f65894259dfce891ed7	sprites	0	good	no
epr10040.bin	32768	5a9f81f9	fedd427c95ccc8251bf713b6ae05c2efb74cd976	sprites	1	good	no
epr10045.bin	32768	39354223	d8a73d3f7fc2d83d23bb7434f43bc8804f35cc16	sprites	20000	good	no	epr-10290
epr10041.bin	32768	8da050cf	c28e8968dbd9c110672581f4486f70d5f45df7f5	sprites	20001	good	no	epr-10286
epr10046.bin	32768	b49b3136	afb992acf4529204419707f0870e9a259e6fe00f	sprites	40000	good	no
epr10042.bin	32768	dd706d18	95c10f7ca29898f531bf8e3c0e8c9d0484d96b4a	sprites	40001	good	no
epr10047.bin	32768	84a49518	4f3c89d8f736889931ec09af3694d3891371c9e4	sprites	60000	good	no
epr10043.bin	32768	645ccfb9	84ba9a33bbf4ecc9909f543e798a2b3687872a71	sprites	60001	good	no
epr10039.bin	32768	b04757b0	24bface5a23ed658675f414c9937bf9d7f7ed5ec	soundcpu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	soundcpu	Zilog Z80	5000000
audio	mono	Speaker
audio	ym2151	YM2151 OPM	4000000
audio	upd	NEC uPD7759	640000
audio	netlist	Netlist Sound Device

device_ref

name
m68000
z80
nvram
sega_315_5195
gfxdecode
palette
screen
sega_sys16b_sprite
segaic16_video
speaker
ym2151
upd7759
netlist_sound
nl_stream_in
nl_stream_in
nl_stream_in
nl_stream_out

sound

channels
1

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
paddle		4		no	0	255	100	4
pedal				no	0	255	100	20

port, analog

port_tag	analog_masks
:ACCEL	255
:DSW1
:DSW2
:P1
:P2
:SERVICE
:STEER	255
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	0	yes
Cocktail	1	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW2	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	8	no
3	12	yes
4	4	no
Infinite	0	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW2	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10000 - 20000	48	yes
20000 - 40000	32	no
30000 - 60000	16	no
40000 - 80000	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	64	yes
Hard	0	no

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	128	yes
