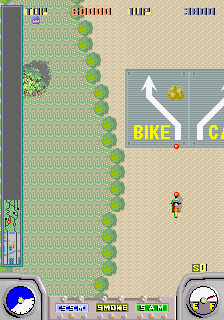

Action Fighter (System 16B, FD1089B 317-unknown) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
afighterg	sega/segas16b.cpp		no	no	no	yes	Action Fighter (System 16B, FD1089B 317-unknown)	1986	Sega	afighter	afighter

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
epr10160.bin	32768	86f020da	e7ac4b70dc375d9e2491f1a90ae154699e7627a2	maincpu	1	good	no
epr10163.bin	32768	6d62eccd	a400850f717a71a3e0059173d77f0bd067f1b520	maincpu	0	good	no
epr10161.bin	32768	423e983e	4437d4988c52b5033611ee4d6b4c50955ba70200	maincpu	10001	good	no
epr10164.bin	32768	3a312b9e	ea371474b0ca5ead93b788e17192f80e6c8cf939	maincpu	10000	good	no
epr10162.bin	32768	a20acfd5	2158deade6188ec7400423c5aa9634b37169c5a9	maincpu	20001	good	no
epr10165.bin	32768	cc68a82d	ada7761076dfa9ab734a16382b55415929c39671	maincpu	20000	good	no
epr10048.bin	65536	643ca883	dd2ffdeca5b06992fe71e5a9e59dcadf98f9e888	gfx1	0	good	no
epr10049.bin	65536	f8b5058b	ff62c220200e23c2f35f657175c0cd5123b6a1ba	gfx1	10000	good	no
epr10050.bin	65536	0ffb48dd	2a88913ed177ec406ad7f788ab36ba12a8398a1b	gfx1	20000	good	no
epr10044.bin	32768	71d0db1f	db2766474fc1f160bf886f65894259dfce891ed7	sprites	0	good	no
epr10040.bin	32768	5a9f81f9	fedd427c95ccc8251bf713b6ae05c2efb74cd976	sprites	1	good	no
epr10045.bin	32768	39354223	d8a73d3f7fc2d83d23bb7434f43bc8804f35cc16	sprites	20000	good	no	epr-10290
epr10041.bin	32768	8da050cf	c28e8968dbd9c110672581f4486f70d5f45df7f5	sprites	20001	good	no	epr-10286
epr10046.bin	32768	b49b3136	afb992acf4529204419707f0870e9a259e6fe00f	sprites	40000	good	no
epr10042.bin	32768	dd706d18	95c10f7ca29898f531bf8e3c0e8c9d0484d96b4a	sprites	40001	good	no
epr10047.bin	32768	84a49518	4f3c89d8f736889931ec09af3694d3891371c9e4	sprites	60000	good	no
epr10043.bin	32768	645ccfb9	84ba9a33bbf4ecc9909f543e798a2b3687872a71	sprites	60001	good	no
epr10039.bin	32768	b04757b0	24bface5a23ed658675f414c9937bf9d7f7ed5ec	soundcpu	0	good	no
317-0018.key	8192	65b5b1af	9a236c0c223064f9a2a56561e10b9ffed0f567a3	maincpu:key	0	good	no	317-0018.key

chip

type	tag	name	clock
cpu	maincpu	Hitachi FD1089B Encrypted CPU	10000000
cpu	soundcpu	Zilog Z80	5000000
audio	mono	Speaker
audio	ym2151	YM2151 OPM	4000000
audio	upd	NEC uPD7759	640000
audio	netlist	Netlist Sound Device

device_ref

name
fd1089b
z80
nvram
sega_315_5195
gfxdecode
palette
screen
sega_sys16b_sprite
segaic16_video
speaker
ym2151
upd7759
netlist_sound
nl_stream_in
nl_stream_in
nl_stream_in
nl_stream_out

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	0	yes
Cocktail	1	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW2	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	8	no
3	12	yes
4	4	no
Infinite	0	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW2	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10000 - 20000	48	yes
20000 - 40000	32	no
30000 - 60000	16	no
40000 - 80000	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	64	yes
Hard	0	no

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	128	yes
