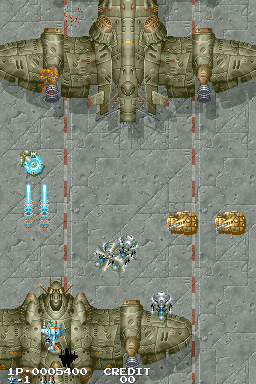

Air Duel (World, M72 hardware) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
airduelm72	irem/m72.cpp		no	no	no	yes	Air Duel (World, M72 hardware)	1990	Irem	airduel	airduel

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	384	256	55.017606	8000000	512	64	448	284	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
ad_c-h0-c.ic40	131072	6467ed0f	3b6db463168edec0e42247e4d913d9d7615061c1	maincpu	1	good	no
ad_c-l0-c.ic37	131072	b90c4ffd	c95998244c52e95f6612013c23051b293423946f	maincpu	0	good	no
ad_c-h3-.ic43	131072	9f7cfca3	becf827aa7749c54f1c435ea224e1fd9c8b3f5f9	maincpu	40001	good	no
ad_c-l3-.ic34	131072	9dd343f7	9f499936b6d3807aa5b5c18e9811c73c9a2c99f9	maincpu	40000	good	no
ad_c-pr-c.ic1	4096	8785e4e2	491f5646e1c5d68453086f05b9d79722eb5282ea	mcu	0	good	no
ad-00.ic53	131072	2f0d599b	a966f806b5e25bb98cc63c46c49e0e676a62afcf	sprites	0	good	no	ad_=m82=_b-n0-d.ic44
ad-10.ic51	131072	9865856b	b18a06899ae29d45e2351594df544220f3f4485a	sprites	20000	good	no	ad_=m82=_b-n1-d.ic45
ad-20.ic49	131072	d392aef2	0f639a07066cadddc3884eb490885a8745571567	sprites	40000	good	no	ad_=m82=_b-n2-d.ic46
ad-30.ic47	131072	923240c3	f587a83329087a715a3e42110f74f104e8c8ef1f	sprites	60000	good	no	ad_=m82=_b-n3-d.ic36
ad-a0.ic21	131072	ce134b47	841358cc222c81b8a91edc262f355310d50b4dbb	tiles0	0	good	no	ad_=m82=_a-c0-d.ic49
ad-a1.ic22	131072	097fd853	8e08f4f4a747c899bb8e21b347635e26af9edc2d	tiles0	20000	good	no	ad_=m82=_a-c1-d.ic48
ad-a2.ic20	131072	6a94c1b9	55174acbac54236e5fc1b80d120cd6da9fe5524c	tiles0	40000	good	no	ad_=m82=_a-c2-d.ic57
ad-a3.ic23	131072	6637c349	27cb7c89ab73292b43f8ae3c0d803a01ef3d3936	tiles0	60000	good	no	ad_=m82=_a-c3-d.ic56
ad-b0.ic26	131072	ce134b47	841358cc222c81b8a91edc262f355310d50b4dbb	tiles1	0	good	no	ad_=m82=_a-c0-d.ic49
ad-b1.ic27	131072	097fd853	8e08f4f4a747c899bb8e21b347635e26af9edc2d	tiles1	20000	good	no	ad_=m82=_a-c1-d.ic48
ad-b2.ic25	131072	6a94c1b9	55174acbac54236e5fc1b80d120cd6da9fe5524c	tiles1	40000	good	no	ad_=m82=_a-c2-d.ic57
ad-b3.ic24	131072	6637c349	27cb7c89ab73292b43f8ae3c0d803a01ef3d3936	tiles1	60000	good	no	ad_=m82=_a-c3-d.ic56
ad-v0.ic44	131072	339f474d	a81bb52598a0e31b2ed6a538755237c5d14d1844	samples	0	good	no	ad_=m82=_a-vo-d.ic12
m72_a-8l-.ic66	256	b460c438	00e20cf754b6fd5138ee4d2f6ec28dff9e292fe6	proms	0	good	no
m72_a-9l-.ic75	256	a4f2c4bc	f13b0a4b52dcc6704063b676f09d83dcba170133	proms	100	good	no
m72_a-3d-.ic11	279	8a3732ff	6e3039e7dc424cbef7156312fa1ce67d7b082d30	pals	0	good	no
m72_a-4d-.ic19	279	56c29834	a66c589845f9995c673325f1161c687eb90d68c1	pals	200	good	no
ad_c-3f-.ic13	279	9748fa38	cc883dd801be03f2559c0dcd77580fe7d9546ed3	pals	400	good	no

chip

type	tag	name	clock
cpu	maincpu	NEC V30	8000000
cpu	soundcpu	Zilog Z80	3579545
cpu	mcu	Intel 8751	8000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	3579545
audio	dac	8-Bit R-2R DAC

device_ref

name
v30
z80
pic8259
buffered_spriteram16
gfxdecode
palette
screen
speaker
generic_latch_8
rst_neg_buffer
m72_audio
ym2151
dac_8bit_r2r
mb8421_mb8431_16
generic_latch_8
generic_latch_8
i8751

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	4	8	no
joy	2	4	8	no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1

dipswitch

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW	3

location

name	number	inverted
SW1	1	no
SW1	2	no

value

name	value	default
2	2	no
3	3	yes
4	1	no
5	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	12

location

name	number	inverted
SW1	3	no
SW1	4	no

value

name	value	default
Very Easy	0	no
Easy	8	no
Normal	12	yes
Hard	4	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	16

location

name	number	inverted
SW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	32

location

name	number	inverted
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	64

location

name	number	inverted
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	no
On	0	yes

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW	128

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW	256

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	512

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	512	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	1024

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1024	yes
On	0	no

Coin Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Mode	DSW	2048

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mode 1	2048	yes
Mode 2	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW	12288	DSW	2048	eq	0

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default
5 Coins/1 Credit	0	no
3 Coins/1 Credit	4096	no
2 Coins/1 Credit	8192	no
1 Coin/1 Credit	12288	yes

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW	49152	DSW	2048	eq	0

location

name	number	inverted
SW2	7	no
SW2	8	no

value

name	value	default
1 Coin/2 Credits	49152	yes
1 Coin/3 Credits	32768	no
1 Coin/5 Credits	16384	no
1 Coin/6 Credits	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	61440	DSW	2048	ne	0

location

name	number	inverted
SW2	5	no
SW2	6	no
SW2	7	no
SW2	8	no

value

name	value	default
6 Coins/1 Credit	40960	no
5 Coins/1 Credit	45056	no
4 Coins/1 Credit	49152	no
3 Coins/1 Credit	53248	no
2 Coins/1 Credit	57344	no
3 Coins/2 Credits	12288	no
4 Coins/3 Credits	8192	no
1 Coin/1 Credit	61440	yes
2 Coins/3 Credits	16384	no
1 Coin/2 Credits	36864	no
1 Coin/3 Credits	32768	no
1 Coin/4 Credits	28672	no
1 Coin/5 Credits	24576	no
1 Coin/6 Credits	20480	no
Free Play	0	no
