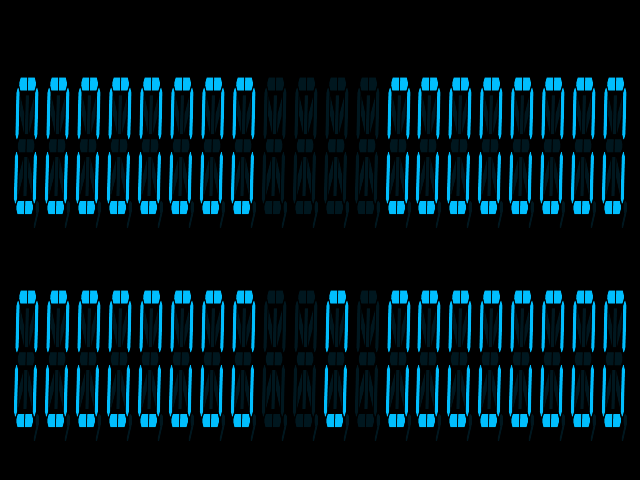

Arena (German) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
arenag	pinball/gts80b.cpp	genpin	no	no	yes	yes	Arena (German)	1987	Gottlieb	arena	arena

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
prom2g.cpu	2048	e170d1cd	bd7919eb9e480309f794ac25a371c7b818dcd01b	maincpu	1000	good	no
prom1g.cpu	8192	71fd6e48	5c87ba79968085d386fd1357c9d8b2b7a745682a	maincpu	2000	good	no
drom1.snd	8192	78e6cbf1	7b66a0cb211a93cf475172aa0465a952009e1a59	r2sound:audiocpu	c000	good	no	drom1.snd
yrom1.snd	8192	f7a951c2	12d7a6119d9033ae02c6312c9af888bfc7c63ad1	r2sound:speechcpu	e000	good	no	yrom1.snd
yrom2.snd	8192	cc2aef4e	a6e243de99f6a76eb527e879f4441c036dd379b6	r2sound:speechcpu	c000	good	no	yrom2.snd

chip

type	tag	name	clock
cpu	maincpu	MOS Technology 6502	894886
cpu	r2sound:audiocpu	MOS Technology 6502	1000000
cpu	r2sound:speechcpu	MOS Technology 6502	1000000
audio	mechvol	Speaker
audio	samples	Samples
audio	mono	Speaker
audio	r2sound	Gottlieb Sound rev. 2
audio	r2sound:dac	AD7528 DAC
audio	r2sound:dacvol	AD7528 DAC
audio	r2sound:ay1	AY-3-8913 PSG	2000000
audio	r2sound:ay2	AY-3-8913 PSG	2000000
audio	r2sound:spsnd	GI SP0250 LPC	3120000

device_ref

name
m6502
nvram
mos6532
mos6532
mos6532
ipt_merge_any_hi
speaker
samples
speaker
gotsndr2
m6502
m6502
ad7528
ad7528
ay8913
ay8913
sp0250

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		60		no

port, analog

port_tag	analog_masks
:DSW0
:DSW1
:DSW2
:DSW3
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
:X8
:r2sound:SB2

dipswitch

SW 08

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 08	DSW0	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	1	yes

SW 07

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 07	DSW0	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	2	yes

SW 06

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 06	DSW0	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	4	yes

SW 05

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 05	DSW0	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	8	yes

SW 04

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 04	DSW0	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	16	yes

SW 03

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 03	DSW0	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	32	yes

SW 02

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 02	DSW0	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	64	yes

SW 01

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 01	DSW0	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	128	yes

SW 16

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 16	DSW1	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	yes
Off	1	no

SW 15

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 15	DSW1	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	yes
Off	2	no

SW 14

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 14	DSW1	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	yes
Off	4	no

SW 13

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 13	DSW1	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	8	yes

SW 12

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 12	DSW1	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	16	yes

SW 11

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 11	DSW1	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	32	yes

SW 10

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 10	DSW1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	64	yes

SW 09

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 09	DSW1	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	128	yes

SW 24

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 24	DSW2	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	yes
Off	1	no

SW 23

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 23	DSW2	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	yes
Off	2	no

SW 22

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 22	DSW2	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	4	yes

SW 21

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 21	DSW2	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	8	yes

SW 20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 20	DSW2	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	16	yes

SW 19

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 19	DSW2	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	32	yes

SW 18

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 18	DSW2	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	64	yes

SW 17

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 17	DSW2	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	128	yes

SW 32

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 32	DSW3	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	1	yes

SW 31

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 31	DSW3	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	2	yes

SW 30

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 30	DSW3	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	4	yes

SW 29

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 29	DSW3	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	8	yes

SW 28

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 28	DSW3	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	16	yes

SW 27

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 27	DSW3	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	32	yes

SW 26

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 26	DSW3	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	yes
Off	64	no

SW 25

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SW 25	DSW3	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	yes
Off	128	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	r2sound:SB2	16

location

name	number	inverted
SB2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	r2sound:SB2	32

location

name	number	inverted
SB2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Sound Test

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sound Test	r2sound:SB2	64

location

name	number	inverted
SB2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no
