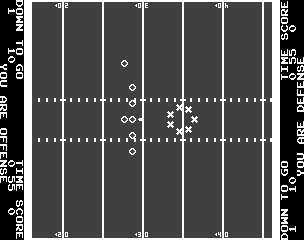

Atari Football (revision 1) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
atarifb1	atari/atarifb.cpp		no	no	no	yes	Atari Football (revision 1)	1978	Atari	atarifb	atarifb

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	304	240	60.114504	6048000	384	0	304	262	8	248	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
03302601.m1	2048	f8ce7ed8	54520d7d31c6c8f9028b7253a33aba3b2c35ae7c	maincpu	6800	good	no
03302801.p1	2048	a79c79ca	7791b431e9aadb09fd286ae56699c4beda54830a	maincpu	7000	good	no	03302801.p1
03302701.n1	2048	7740be51	3f610061f081eb5589b00a496877bc58f6e0f09f	maincpu	7800	good	no
033029.n7	1024	12f43dca	a463f5068d5522ddf74052429aa6da23e5475844	gfx1	0	good	no	033029.n7
033030.c5	512	eac9ef90	0e6284392852695ab7323be82105d32f57ad00f1	gfx2	0	good	no	033030.c5
033031.d5	512	89d619b8	0af5d1f4e6f9a377dc2d49a8039866b1857af01f	gfx2	0	good	no	033031.d5

chip

type	tag	name	clock
cpu	maincpu	MOS Technology 6502	756000
audio	mono	Speaker
audio	discrete	Discrete Sound

device_ref

name
m6502
timer
watchdog
screen
gfxdecode
palette
pwm_display
speaker
discrete

sound

channels
1

input

players	coins	service	tilt
2	2	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
trackball	1	1		yes	0	255	100	10
trackball	2	1		yes	0	255	100	10

port, analog

port_tag	analog_masks
:IN0
:IN1
:IN2	255
:IN3	255
:IN4	255
:IN5	255

dipswitch

Time Per Coin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Time Per Coin	IN1	3

location

name	number	inverted
K10	1	no
K10	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1:30	0	yes
2:00	1	no
2:30	2	no
3:00	3	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	IN1	4

location

name	number	inverted
K10	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Atari Logo

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Atari Logo	IN1	8

location

name	number	inverted
K10	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no
