Atari Football (revision 2) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
atarifb	atari/atarifb.cpp		no	no	no	yes	Atari Football (revision 2)	1978	Atari

snap

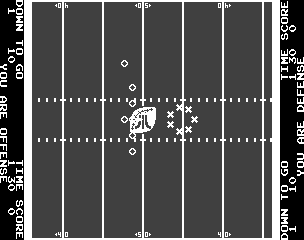

Atari Football (revision 2) png snap

Atari Football (revision 2) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
atarifb	2861	29/12/2025 11:31:16	304	240	96	96	0	Format24bppRgb	305:MAME 0.139u3 (Sep 20 2010)	284d1e1fc59689140c5e03e9a49cc702df3c685c

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	304	240	60.114504	6048000	384	0	304	262	8	248	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
03302602.m1	2048	352e35db	ae3f1bdb274858edf203dbffe4ba2912c065cff2	maincpu	6800	good	no
03302801.p1	2048	a79c79ca	7791b431e9aadb09fd286ae56699c4beda54830a	maincpu	7000	good	no
03302702.n1	2048	e7e916ae	d3a188809e83c311699cb103040c4525b36a56e3	maincpu	7800	good	no
033029.n7	1024	12f43dca	a463f5068d5522ddf74052429aa6da23e5475844	gfx1	0	good	no
033030.c5	512	eac9ef90	0e6284392852695ab7323be82105d32f57ad00f1	gfx2	0	good	no
033031.d5	512	89d619b8	0af5d1f4e6f9a377dc2d49a8039866b1857af01f	gfx2	0	good	no

chip

type	tag	name	clock
cpu	maincpu	MOS Technology 6502	756000
audio	mono	Speaker
audio	discrete	Discrete Sound

device_ref

tag	name
:maincpu	m6502
:irq_timer	timer
:watchdog	watchdog
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:led_pwm	pwm_display
:mono	speaker
:discrete	discrete

sound

channels
1

input

players	coins	service	tilt
2	2	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
trackball	1	1		yes	0	255	100	10
trackball	2	1		yes	0	255	100	10

port, analog

port_tag	analog_masks
:IN0
:IN1
:IN2	255
:IN3	255
:IN4	255
:IN5	255

dipswitch

Time Per Coin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Time Per Coin	IN1	3

location

name	number	inverted
K10	1	no
K10	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1:30	0	yes
2:00	1	no
2:30	2	no
3:00	3	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	IN1	4

location

name	number	inverted
K10	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Atari Logo

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Atari Logo	IN1	8

location

name	number	inverted
K10	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

clones

name	description
amerug	Amerug (Shoei bootleg of Atari Football)
atarifb4	Atari 4 Player Football
atarifb1	Atari Football (revision 1)
atarifb2	Atari Football II
