Atari Football II - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
atarifb2	atari/atarifb.cpp		no	no	no	yes	Atari Football II	1978	Atari	atarifb	atarifb

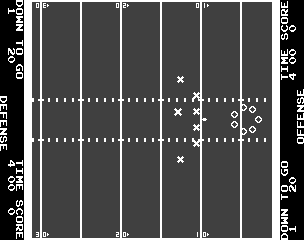

snap

Atari Football II png snap

Atari Football II jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
atarifb2	3427	29/12/2025 11:31:16	304	240	96	96	0	Format24bppRgb	305:MAME 0.157 (Dec 31 2014)	273da85ec20f49ddd01b30d5a17000249315f3d2

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	304	240	60.114504	6048000	384	0	304	262	8	248	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
035348-01.m1	2048	eec61633	e578f9392d18a5dbcb678c4e922da10c87ff6670	maincpu	6800	good	no
035350-01.p1	2048	e3ec76d6	2b9b544e7bf1624e6d0ec1fdc7b9d096bae87b30	maincpu	7000	good	no
035349-01.n1	2048	c1e9d379	77320dd8b74447cc55ba1cc3a50e7a9085f96c76	maincpu	7800	good	no
033029.n7	1024	12f43dca	a463f5068d5522ddf74052429aa6da23e5475844	gfx1	0	good	no	033029.n7
033030.c5	512	eac9ef90	0e6284392852695ab7323be82105d32f57ad00f1	gfx2	0	good	no	033030.c5
033031.d5	512	89d619b8	0af5d1f4e6f9a377dc2d49a8039866b1857af01f	gfx2	0	good	no	033031.d5

chip

type	tag	name	clock
cpu	maincpu	MOS Technology 6502	756000
audio	mono	Speaker
audio	discrete	Discrete Sound

device_ref

tag	name
:maincpu	m6502
:irq_timer	timer
:watchdog	watchdog
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:led_pwm	pwm_display
:mono	speaker
:discrete	discrete

sound

channels
1

input

players	coins	service	tilt
2	2	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
trackball	1	1		yes	0	255	100	10
trackball	2	1		yes	0	255	100	10

port, analog

port_tag	analog_masks
:IN0
:IN1
:IN2	255
:IN3	255
:IN4	255
:IN5	255

dipswitch

Time Per Coin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Time Per Coin	IN1	3

location

name	number	inverted
K10	1	no
K10	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1:30	0	yes
2:00	1	no
2:30	2	no
3:00	3	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	IN1	4

location

name	number	inverted
K10	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Atari Logo

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Atari Logo	IN1	8

location

name	number	inverted
K10	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no
