Bay Route (set 3, World) (FD1094 317-0116) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
bayroute	sega/segas16b.cpp		no	no	no	yes	Bay Route (set 3, World) (FD1094 317-0116)	1989	Sunsoft / Sega

snap

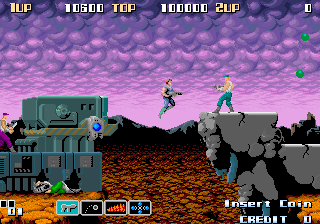

Bay Route (set 3, World) (FD1094 317-0116) png snap

Bay Route (set 3, World) (FD1094 317-0116) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
bayroute	13416	29/12/2025 11:31:16	320	224	96	96	0	Format24bppRgb	305:MAME 0.144u4 (Dec 24 2011)	c2dae5c472766d18a4e535b288d010fa9a877c34

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
epr-12517.a7	131072	436728a9	0f6753493ad2c1776880862b462f10ef936a9ee5	maincpu	0	good	no
epr-12516.a5	131072	4ff0353f	f5960f9e80e42d0a3f82d6670b1f2e39b51ffcef	maincpu	1	good	no
epr-12458.a8	131072	e7c7476a	7b724d76bdc1978ddf78489edfda14533905a360	maincpu	40000	good	no
epr-12456.a6	131072	25dc2eaf	dda300840b9a90bcce7be16ff1904a7a0456c396	maincpu	40001	good	no
317-0116.key	8192	8778ee49	870923d8380199edfe91bbc407631d72c864de68	maincpu:key	0	good	no
opr-12462.a14	65536	a19943b5	95cd95223ea76677227b807a7c4eff120e690d37	tiles	0	good	no
opr-12463.a15	65536	62f8200d	a5a0035249f339396b33f8a908d393777e8951c4	tiles	10000	good	no
opr-12464.a16	65536	c8c59703	3a4f45b88990d27c55ddfde5fc93496954868200	tiles	20000	good	no
mpr-12465.b1	131072	11d61b45	01678e07ffcafb8c161b52763f2183dc281c7578	sprites	1	good	no
mpr-12467.b5	131072	c3b4e4c0	2d8dbea5278b3fac03c7ad8749f931d36cc8f341	sprites	0	good	no
mpr-12466.b2	131072	a57f236f	c83219cdfcee10a4fdffcbf410808f161a2b1aef	sprites	40001	good	no
mpr-12468.b6	131072	d89c77de	0e903bf57a7515291dda7e11bdef982a1417043a	sprites	40000	good	no
epr-12459.a10	32768	3e1d29d0	fe3d985983e5132e8a26a02a3f2d8d420cbf1a49	soundcpu	0	good	no
mpr-12460.a11	131072	0bae570d	05fa4a3405666342ab66e696a7344cca97569f19	soundcpu	10000	good	no
mpr-12461.a12	131072	b03b8b46	b0283ac377d464f3d9374a992192ec6c515a3c2f	soundcpu	30000	good	no
315-5298.b9	235	39b47212	432b47aee5ecbf08a8a6dc2f8379c816feb86328	plds	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi FD1094 Encrypted CPU	10000000
cpu	soundcpu	Zilog Z80	5000000
audio	mono	Speaker
audio	ym2151	YM2151 OPM	4000000
audio	upd	NEC uPD7759	640000
audio	netlist	Netlist Sound Device

device_ref

tag	name
:maincpu	fd1094
:soundcpu	z80
:nvram	nvram
:mapper	sega_315_5195
:gfxdecode	gfxdecode
:palette	palette
:screen	screen
:sprites	sega_sys16b_sprite
:segaic16vid	segaic16_video
:mono	speaker
:ym2151	ym2151
:upd	upd7759
:netlist	netlist_sound
:netlist:cin0	nl_stream_in
:netlist:cin1	nl_stream_in
:netlist:cin2	nl_stream_in
:netlist:cout0	nl_stream_out

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
3 Coins/4 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
3 Coins/4 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW2	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	4	no
3	12	yes
5	8	no
Free Play	0	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW2	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100k	48	yes
150k	32	no
200k	16	no
None	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	192

location

name	number	inverted
SW2	7	no
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	192	no
Normal	128	yes
Hard	64	no
Hardest	0	no

clones

name	description
bayrouteb2	Bay Route (Datsu bootleg)
bayrouteb1	Bay Route (encrypted, protected bootleg)
bayroute1	Bay Route (set 1, US) (unprotected)
bayroutejd	Bay Route (set 2, Japan) (bootleg of FD1094 317-0115 set)
bayroutej	Bay Route (set 2, Japan) (FD1094 317-0115)
bayrouted	Bay Route (set 3, World) (bootleg of FD1094 317-0116 set)
