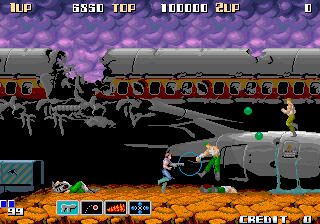

Bay Route (set 1, US) (unprotected) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
bayroute1	sega/segas16b.cpp		no	no	no	yes	Bay Route (set 1, US) (unprotected)	1989	Sunsoft / Sega	bayroute	bayroute

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
br.a4	65536	91c6424b	79a968ade7690d5944ee815e19586cb82c3aa562	maincpu	0	good	no
br.a1	65536	76954bf3	bd617c6ddaf1e7760479b17205388c201fb67662	maincpu	1	good	no
br.a5	65536	9d6fd183	5ae78d33c0e929886d84a25c0fbd62ab45dcbff4	maincpu	20000	good	no
br.a2	65536	5ca1e3d2	51ce67ed0a0054f9c9c4ac56c5775716c44d74b1	maincpu	20001	good	no
br.a6	65536	ed97ad4c	6c7d671c3046f1adb486f053acdd2be0c981c68b	maincpu	40000	good	no
br.a3	65536	0d362905	04cb35aa44cc1d9ead44c5a7b4f838efec453c85	maincpu	40001	good	no
opr-12462.a14	65536	a19943b5	95cd95223ea76677227b807a7c4eff120e690d37	gfx1	0	good	no	opr-12462.a14
opr-12463.a15	65536	62f8200d	a5a0035249f339396b33f8a908d393777e8951c4	gfx1	10000	good	no	opr-12463.a15
opr-12464.a16	65536	c8c59703	3a4f45b88990d27c55ddfde5fc93496954868200	gfx1	20000	good	no	opr-12464.a16
br_obj0o.b1	65536	098a5e82	c5922f418773bc3629071e584457839d67a370e9	sprites	1	good	no
br_obj0e.b5	65536	85238af9	39989a8d9b60c6d55272b5e2c213341a563dd993	sprites	0	good	no
br_obj1o.b2	65536	cc641da1	28f8a6502702cb9e2cc7f3e98f6c5d201f462fa3	sprites	20001	good	no
br_obj1e.b6	65536	d3123315	16a87caed1cabb080d4f35935910b38797344ca5	sprites	20000	good	no
br_obj2o.b3	65536	84efac1f	41c43d70dc7ae7e361d6fa12c5790ea7ebf13ca8	sprites	40001	good	no
br_obj2e.b7	65536	b73b12cb	e8265ae90aabf1ee0522dbc6541a0f82fec97c7a	sprites	40000	good	no
br_obj3o.b4	65536	a2e238ac	c854774c0ffd1ccf6e46591a8fa3c80a4630e007	sprites	60001	good	no
br.b8	65536	d8de78ff	110661ab8008543b47629722b98d0470f73a48c5	sprites	60000	good	no
sound.a7	65536	e91e55cb	857242ab355736d7d77877bcf1d093c15c69992b	soundcpu	0	good	no
sound.a8	65536	077e9981	877c2ce9757410938e42b9bf512089bd2045d04e	soundcpu	10000	good	no
sound.a9	65536	3c3f5f41	f1b2e01586e65c542514c0a846ffc79767ff2166	soundcpu	20000	good	no
sound.a10	65536	7c251347	2b66365b2480e2852f930ddbed23d2ed80f2afaa	soundcpu	30000	baddump	no
sound.a11	65536	a602ea2d	37a4d05c416e8d65c4a2d73096edcfd456a0b70e	soundcpu	40000	baddump	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	soundcpu	Zilog Z80	5000000
audio	mono	Speaker
audio	ym2151	YM2151 OPM	4000000
audio	upd	NEC uPD7759	640000
audio	netlist	Netlist Sound Device

device_ref

name
m68000
z80
nvram
sega_315_5195
gfxdecode
palette
screen
sega_sys16b_sprite
segaic16_video
speaker
ym2151
upd7759
netlist_sound
nl_stream_in
nl_stream_in
nl_stream_in
nl_stream_out

sound

channels
1

feature

type	status	overall
sound	imperfect

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW2	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default
1	4	no
3	12	yes
5	8	no
Free Play	0	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW2	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default
100k	48	yes
150k	32	no
200k	16	no
None	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	192

location

name	number	inverted
SW2	7	no
SW2	8	no

value

name	value	default
Easy	192	no
Normal	128	yes
Hard	64	no
Hardest	0	no
