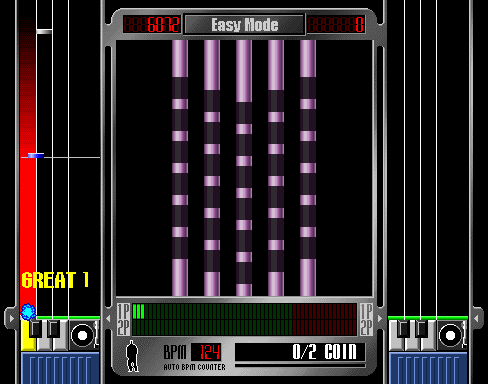

beatmania 3rd MIX (ver EA-A) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
bm3rdmixe	konami/djmain.cpp		no	no	no	yes	beatmania 3rd MIX (ver EA-A)	1998	Konami	bm3rdmix	bm3rdmix

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	488	384	57.996230	16000000	660	12	500	418	0	384	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
825eaa01.6a	524288	a7303584	222d1c469a72f17ea9316cfaf22ba965b24260d6	maincpu	0	good	no
825eaa02.8a	524288	45e65086	0daf53379d7c64b2819a0bdc192ee4ea72160643	maincpu	1	good	no
825eaa03.19a	524288	ecd62652	bceab4052dce2c843358f0a98aacc6e1124e3068	gfx1	0	good	no	825_a03.19a
825eaa04.20a	524288	437a576f	f30fd15d4f0d776e9b29ccfcd6e26861fb42e51a	gfx1	1	good	no	825_a04.20a
825eaa05.22a	524288	9f9a3369	d8b20127336af89b9e886289fb4f5a2e0db65f9b	gfx1	100000	good	no	825_a05.22a
825eaa06.24a	524288	e7a3991a	6c8cb481e721428e1365f784e97bb6f6d421ed5a	gfx1	100001	good	no	825_a06.24a
825eaa07.22d	524288	3a2fe19e	65c07a8471579cb20885a45af6a9f12c9f088625	k056832	0	good	no
825eaa08.23d	524288	98b16689	e2bebf40d098365e6757b83ffee924f9d3995d12	k056832	1	good	no
825eaa09.25d	524288	829000ca	f52494869cca78e7bc6125d329292eaa15fffed5	k056832	100000	good	no
825eaa10.27d	524288	345ee6e5	ce5d05b26900ed09fb3996a60edaf332e3acd720	k056832	100001	good	no

disk

name	merge	sha1	region	index	writable	status	optional
825jab11	825jab11	f506a83d43aeed87a7a32c3f7312d2a2b7d60d91	ata:0:hdd	0	yes	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68EC020	16000000
audio	speaker	Speaker
audio	k054539_1	Konami 054539 ADPCM	18432000
audio	k054539_2	Konami 054539 ADPCM	18432000

device_ref

name
m68ec020
ata_interface
ata_slot
idehd
harddisk_image
ata_slot
screen
palette
gfxdecode
k056832
k055555
speaker
k054539
k054539

sound

channels
1

feature

type	status	overall
sound		imperfect

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
harddisk	ata:0:hdd:image	ide_hdd,hdd			harddisk	hard

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
harddisk	ata:0:hdd:image	ide_hdd,hdd			chd, hd, hdv, 2mg, hdi

input

players	coins	service	tilt
2	1	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
dial	1	5		no	0	255	30	15
dial	2	5		no	0	255	30	15

port, analog

port_tag	analog_masks
:BTN1
:BTN2
:BTN3
:DSW1
:DSW2
:DSW3
:TT1	255
:TT2	255
:UNK1
:UNK2

dipswitch

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW1	31

location

name	number	inverted
SW1	8	no
SW1	7	no
SW1	6	no
SW1	5	no
SW1	4	no

value

name	value	default
1P 8C / 2P 16C / Continue 8C	0	no
1P 8C / 2P 16C / Continue 7C	1	no
1P 8C / 2P 16C / Continue 6C	2	no
1P 7C / 2P 14C / Continue 7C	3	no
1P 7C / 2P 14C / Continue 6C	4	no
1P 7C / 2P 14C / Continue 5C	5	no
1P 6C / 2P 12C / Continue 6C	6	no
1P 6C / 2P 12C / Continue 5C	7	no
1P 6C / 2P 12C / Continue 4C	8	no
1P 5C / 2P 10C / Continue 5C	9	no
1P 5C / 2P 10C / Continue 3C	11	no
1P 5C / 2P 10C / Continue 4C	10	no
1P 4C / 2P 8C / Continue 4C	12	no
1P 4C / 2P 8C / Continue 3C	13	no
1P 4C / 2P 8C / Continue 2C	14	no
1P 3C / 2P 6C / Continue 3C	15	no
1P 3C / 2P 6C / Continue 2C	16	no
1P 3C / 2P 6C / Continue 1C	17	no
1P 3C / 2P 4C / Continue 3C	18	no
1P 3C / 2P 4C / Continue 2C	19	no
1P 3C / 2P 4C / Continue 1C	20	no
1P 3C / 2P 3C / Continue 3C	21	no
1P 3C / 2P 3C / Continue 2C	22	no
1P 3C / 2P 3C / Continue 1C	23	no
1P 2C / 2P 3C / Continue 2C	26	no
1P 2C / 2P 3C / Continue 1C	27	no
1P 2C / 2P 4C / Continue 2C	24	no
1P 2C / 2P 4C / Continue 1C	31	yes
1P 2C / 2P 2C / Continue 2C	28	no
1P 2C / 2P 2C / Continue 1C	29	no
1P 1C / 2P 2C / Continue 1C	30	no
1P 1C / 2P 1C / Continue 1C	25	no

Free Play (Ignore Coinage)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Free Play (Ignore Coinage)	DSW1	32

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	64

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	128

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	15

location

name	number	inverted
SW2	8	no
SW2	7	no
SW2	6	no
SW2	5	no

value

name	value	default
Level 0	10	no
Level 1	14	no
Level 2	13	no
Level 3	12	no
Level 4	11	no
Level 5	15	yes
Level 6	9	no
Level 7	8	no
Level 8	7	no
Level 9	6	no
Level 10	5	no
Level 11	4	no
Level 12	3	no
Level 13	2	no
Level 14	1	no
Level 15	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	16

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	96

location

name	number	inverted
SW2	3	no
SW2	2	no

value

name	value	default
Loud	96	yes
Medium	32	no
Low	64	no
Silent	0	no

Score Display

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Score Display	DSW2	128

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW3	1

location

name	number	inverted
SW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW3	2

location

name	number	inverted
SW3	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Event Mode Stages

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Event Mode Stages	DSW3	28	DSW3	32	ne	32

location

name	number	inverted
SW3	4	no
SW3	3	no
SW3	2	no

value

name	value	default
1 Stage	12	no
2 Stages	20	no
3 Stages	16	no
4 Stages	28	yes
4 Stages	4	no
4 Stages	24	no
4 Stages	0	no
5 Stages	8	no

Normal Mode Stages

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Normal Mode Stages	DSW3	28	DSW3	32	eq	32

location

name	number	inverted
SW3	4	no
SW3	3	no
SW3	2	no

value

name	value	default
3 Stages	16	no
4 Stages	28	yes
4 Stages	12	no
4 Stages	20	no
4 Stages	4	no
4 Stages	24	no
4 Stages	0	no
5 Stages	8	no

Event Mode (Ignore Coinage)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Event Mode (Ignore Coinage)	DSW3	32

location

name	number	inverted
SW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no
