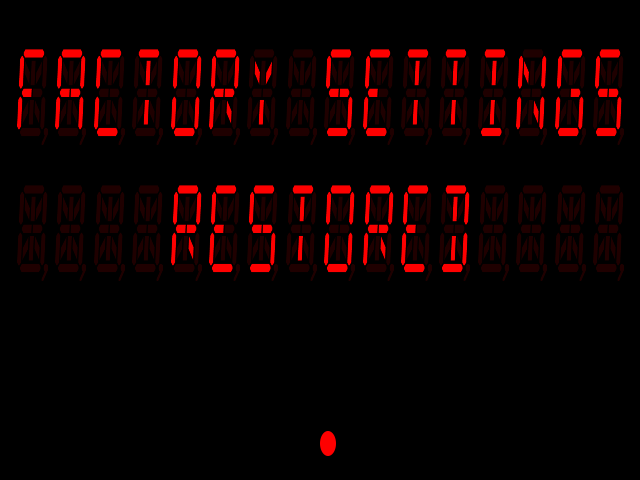

The Machine: Bride of Pinbot (L-4) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
bop_l4	pinball/wpc_an.cpp		no	no	yes	yes	The Machine: Bride of Pinbot (L-4)	1991	Williams	bop_l7	bop_l7

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
tmbopl_4.rom	131072	eea14ecd	afd670bdc3680f12360561a1a5e5854718c099f7	maincpu	10000	good	no
mach_u14.l1	131072	be2a736a	ebf7b26a86d3ffcc35eaa1da8e4f432bd281fe15	sound1	0	good	no	mach_u14.l1
mach_u15.l1	131072	fb49513b	01f5243ff258adce3a28b24859eba3f465444bdf	sound1	80000	good	no	mach_u15.l1
mach_u18.l1	131072	f3f53896	4be5a8a27c5ac4718713c05ff2ddf51658a1be27	sound1	100000	good	no	mach_u18.l1

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809E	2000000
cpu	wpcsnd:bgcpu	Motorola MC6809E	2000000
audio	speaker	Speaker
audio	wpcsnd	Williams WPC Sound
audio	wpcsnd:ym2151	YM2151 OPM	3580000
audio	wpcsnd:dac	AD7524 DAC
audio	wpcsnd:hc55516	HC-55516

device_ref

name
mc6809e
wpc
speaker
wpcsnd
mc6809e
ym2151
ad7524
hc55516

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	4	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		56		no

port, analog

port_tag	analog_masks
:COIN
:DIPS
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

dipswitch

Switch 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch 1	DIPS	1

location

name	number	inverted
SWA	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Switch 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch 2	DIPS	2

location

name	number	inverted
SWA	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2	yes

W20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
W20	DIPS	4

location

name	number	inverted
SWA	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

W19

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
W19	DIPS	8

location

name	number	inverted
SWA	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Country

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Country	DIPS	240

location

name	number	inverted
SWA	5	no
SWA	6	no
SWA	7	no
SWA	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
USA 1	0	yes
France 1	16	no
Germany	32	no
France 2	48	no
Unknown 1	64	no
Unknown 2	80	no
Unknown 3	96	no
Unknown 4	112	no
Export 1	128	no
France 3	144	no
Export 2	160	no
France 4	176	no
UK	192	no
Europe	208	no
Spain	224	no
USA 2	240	no
