The Machine: Bride of Pinbot (L-7) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
bop_l7	pinball/wpc_an.cpp		no	no	yes	yes	The Machine: Bride of Pinbot (L-7)	1992	Williams

snap

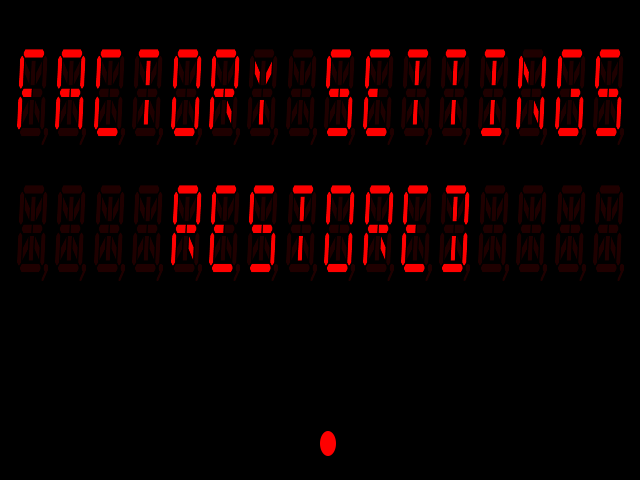

The Machine: Bride of Pinbot (L-7) png snap

The Machine: Bride of Pinbot (L-7) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
bop_l7	13742	23/03/2026 16:47:35	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	09c1989f01e9a8b4c8c64c89fdda541e018766a0

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
tmbopl_7.rom	262144	773e1488	36e8957b3903b99844a76bf15ba393b17db0db59	maincpu	10000	good	no
mach_u14.l1	131072	be2a736a	ebf7b26a86d3ffcc35eaa1da8e4f432bd281fe15	sound1	0	good	no
mach_u15.l1	131072	fb49513b	01f5243ff258adce3a28b24859eba3f465444bdf	sound1	80000	good	no
mach_u18.l1	131072	f3f53896	4be5a8a27c5ac4718713c05ff2ddf51658a1be27	sound1	100000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809E	2000000
cpu	wpcsnd:bgcpu	Motorola MC6809E	2000000
audio	speaker	Speaker
audio	wpcsnd	Williams WPC Sound
audio	wpcsnd:ym2151	YM2151 OPM	3580000
audio	wpcsnd:dac	AD7524 DAC
audio	wpcsnd:hc55516	HC-55516

device_ref

tag	name
:maincpu	mc6809e
:wpc	wpc
:speaker	speaker
:wpcsnd	wpcsnd
:wpcsnd:bgcpu	mc6809e
:wpcsnd:ym2151	ym2151
:wpcsnd:dac	ad7524
:wpcsnd:hc55516	hc55516

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	4	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		56		no

port, analog

port_tag	analog_masks
:COIN
:DIPS
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

dipswitch

Switch 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch 1	DIPS	1

location

name	number	inverted
SWA	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Switch 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch 2	DIPS	2

location

name	number	inverted
SWA	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2	yes

W20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
W20	DIPS	4

location

name	number	inverted
SWA	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

W19

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
W19	DIPS	8

location

name	number	inverted
SWA	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Country

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Country	DIPS	240

location

name	number	inverted
SWA	5	no
SWA	6	no
SWA	7	no
SWA	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
USA 1	0	yes
France 1	16	no
Germany	32	no
France 2	48	no
Unknown 1	64	no
Unknown 2	80	no
Unknown 3	96	no
Unknown 4	112	no
Export 1	128	no
France 3	144	no
Export 2	160	no
France 4	176	no
UK	192	no
Europe	208	no
Spain	224	no
USA 2	240	no

clones

name	description
bop_l2	The Machine: Bride of Pinbot (L-2)
bop_l3	The Machine: Bride of Pinbot (L-3)
bop_l4	The Machine: Bride of Pinbot (L-4)
bop_l5	The Machine: Bride of Pinbot (L-5)
bop_l6	The Machine: Bride of Pinbot (L-6)
