Brailab 4 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
brailab4	homelab/homelab.cpp		no	no	no	yes	Brailab 4	1984	Jozsef and Endre Lukacs	homelab2	homelab2

snap

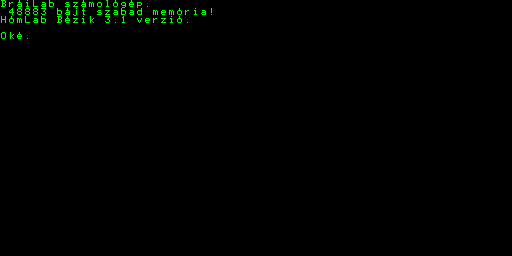

Brailab 4 png snap

Brailab 4 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
brailab4	1266	29/12/2025 11:31:17	512	256	96	96	0	Format24bppRgb	305:MAME 0.172 (Mar 30 2016)	3cc6debdfc989796ade95b3a2dc26aa550d45230

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	256	50.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
brl1.ic1	4096	02323403	3a2e853e0a39e05a04a8db58e1a76de1eda579c9	maincpu	0	good	no
brl2.ic2	4096	36173fbc	1c01398e16a1cbe4103e1be769347ceae873e090	maincpu	1000	good	no
brl3.ic3	4096	d3cdd108	1a24e6c5f9c370ff6cb25045cb9d95e664467eb5	maincpu	2000	good	no
brl4.ic4	4096	d4047885	00fe40c4c2c64a49bb429fb2b27cc7e0d0025a85	maincpu	3000	good	no
brl5.rom	4096	8a76be04	4b683b9be23b47117901fe874072eb7aa481e4ff	maincpu	4000	good	no
hl4.ic21	2048	f58ee39b	49399c42d60a11b218a225856da86a9f3975a78a	chargen	0	good	no
tm188.ic7	64			proms	0	nodump	no
brl.rom	20480	54af5d30	d1e7b7f5866acba0503d47f610456f396526240b	user1	0	good	yes
brlcpm.rom	32	b936d568	150330eccbc4b664eba4103f051d6e932038e9e8	user1	5000	good	yes

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	cassette	Cassette
audio	mea8000	Philips/Signetics MEA 8000 speech synthesizer	3840000

device_ref

tag	name
:maincpu	z80
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:mono	speaker
:speaker	speaker_sound_device
:cassette	cassette_image
:quickload	quickload
:mea8000	mea8000

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cassette	cassette				cassette	cass
quickload	quickload				quickload	quik

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cassette	cassette				wav, flac, aif, aiff
quickload	quickload				htp

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		59		no

port, analog

port_tag	analog_masks
:X0
:X1
:X10
:X11
:X12
:X13
:X14
:X15
:X2
:X3
:X4
:X5
:X6
:X7
:X8
:X9
