Chess Champion: Mark V - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
ccmk5	saitek/mark5.cpp		no	no	no	yes	Chess Champion: Mark V	1981	SciSys / Philidor Software

snap

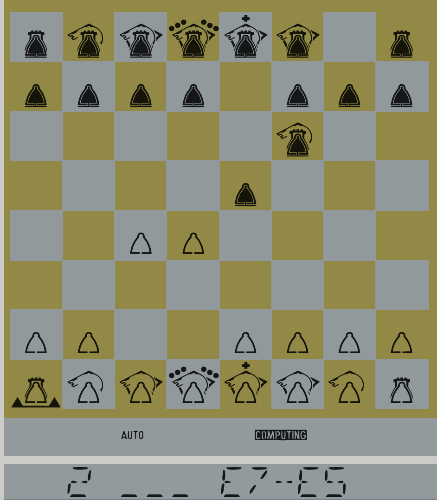

Chess Champion: Mark V png snap

Chess Champion: Mark V jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
ccmk5	34262	29/12/2025 11:31:17	437	500	96	96	0	Format24bppRgb	305:MAME 0.214 (Sep 26 2019)	bd085f0ae790ac8779e63162519a7562c786d09e

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	svg	0	628	720	60.000000	27129600	628	0	628	720	0	720	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
c47024_syp_2364-3-y51	8192	c210f530	60ba3809ed3054024508344f654a6846061fafd5	maincpu	8000	good	no
c47025_syp_2364-3-y5a	8192	3239c96b	6a23713b30c48546d993a0de8998c8de9044e48c	maincpu	a000	good	no
c47026_syp_2364-3-y5c	8192	1754ccab	d246b6aa2e2a1858dd6608a4dbf496778f79b22e	maincpu	c000	good	no
c47027_syp_2364-3-y5d	8192	7c0f7bd8	68b4566f0501005f6b1739bb24a4bec990421a6f	maincpu	e000	good	no
ccmk5.svg	1887415	656a2263	4557979c62b1240f7a0d813ec5f4d54b8a27218e	screen	0	good	no

chip

type	tag	name	clock
cpu	maincpu	MOS Technology 6502	1966080
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	m6502
:nvram	nvram
:lcd0	hlcd0538
:display0	pwm_display
:lcd1	hlcd0539
:display1	pwm_display
:lcd2	hlcd0539
:display2	pwm_display
:screen	screen
:speaker	speaker
:dac	dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy			8	no
keypad		30		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:IN.4
:IN.5
:IN.6
:IN.7
:IN.8

configuration

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	IN.6	12

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
English	0	yes
German	4	no
French	8	no

Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sound	IN.7	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

LCD Light

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
LCD Light	IN.7	2

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2	yes

clones

name	description
ccmk6	Chess Champion: Mark VI/Philidor
