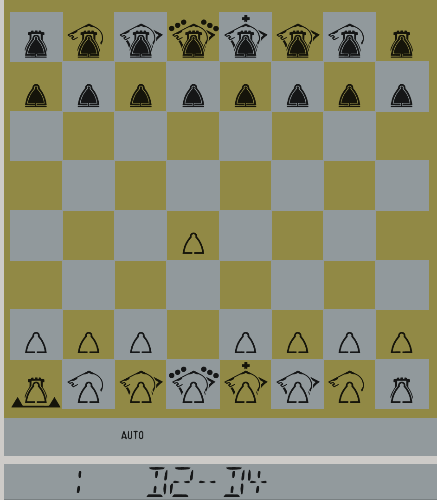

Chess Champion: Mark VI/Philidor - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
ccmk6	saitek/mark5.cpp		no	no	no	yes	Chess Champion: Mark VI/Philidor	1982	SciSys / Philidor Software	ccmk5	ccmk5

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	svg	0	628	720	60.000000	27129600	628	0	628	720	0	720	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
y6_80	8192	8144dd71	8d6fbb4aa9757149c81d2bf533085dc5203f0751	maincpu	8000	good	no
y6_a0	8192	dd77dd90	844aee56e1941f05bdf046d95c5ae687707a2c95	maincpu	a000	good	no
y6_c0	8192	705e5718	513bba3e7344194efaaf022a7934d32d8cba3cb5	maincpu	c000	good	no
y6_e0	8192	b92c3eb3	99a20f5e971b8c4228e0eda0a4c05750d46b95f6	maincpu	e000	good	no
d2732c-e.u1	4096	93221b4c	8561b52c80cab7c04d30eaa14f9520a362d7f822	chessboard	0	good	no
ccmk5.svg	1887415	656a2263	4557979c62b1240f7a0d813ec5f4d54b8a27218e	screen	0	good	no	ccmk5.svg

chip

type	tag	name	clock
cpu	maincpu	MOS Technology 6502	1966080
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

name
m6502
nvram
hlcd0538
pwm_display
hlcd0539
pwm_display
hlcd0539
pwm_display
screen
speaker
dac
sensorboard
pwm_display

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy			8	no
keypad		30		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:IN.4
:IN.5
:IN.6
:IN.7
:IN.8
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	IN.6	12

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
English	0	yes
German	4	no
French	8	no

Sensory Board

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sensory Board	IN.6	32

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sound	IN.7	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

LCD Light

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
LCD Light	IN.7	2

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2	yes

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
