CD-i (Mono-I) (PAL) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
cdimono1	philips/cdi.cpp		no	no	no	yes	CD-i (Mono-I) (PAL)	1991	Philips

snap

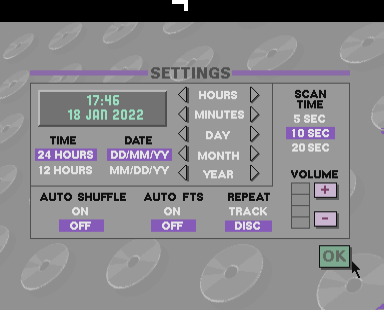

CD-i (Mono-I) (PAL) png snap

CD-i (Mono-I) (PAL) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
cdimono1	20388	29/12/2025 11:31:18	384	310	96	96	0	Format24bppRgb	305:MAME 0.239 (Dec 29 2021)	e8763234dd07cabc76c4c16d899043228daa6581

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	768	560	50.000000	28416000	960	0	768	592	32	592	no
lcd	raster	0	192	22	50.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
cdi200.rom	524288	40c4e6b9	d961de803c89b3d1902d656ceb9ce7c02dccb40a	maincpu	0	good	no		mcdi200
cdi220b.rom	524288	279683ca	53360a1f21ddac952e95306ced64186a3fc0b93e	maincpu	0	good	no		pcdi220
cdi220.rom	524288	584c0af8	5d757ab46b8c8fc36361555d978d7af768342d47	maincpu	0	good	no		pcdi220_alt
zx405037p__cdi_servo_2.1__b43t__llek9215.mc68hc705c8a_withtestrom.7201	8192	7a3af407	fdf8d78d6a0df4a56b5b963d72eabd39fcec163f	servo	0	baddump	no
zx405042p__cdi_slave_2.0__b43t__zzmk9213.mc68hc705c8a_withtestrom.7206	8192	688cda63	56d0acd7caad51c7de703247cd6d842b36173079	slave	0	baddump	no

chip

type	tag	name	clock
cpu	maincpu	Philips SCC68070	30000000
audio	speaker	Speaker
audio	dac1	DMA-driven DAC
audio	dac2	DMA-driven DAC

softwarelist

tag	name	status	filter
cd_list	cdi	original	!DVC
photocd_list	photo_cd	compatible

device_ref

tag	name
:maincpu	scc68070
:mcd212	mcd212
:screen	screen
:lcd	screen
:palette	palette
:cdic	cdicdic
:slave_hle	cdislavehle
:cdrom	cdrom_image
:speaker	speaker
:dac1	dmadac
:dac2	dmadac
:mk48t08	mk48t08
:cd_list	software_list
:photocd_list	software_list

biosset

name	description	default
mcdi200	Magnavox CD-i 200	no
pcdi220	Philips CD-i 220 F2	no
pcdi220_alt	Philips CD-i 220?	no

sound

channels
1

feature

type	status	overall
graphics	imperfect
sound	imperfect

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cdrom	cdrom	cdrom			cdrom	cdrm

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cdrom	cdrom	cdrom			chd, cue, toc, nrg, gdi, iso, cdr

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
mouse		3		no	0	65535	100	2

port, analog

port_tag	analog_masks
:MOUSEBTN
:MOUSEX	65535
:MOUSEY	65535
