Chess-Master (model G-5003-500) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
chessmsta	ddr/chessmst.cpp		no	no	no	yes	Chess-Master (model G-5003-500)	1984	VEB Mikroelektronik "Karl Marx" Erfurt	chessmst	chessmst

snap

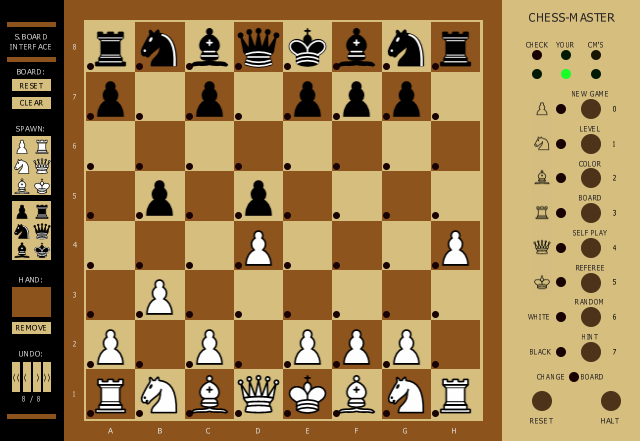

Chess-Master (model G-5003-500) png snap

Chess-Master (model G-5003-500) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
chessmsta	65262	29/12/2025 11:31:18	640	441	96.01199	96.01199	0	Format24bppRgb	305:MAME 0.178 (Sep 28 2016)	6c0577519c07fce4d38ffd8cec10bf0723260dbf

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
bm056.d208	1024	2b90e5d3	c47445964b2e6cb11bd1f27e395cf980c97af196	maincpu	0	good	no
bm057.d209	1024	e666fc56	3fa75b82cead81973bea94191a5c35f0acaaa0e6	maincpu	400	good	no
bm058.d210	1024	6a17fbec	019051e93a5114477c50eaa87e1ff01b02eb404d	maincpu	800	good	no
bm059.d211	1024	e96e3d07	20fab75f206f842231f0414ebc473ce2a7371e7f	maincpu	c00	good	no
bm060.d212	1024	0e31f000	daac924b79957a71a4b276bf2cef44badcbe37d3	maincpu	1000	good	no
bm061.d213	1024	69ad896d	25d999b59d4cc74bd339032c26889af00e64df60	maincpu	1400	good	no
bm062.d214	1024	c42925fe	c42d8d7c30a9b6d91ac994cec0cc2723f41324e9	maincpu	1800	good	no
bm063.d215	1024	86be4cdb	741f984c15c6841e227a8722ba30cf9e6b86d878	maincpu	1c00	good	no
bm064.d216	1024	e82f5480	38a939158052f5e6484ee3725b86e522541fe4aa	maincpu	2000	good	no
bm065.d217	1024	4ec0e92c	0b748231a50777391b04c1778750fbb46c21bee8	maincpu	2400	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	2457600
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	z80
:z80pio0	z80pio
:z80pio1	z80pio
:board	sensorboard
:led_pwm	pwm_display
:speaker	speaker
:dac	dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		10		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
