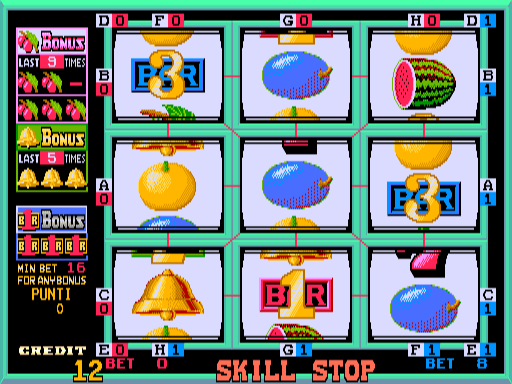

Cherry Gold I (set 2, encrypted bootleg) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
chryglda	igs/goldstar.cpp		no	no	no	yes	Cherry Gold I (set 2, encrypted bootleg)	199?	bootleg	ncb3	ncb3

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	224	60.000000	7864320	512	0	512	256	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
3.u22	65536	059857c5	f4becfda1e25ab347f55f35dc9f5818ef9344e2c	maincpu	0	good	no
2.u6	131072	1359dfac	78eb934055cda9e10d8e939c79bfa62262ecad7d	gfx1	0	good	no
1.u3	32768	919bd692	1aeb66f1e4555b731858833445000593e613f74d	gfx2	0	good	no
n82s147af.u1	512	d4eaa276	b6598ee64ac3d41ca979c8667de8576cfb304451	proms	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	snsnd	SN76489	3000000
audio	aysnd	AY-3-8910A PSG	1500000

device_ref

name
z80
i8255
i8255
i8255
screen
gfxdecode
palette
nvram
speaker
sn76489
ay8910

sound

channels
1

input

players	coins	service	tilt
1	4	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
gambling		10		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:DSW5
:IN0
:IN1
:IN2
:IN3

dipswitch

Game Style

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Style	DSW1	1

location

name	number	inverted
DSW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Tokens	1	yes
Tickets	0	no

Hopper Out Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Out Switch	DSW1	2

location

name	number	inverted
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Active Low	2	yes
Active High	0	no

Payout Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Mode	DSW1	4

location

name	number	inverted
DSW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Payout Switch	4	yes
Automatic	0	no

'7' In Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
'7' In Double Up Game	DSW1	8

location

name	number	inverted
DSW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Lose	8	yes
Even	0	no

Double Up Game Pay Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game Pay Rate	DSW1	16

location

name	number	inverted
DSW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
80%	16	yes
90%	0	no

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW1	32

location

name	number	inverted
DSW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Bet Max

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bet Max	DSW1	192

location

name	number	inverted
DSW1	7	no
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	192	yes
16	128	no
32	64	no
50	0	no

Main Game Pay Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Main Game Pay Rate	DSW2	7

location

name	number	inverted
DSW2	1	no
DSW2	2	no
DSW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
55%	0	yes
60%	1	no
65%	2	no
70%	3	no
75%	4	no
80%	5	no
85%	6	no
90%	7	no

Hopper Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Limit	DSW2	24

location

name	number	inverted
DSW2	4	no
DSW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
300	24	yes
500	16	no
1000	8	no
Unlimited	0	no

100+ Odds Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
100+ Odds Sound	DSW2	32

location

name	number	inverted
DSW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	64

location

name	number	inverted
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Center Super 7 Bet Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Center Super 7 Bet Limit	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Unlimited	128	no
Limited	0	yes

Key In Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key In Rate	DSW3	3

location

name	number	inverted
DSW3	1	no
DSW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/10 Credits	0	no
1 Coin/20 Credits	1	no
1 Coin/50 Credits	2	no
1 Coin/100 Credits	3	yes

Coin A Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A Rate	DSW3	12

location

name	number	inverted
DSW3	3	no
DSW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/10 Credits	12	yes
1 Coin/20 Credits	4	no
1 Coin/50 Credits	8	no

Coin D Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin D Rate	DSW3	48

location

name	number	inverted
DSW3	5	no
DSW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5 Coins/1 Credit	48	yes	DSW4	16	eq	16
2 Coins/1 Credit	32	no	DSW4	16	eq	16
1 Coin/1 Credit	16	no	DSW4	16	eq	16
1 Coin/2 Credits	0	no	DSW4	16	eq	16
1 Ticket/5 Credits	0	no	DSW4	16	eq	0
1 Ticket/10 Credits	16	no	DSW4	16	eq	0
1 Ticket/20 Credits	32	no	DSW4	16	eq	0
1 Ticket/50 Credits	48	yes	DSW4	16	eq	0

Coin C Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin C Rate	DSW3	192

location

name	number	inverted
DSW3	7	no
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	no
1 Coin/2 Credits	64	no
1 Coin/5 Credits	128	no
1 Coin/10 Credits	192	yes

Credit Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credit Limit	DSW4	7

location

name	number	inverted
DSW4	1	no
DSW4	2	no
DSW4	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5,000	7	yes
10,000	6	no
20,000	5	no
30,000	4	no
40,000	3	no
50,000	2	no
100,000	1	no
Unlimited	0	no

Display Of Payout Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Of Payout Limit	DSW4	8

location

name	number	inverted
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Coin D Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin D Type	DSW4	16

location

name	number	inverted
DSW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
C-Type (Tokens)	16	yes
D-Type (Tickets)	0	no

Min. Bet For Bonus Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Min. Bet For Bonus Play	DSW4	32

location

name	number	inverted
DSW4	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	0	no
16	32	yes

Reel Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Reel Speed	DSW4	64

location

name	number	inverted
DSW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	64	yes
High	0	no

Coin A Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A Mode	DSW4	128

location

name	number	inverted
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Unexchange	128	yes
Exchange	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW5	1

location

name	number	inverted
DSW5	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Coin In Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin In Limit	DSW5	6

location

name	number	inverted
DSW5	2	no
DSW5	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1,000	6	yes
5,000	4	no
10,000	2	no
20,000	0	no

Coin Out Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Out Rate	DSW5	24

location

name	number	inverted
DSW5	4	no
DSW5	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100 Credits / 1 Pulse	0	no
100 Credits / 5 Pulses	8	no
100 Credits / 10 Pulses	16	yes
100 Credits / 100 Pulses	24	no

Double Up Girl

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Girl	DSW5	32

location

name	number	inverted
DSW5	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Coin In Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin In Rate	DSW5	192

location

name	number	inverted
DSW5	7	no
DSW5	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100 Credits / 1 Pulse	192	yes
100 Credits / 5 Pulses	64	no
100 Credits / 10 Pulses	128	no
100 Credits / 100 Pulses	0	no
