Cherry Bonus III (ver.1.40, set 1) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
ncb3	igs/goldstar.cpp		no	no	no	yes	Cherry Bonus III (ver.1.40, set 1)	199?	Dyna

snap

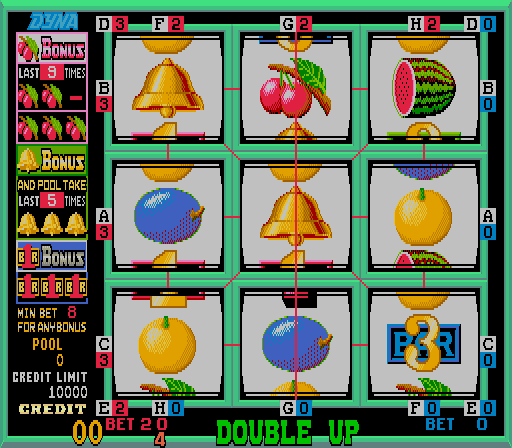

Cherry Bonus III (ver.1.40, set 1) png snap

Cherry Bonus III (ver.1.40, set 1) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
ncb3	20158	29/12/2025 11:31:36	512	448	96.01199	96.01199	0	Format24bppRgb	305:MAME 0.203 (Oct 31 2018)	c8172b30d1fbd81c4eb94022eb304449db9da2de

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	224	60.000000	7864320	512	0	512	256	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
8.512	65536	1f669cd0	fd394119e33c017507fde87a710577e37dcdec07	maincpu	0	good	no
2.256	32768	83650a94	e79420ab559d3f74013708767ca3f238fd333fb7	gfx1	0	good	no
3.256	32768	2f46a3f5	3e6022ee8f84039e48f41aea5e68ee28aabdc556	gfx1	8000	good	no
main_7.256	32768	dcf97517	0a29696e0464c8878c499b1786a17080fd088a72	gfx1	10000	good	no
7.764	8192	7cc6d26b	de33e8985affce7bd3ead89463117c9aaa93d5e4	gfx2	0	good	no
6.764	8192	e73ea4e3	c9fd56461f6986d6bc170403d298fcc408a524e9	gfx2	2000	good	no
5.764	8192	91162010	3acc21e7074602b247f2f392eb181802092d2f21	gfx2	4000	good	no
1.764	8192	cbcc6bfb	5bafc934fef1f50d8c182c39d3a7ce795c89d175	gfx2	6000	good	no
82s147.u2	512	5c8f2b8f	67d2121e75813dd85d83858c5fc5ec6ad9cc2a7d	proms	0	baddump	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	snsnd	SN76489	3000000
audio	aysnd	AY-3-8910A PSG	1500000

device_ref

tag	name
:maincpu	z80
:ppi8255_0	i8255
:ppi8255_1	i8255
:ppi8255_2	i8255
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:nvram	nvram
:mono	speaker
:snsnd	sn76489
:aysnd	ay8910
:hopper	ticket_dispenser

sound

channels
1

input

players	coins	service	tilt
1	4	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
gambling		16		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:DSW5
:IN0
:IN1
:IN2
:IN3
:hopper:TEST

dipswitch

Game Style

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Style	DSW1	1

location

name	number	inverted
DSW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Tokens	1	yes
Tickets	0	no

Hopper Out Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Out Switch	DSW1	2

location

name	number	inverted
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Active Low	2	yes
Active High	0	no

Payout Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Mode	DSW1	4

location

name	number	inverted
DSW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Payout Switch	4	yes
Automatic	0	no

'7' In Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
'7' In Double Up Game	DSW1	8

location

name	number	inverted
DSW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Lose	8	yes
Even	0	no

Double Up Game Pay Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game Pay Rate	DSW1	16

location

name	number	inverted
DSW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
80%	16	yes
90%	0	no

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW1	32

location

name	number	inverted
DSW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Bet Max

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bet Max	DSW1	192

location

name	number	inverted
DSW1	7	no
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	192	yes
16	128	no
32	64	no
64	0	no

Main Game Pay Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Main Game Pay Rate	DSW2	7

location

name	number	inverted
DSW2	1	no
DSW2	2	no
DSW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
55%	0	yes
60%	1	no
65%	2	no
70%	3	no
75%	4	no
80%	5	no
85%	6	no
90%	7	no

Hopper Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Limit	DSW2	24

location

name	number	inverted
DSW2	4	no
DSW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Unlimited	0	yes
1000	8	no
500	16	no
300	24	no

100+ Odds Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
100+ Odds Sound	DSW2	32

location

name	number	inverted
DSW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Key In Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key In Type	DSW2	64

location

name	number	inverted
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
A-Type	64	yes
B-Type	0	no

Center Super 7 Bet Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Center Super 7 Bet Limit	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Unlimited	128	no
Limited	0	yes

Key-In Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key-In Rate	DSW3	3

location

name	number	inverted
DSW3	1	no
DSW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5	0	no	DSW2	64	eq	64
10	1	no	DSW2	64	eq	64
25	2	no	DSW2	64	eq	64
50	3	yes	DSW2	64	eq	64
10	0	no	DSW2	64	eq	0
20	1	no	DSW2	64	eq	0
50	2	no	DSW2	64	eq	0
100	3	yes	DSW2	64	eq	0

Coin A Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A Rate	DSW3	12

location

name	number	inverted
DSW3	3	no
DSW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	no
1 Coin/2 Credits	4	no
1 Coin/5 Credits	8	no
1 Coin/10 Credits	12	yes

Coin D Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin D Rate	DSW3	48

location

name	number	inverted
DSW3	5	no
DSW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5 Coins/1 Credit	48	yes	DSW4	16	eq	16
2 Coins/1 Credit	32	no	DSW4	16	eq	16
1 Coin/1 Credit	16	no	DSW4	16	eq	16
1 Coin/2 Credits	0	no	DSW4	16	eq	16
1 Ticket/5 Credits	0	no	DSW4	16	eq	0
1 Ticket/10 Credits	16	no	DSW4	16	eq	0
1 Ticket/25 Credits	32	no	DSW4	16	eq	0
1 Ticket/50 Credits	48	yes	DSW4	16	eq	0

Coin C Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin C Rate	DSW3	192

location

name	number	inverted
DSW3	7	no
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	no
1 Coin/2 Credits	64	no
1 Coin/5 Credits	128	no
1 Coin/10 Credits	192	yes

Credit Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credit Limit	DSW4	7

location

name	number	inverted
DSW4	1	no
DSW4	2	no
DSW4	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5,000	7	yes
10,000	6	no
20,000	5	no
30,000	4	no
40,000	3	no
50,000	2	no
100,000	1	no
Unlimited	0	no

Display Of Payout Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Of Payout Limit	DSW4	8

location

name	number	inverted
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Coin D Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin D Type	DSW4	16

location

name	number	inverted
DSW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
C-Type (Tokens)	16	yes
D-Type (Tickets)	0	no

Min. Bet For Bonus Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Min. Bet For Bonus Play	DSW4	32

location

name	number	inverted
DSW4	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	0	no
16	32	yes

Reel Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Reel Speed	DSW4	64

location

name	number	inverted
DSW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	64	yes
High	0	no

Coin A Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A Mode	DSW4	128

location

name	number	inverted
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Unexchange	128	yes
Exchange	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW5	1

location

name	number	inverted
DSW5	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Coin In Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin In Limit	DSW5	6

location

name	number	inverted
DSW5	2	no
DSW5	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1,000	6	yes
5,000	4	no
10,000	2	no
20,000	0	no

Coin Out Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Out Rate	DSW5	24

location

name	number	inverted
DSW5	4	no
DSW5	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100 Credits / 1 Pulse	0	no
100 Credits / 5 Pulses	8	no
100 Credits / 10 Pulses	16	yes
100 Credits / 100 Pulses	24	no

Double Up Girl

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Girl	DSW5	32

location

name	number	inverted
DSW5	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Coin In Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin In Rate	DSW5	192

location

name	number	inverted
DSW5	7	no
DSW5	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100 Credits / 1 Pulse	192	yes
100 Credits / 5 Pulses	64	no
100 Credits / 10 Pulses	128	no
100 Credits / 100 Pulses	0	no

clones

name	description
chryangla	Cherry Angel (encrypted, W-4 hardware)
chryangl	Cherry Angel (set 1)
chryanglb	Cherry Angel (set 2)
cb3b	Cherry Bonus III (alt)
cb3c	Cherry Bonus III (Ivanhoe V46-0799)
cb3d	Cherry Bonus III (set 3)
cb3e	Cherry Bonus III (set 4, encrypted bootleg)
cb3f	Cherry Bonus III (set 5, encrypted bootleg)
cb3	Cherry Bonus III (ver.1.40, encrypted)
cb3a	Cherry Bonus III (ver.1.40, set 2)
cb3g	Cherry Bonus III (ver.1.40, set 6)
cb3h	Cherry Bonus III (ver.1.40, set 7)
cb3j	Cherry Bonus III (ver.2.20)
cb3i	Cherry Bonus III (ver.3.0)
cb3s51	Cherry Bonus III (ver.5.1)
chryglda	Cherry Gold I (set 2, encrypted bootleg)
