CZ-230S - mame (0284) machine

MAME: 0284 - Released: 2025-12-30T16:33:58 - Machines: 49538 - rom: 367487 - disk: 1392

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
cz230s	casio/cz230s.cpp		no	no	no	yes	CZ-230S	1985	Casio

snap

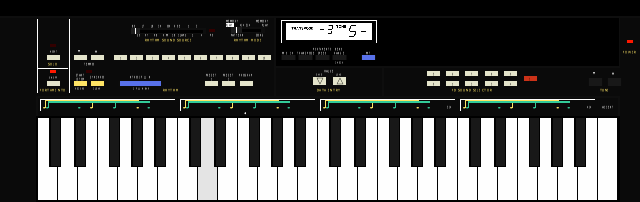

CZ-230S png snap

CZ-230S jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems
cz230s	8366	29/12/2025 11:31:19	640	202	96	96	0	Format24bppRgb	305:MAME 0.262.0 (Jan 31 2024)

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	svg	0	975	205	60.000000	11992500	975	0	975	205	0	205	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
upd7811g-301.bin	4096	506b008c	2d91d817bd0fa4688591160e53cbc6e14acd7014	maincpu	0	good	no
hn613256pda4.bin	32768	f58758ec	11e5c95e51e1c77c89682ea3db85b9457f8b6cf6	program	0	good	no
hn613256pct1.bin	32768	97b9805b	f3502a26b6a9bccb60bea11ae940619ab9960e05	pcm	0	good	no
init_ram.bin	8192	eb756425	3a21b45269a00d27d5943de50825edc329062c60	nvram	0	good	no
cz230s.svg	31669	e35cc3d3	36cb369414f1e65843cd0ea318ad27f536b582be	screen	0	good	no

chip

type	tag	name	clock
cpu	maincpu	NEC uPD7811	10000000
audio	speaker	Speaker
audio	cassette	Cassette
audio	pd	NEC uPD933	4480000
audio	pcm	NEC uPD934G	1280000

device_ref

tag	name
:maincpu	upd7811
:midi_clock	clock
:mdin	midi_port
:mdin:midiin	midiin_port
:mdin:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout
:mdthru	midi_port
:mdthru:midiout	midiout_port
:mdthru:midiout:midioutimg	midiout
:nvram	nvram
:lcdc	mn1252
:screen	screen
:speaker	speaker
:cassette	cassette_image
:pd	upd933
:pcm	upd934g

sound

channels
1

feature

type	status	overall
sound		imperfect

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin:midiin:midiinimg				midiin	min
midiout	mdout:midiout:midioutimg				midiout1	mout1
midiout	mdthru:midiout:midioutimg				midiout2	mout2
cassette	cassette				cassette	cass

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin:midiin:midiinimg				mid, syx
midiout	mdout:midiout:midioutimg				mid
midiout	mdthru:midiout:midioutimg				mid
cassette	cassette				wav, flac

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
positional				yes	0	255	100	10
paddle				no	0	255	100	10
keypad		40		no

port, analog

port_tag	analog_masks
:AN1	255
:AN2
:AN3	255
:KC0
:KC1
:KC10
:KC11
:KC2
:KC3
:KC4
:KC5
:KC6
:KC7
:KC8
:KC9
:MODE
:PB
:PC
:RHYTHM
:mdin:midiin:midiinimg:CFG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes
mdthru	midiout	midiout_port	yes

configuration

Battery Level

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Battery Level	AN2	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	0	no
Normal	255	yes

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no
