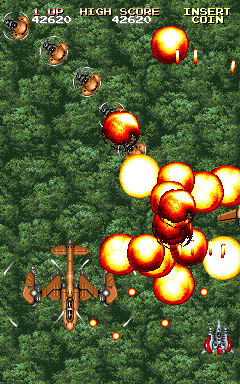

Daioh (93111A PCB conversion) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
daiohc	seta/seta.cpp		no	no	no	yes	Daioh (93111A PCB conversion)	1993	Athena	daioh	daioh

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	384	240	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
15.u3	524288	14616abb	1ff5331b0de60230baa4ced58bec6a954cb599d5	maincpu	0	good	no
14.u4	524288	a029f991	5d341fe5b3ac3bdda1d8e7cc8e6a260f04d00aa1	maincpu	1	good	no
9.u9	524288	4444cbd4	e039cd7e7093d399bc39aa4d355a03250e087fb3	gfx1	0	good	no
10.u10	524288	1d88d20b	3cf95041d0876a4ef378651783e53cee1994ed3d	gfx1	80000	good	no
11.u11	524288	3e41de61	7d3ddf3780bbe99b13937d75cbdbfb58449301a6	gfx1	100000	good	no
12.u12	524288	f35e3341	9260460e1823d157201de02557c7136ef898cfb3	gfx1	180000	good	no
5.u5	524288	aaa5e41e	fe362ec083cb13732ea07003a4a1a9c63d382f4b	gfx2	0	good	no
6.u6	524288	9ad8b4b4	b6e4cff160ae0efe6f3fd0df9a8a618957c3ce61	gfx2	80000	good	no
7.u7	524288	babf194a	ef838aab2d651c10553fb87552c67f289a8ac83d	gfx2	100000	good	no
8.u8	524288	2db65290	4f4d65e984fad7bb1d886de67bc50645798282bb	gfx2	180000	good	no
1.u1	524288	30f81f99	9c164c798c7e869e92505d9d85f06f4a1c9a9528	gfx3	0	good	no
2.u2	524288	3b3e0f4e	740afe4eefea480f941dd80a03392592d8d4b084	gfx3	80000	good	no
3.u3	524288	c5eef1c1	d4b3188b39bad5c7a2c7b7dbc91a79c7ee80a3a1	gfx3	100000	good	no
4.u4	524288	851115b6	b8e1e22231d131085c90afcf30ff35a2866edff5	gfx3	180000	good	no
data.u69	524288	21e4f093	f0420d158dc5d182e41b6fb2ea3af6baf88bacb8	x1snd	0	good	no
data.u70	524288	593c3c58	475fb530a6d23269cb0aea6e294291c7463b57a2	x1snd	80000	good	no
gal.u14	279	b972b479	50da73b4cc7b9c0ff8fb19b2c34d05a4dbc8f0cb	gals	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	16000000
audio	mono	Speaker
audio	x1snd	Seta X1-010	16000000

device_ref

name
m68000
pit8254
pit_counter
pit_counter
pit_counter
watchdog
x1_001
screen
x1_012
x1_012
palette
speaker
x1_010

sound

channels
1

input

players	coins	service	tilt
2	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	6	8	no
joy	2	6	8	no

port, analog

port_tag	analog_masks
:COINS
:DSW
:EXTRA
:P1
:P2

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	COINS	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	COINS	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	COINS	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Country

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Country	COINS	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
USA (6 buttons)	128	yes
Japan (2 buttons)	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW	7

location

name	number	inverted
SW2	1	no
SW2	2	no
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	1	no
3 Coins/1 Credit	2	no
2 Coins/1 Credit	4	no
1 Coin/1 Credit	7	yes
2 Coins/3 Credits	3	no
1 Coin/2 Credits	6	no
1 Coin/3 Credits	5	no
Free Play	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW	56

location

name	number	inverted
SW2	4	no
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	8	no
3 Coins/1 Credit	16	no
2 Coins/1 Credit	32	no
1 Coin/1 Credit	56	yes
2 Coins/3 Credits	24	no
1 Coin/2 Credits	48	no
1 Coin/3 Credits	40	no
Free Play	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	64	yes

Auto Shot

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Auto Shot	DSW	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	no
On	0	yes

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW	256

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW	512

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	512	yes
On	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	3072

location

name	number	inverted
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	2048	no
Normal	3072	yes
Hard	1024	no
Hardest	0	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW	12288

location

name	number	inverted
SW1	5	no
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	no
2	4096	no
3	12288	yes
5	8192	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW	49152

location

name	number	inverted
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
300k and every 800k	32768	no
500k and every 1000k	49152	yes
800k and 2000k only	16384	no
1000k Only	0	no
