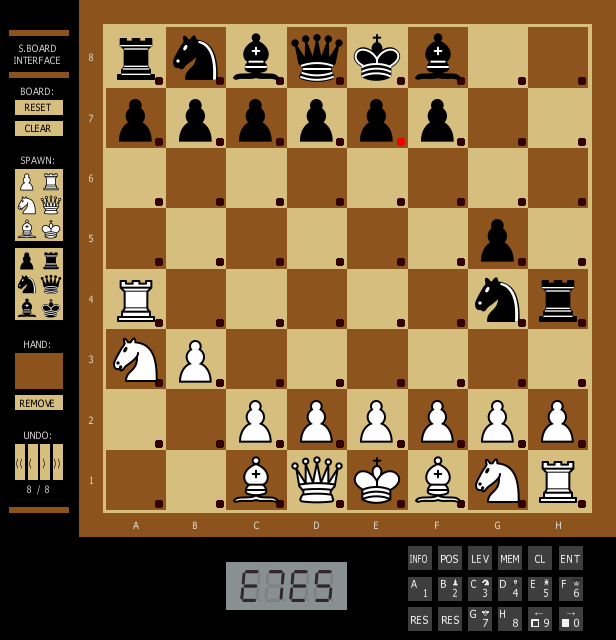

Mephisto Dallas 68000 - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
dallas16	hegenerglaser/amsterdam.cpp		no	no	no	yes	Mephisto Dallas 68000	1986	Hegener + Glaser	dallas32	dallas32

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
dallas-u.bin	32768	70b741f7	23d55ed0fea127b727d725c367ee1932ff5af39f	maincpu	0	good	no
dallas-l.bin	32768	69300ad3	57ec1b955b1ddfe722011ff5da68a0cd71af9251	maincpu	1	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	12000000
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

name
m68000
msboard
sensorboard
pwm_display
mdisplay1
pwm_display
speaker
dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		18		no

port, analog

port_tag	analog_masks
:KEY.0
:KEY.1
:RESET
:board:board:BS_CHECK
:board:board:CONF
:board:board:RANK.1
:board:board:RANK.10
:board:board:RANK.2
:board:board:RANK.3
:board:board:RANK.4
:board:board:RANK.5
:board:board:RANK.6
:board:board:RANK.7
:board:board:RANK.8
:board:board:RANK.9
:board:board:SPAWN
:board:board:SS_CHECK
:board:board:UI
:board:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
