mame (0289) • machine dallas32 • Mephisto Dallas 68020 (set 1)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
dallas32	hegenerglaser/amsterdam.cpp		no	no	no	yes	Mephisto Dallas 68020 (set 1)	1986	Hegener + Glaser

snap

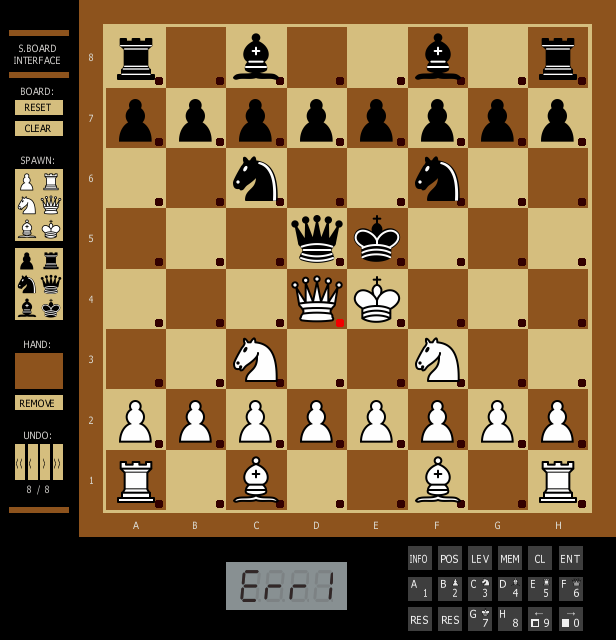

Mephisto Dallas 68020 (set 1) png snap

Mephisto Dallas 68020 (set 1) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
dallas32	52667	29/12/2025 11:31:19	616	640	96	96	0	Format24bppRgb	305:MAME 0.218 (Jan 29 2020)	b495e2fa35c9f686b19c90b669359cf633eff913

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
dallas_68020	65536	00ab8e11	5e0a2f5e6b5a65d4997d6a999f23f9c30460f2e3	maincpu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68020	14000000
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	m68020
:board	msboard
:board:board	sensorboard
:board:led_pwm	pwm_display
:display	mdisplay1
:display:lcd_pwm	pwm_display
:speaker	speaker
:dac	dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		18		no

port, analog

port_tag	analog_masks
:KEY.0
:KEY.1
:RESET
:board:board:BS_CHECK
:board:board:CONF
:board:board:RANK.1
:board:board:RANK.10
:board:board:RANK.11
:board:board:RANK.12
:board:board:RANK.13
:board:board:RANK.2
:board:board:RANK.3
:board:board:RANK.4
:board:board:RANK.5
:board:board:RANK.6
:board:board:RANK.7
:board:board:RANK.8
:board:board:RANK.9
:board:board:SPAWN
:board:board:SS_CHECK
:board:board:UI
:board:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes

clones

name	description
dallas16g	Mephisto Dallas 68000 (Glasgow hardware)
dallas16	Mephisto Dallas 68000
dallas32a	Mephisto Dallas 68020 (set 2)
