mame (0289) • machine dallas16g • Mephisto Dallas 68000 (Glasgow hardware)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
dallas16g	hegenerglaser/glasgow.cpp		no	no	no	yes	Mephisto Dallas 68000 (Glasgow hardware)	1986	Hegener + Glaser	dallas32	dallas32

snap

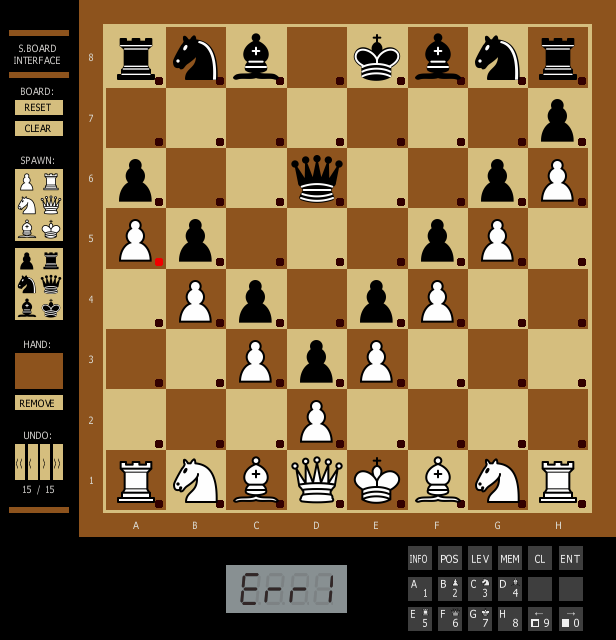

Mephisto Dallas 68000 (Glasgow hardware) png snap

Mephisto Dallas 68000 (Glasgow hardware) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
dallas16g	57005	29/12/2025 11:31:19	616	640	96	96	0	Format24bppRgb	305:MAME 0.162 (May 27 2015)	99e019bc68554633c579e3ecdaf5f69475847855

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
dal_g_bl	16384	144a15e2	c4fcc23d55fa5262f5e01dbd000644a7feb78f32	maincpu	8001	good	no
dal_g_br	16384	e24d7ec7	a936f6fcbe9bfa49bf455f2d8a8243d1395768c1	maincpu	8000	good	no
dal_g_pl	16384	c5b6171c	663167a3839ed7508ecb44fd5a1b2d3d8e466763	maincpu	1	good	no
dal_g_pr	16384	66deade9	07ec6b923f2f053172737f1fc94aec84f3ea8da1	maincpu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	12000000
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	m68000
:board	msboard
:board:board	sensorboard
:board:led_pwm	pwm_display
:display	mdisplay1
:display:lcd_pwm	pwm_display
:speaker	speaker
:dac	dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		16		no

port, analog

port_tag	analog_masks
:KEY.0
:KEY.1
:WAIT
:board:board:BS_CHECK
:board:board:CONF
:board:board:RANK.1
:board:board:RANK.10
:board:board:RANK.11
:board:board:RANK.12
:board:board:RANK.13
:board:board:RANK.2
:board:board:RANK.3
:board:board:RANK.4
:board:board:RANK.5
:board:board:RANK.6
:board:board:RANK.7
:board:board:RANK.8
:board:board:RANK.9
:board:board:SPAWN
:board:board:SS_CHECK
:board:board:UI
:board:board:UI_CHECK

configuration

LDS/UDS Wait States

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
LDS/UDS Wait States	WAIT	3

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
None (12MHz)	0	no
1 (~9.5MHz)	1	yes
2 (~8MHz)	2	no
3 (~7Mhz)	3	no

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
