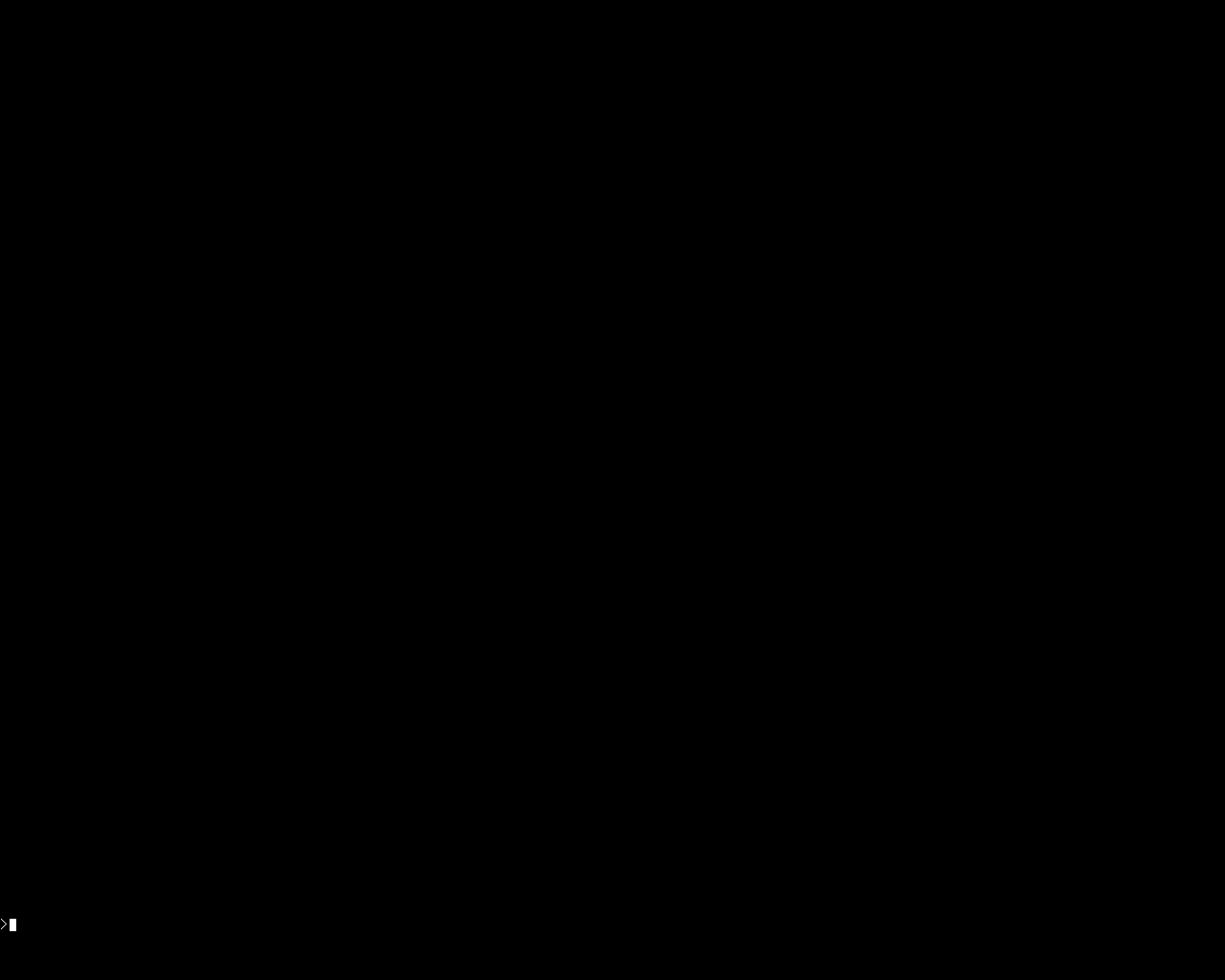

Apollo DN5500 19" Monochrome - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
dn5500_19i	apollo/apollo.cpp		no	no	no	yes	Apollo DN5500 19" Monochrome	1991	Apollo	dn3500	dn3500

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
apollo_screen:screen	raster	0	1280	1024	65.144882	120000000	1728	0	1280	1066	0	1024	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
5500_boot_a1631-80046_1-30-92.bin	65536	7b9ed610	7315a884ec4551c44433c6079cc06509223cb02b	maincpu	0	good	no		md7c-rev-8.00

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68040	25000000
cpu	dma8237_1	AM9517A	4772727
cpu	dma8237_2	AM9517A	4772727
cpu	isa3:3c505:cpu	Intel 80186	16000000
audio	isa1:wdc:omti_fdc:0:525hd:flopsndout	Speaker
audio	isa1:wdc:omti_fdc:0:525hd:floppysound	Floppy sound	44100
audio	kbd:mono	Speaker
audio	kbd:beep	Beep	1000

softwarelist

tag	name	status	filter
ctape_list	apollo_ctape	original

device_ref

name
m68040
apollo_config
am9517a
am9517a
pic8259
pic8259
ptm6840
clock
mc146818
node_id
apollo_sio
duart_channel
duart_channel
isa16
isa16_slot
omti8621ap
omti_disk_image
omti_disk_image
upd765a
floppy_connector
floppy_525_hd
speaker
flopsnd
isa16_slot
sc499
sc499_ctape
isa16_slot
3c505
i80186
i82586
ram
isa16_slot
isa16_slot
isa16_slot
isa16_slot
software_list
apollo_sio
duart_channel
duart_channel
ram
apollo_graphics_19i
palette
screen
apollo_kbd
speaker
beep

biosset

name	description	default
md7c-rev-8.00	MD7C REV 8.00, 1989/08/16.17:23:52	no

sound

channels
2

ramoption

name	default
4M
8M	yes
16M
32M

device, instance

type	tag	interface	name	briefname
node_id	node_id		node_id	ni
winchester	isa1:wdc:omti_disk0		winchester1	disk1
winchester	isa1:wdc:omti_disk1		winchester2	disk2
floppydisk	isa1:wdc:omti_fdc:0:525hd	floppy_5_25	floppydisk	flop
ctape	isa2:ctape:sc499_ctape	sc499_cass	ctape	ct

device, extension

type	tag	interface	extension_names
node_id	node_id		ani, bin
winchester	isa1:wdc:omti_disk0		awd
winchester	isa1:wdc:omti_disk1		awd
floppydisk	isa1:wdc:omti_fdc:0:525hd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, afd
ctape	isa2:ctape:sc499_ctape	sc499_cass	act, ct

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
mouse		3		no	0	255	50
keyboard		103		no

port, analog

port_tag	analog_masks
:apollo_config
:isa1:wdc:BIOS_OPTS
:isa1:wdc:IO_BASE
:isa2:ctape:IO_BASE
:isa2:ctape:IRQ_DRQ
:isa3:3c505:IO_BASE
:isa3:3c505:IRQ_DRQ
:isa3:3c505:ROM_OPTS
:isa3:3c505:TEST
:kbd:keyboard1
:kbd:keyboard2
:kbd:keyboard3
:kbd:keyboard4
:kbd:mouse1
:kbd:mouse2	255
:kbd:mouse3	255

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
isa1	3c505	3c505	no
isa1	ctape	sc499	no
isa1	wdc	omti8621ap	yes
isa1:wdc:omti_fdc:0	35dd	floppy_35_dd	no
isa1:wdc:omti_fdc:0	525dd	floppy_525_dd	no
isa1:wdc:omti_fdc:0	35hd	floppy_35_hd	no
isa1:wdc:omti_fdc:0	525hd	floppy_525_hd	yes
isa2	3c505	3c505	no
isa2	ctape	sc499	yes
isa2	wdc	omti8621ap	no
isa3	3c505	3c505	yes
isa3	ctape	sc499	no
isa3	wdc	omti8621ap	no
isa4	3c505	3c505	no
isa4	ctape	sc499	no
isa4	wdc	omti8621ap	no
isa5	3c505	3c505	no
isa5	ctape	sc499	no
isa5	wdc	omti8621ap	no
isa6	3c505	3c505	no
isa6	ctape	sc499	no
isa6	wdc	omti8621ap	no
isa7	3c505	3c505	no
isa7	ctape	sc499	no
isa7	wdc	omti8621ap	no

configuration

Normal/Service

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Normal/Service	apollo_config	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Service	0	yes
Normal	1	no

Graphics Controller

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Graphics Controller	apollo_config	30

setting

name	value	default
8-Plane Color	2	yes
4-Plane Color	4	no
15" Monochrome	8	no

German Keyboard

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
German Keyboard	apollo_config	32

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

30 Years Ago ...

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
30 Years Ago ...	apollo_config	64

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	64	yes

25 Years Ago ...

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
25 Years Ago ...	apollo_config	128

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

Node ID from Disk

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Node ID from Disk	apollo_config	256

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	256	yes

dipswitch

BIOS control

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
BIOS control	isa1:wdc:BIOS_OPTS	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Disabled	0	yes
Enabled	1	no

BIOS base

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
BIOS base	isa1:wdc:BIOS_OPTS	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
C8000h	0	yes
CA000h	0	yes

ESDI I/O base

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
ESDI I/O base	isa1:wdc:IO_BASE	7

value

name	value	default
0320h	0	no
0324h	1	no
0328h	2	no
032Ch	3	no
01A0h	4	yes
01A4h	5	no
01A8h	6	no
01ACh	7	no

Floppy I/O base

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Floppy I/O base	isa1:wdc:IO_BASE	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
03F0h	0	yes
0370h	0	yes

SC499 I/O base (jumpers A3-A9)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SC499 I/O base (jumpers A3-A9)	isa2:ctape:IO_BASE	1016

value

name	value	default
008h	8	no
010h	16	no
018h	24	no
020h	32	no
028h	40	no
030h	48	no
038h	56	no
040h	64	no
048h	72	no
050h	80	no
058h	88	no
060h	96	no
068h	104	no
070h	112	no
078h	120	no
080h	128	no
088h	136	no
090h	144	no
098h	152	no
0a0h	160	no
0a8h	168	no
0b0h	176	no
0b8h	184	no
0c0h	192	no
0c8h	200	no
0d0h	208	no
0d8h	216	no
0e0h	224	no
0e8h	232	no
0f0h	240	no
0f8h	248	no
0100h	256	no
0108h	264	no
0110h	272	no
0118h	280	no
0120h	288	no
0128h	296	no
0130h	304	no
0138h	312	no
0140h	320	no
0148h	328	no
0150h	336	no
0158h	344	no
0160h	352	no
0168h	360	no
0170h	368	no
0178h	376	no
0180h	384	no
0188h	392	no
0190h	400	no
0198h	408	no
01a0h	416	no
01a8h	424	no
01b0h	432	no
01b8h	440	no
01c0h	448	no
01c8h	456	no
01d0h	464	no
01d8h	472	no
01e0h	480	no
01e8h	488	no
01f0h	496	no
01f8h	504	no
0200h	512	yes
0208h	520	no
0210h	528	no
0218h	536	no
0220h	544	no
0228h	552	no
0230h	560	no
0238h	568	no
0240h	576	no
0248h	584	no
0250h	592	no
0258h	600	no
0260h	608	no
0268h	616	no
0270h	624	no
0278h	632	no
0280h	640	no
0288h	648	no
0290h	656	no
0298h	664	no
02a0h	672	no
02a8h	680	no
02b0h	688	no
02b8h	696	no
02c0h	704	no
02c8h	712	no
02d0h	720	no
02d8h	728	no
02e0h	736	no
02e8h	744	no
02f0h	752	no
02f8h	760	no
0300h	768	no
0308h	776	no
0310h	784	no
0318h	792	no
0320h	800	no
0328h	808	no
0330h	816	no
0338h	824	no
0340h	832	no
0348h	840	no
0350h	848	no
0358h	856	no
0360h	864	no
0368h	872	no
0370h	880	no
0378h	888	no
0380h	896	no
0388h	904	no
0390h	912	no
0398h	920	no
03a0h	928	no
03a8h	936	no
03b0h	944	no
03b8h	952	no
03c0h	960	no
03c8h	968	no
03d0h	976	no
03d8h	984	no
03e0h	992	no
03e8h	1000	no
03f0h	1008	no
03f8h	1016	no

SC499 IRQ (jumpers IRQ2-IRQ7)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SC499 IRQ (jumpers IRQ2-IRQ7)	isa2:ctape:IRQ_DRQ	7

value

name	value	default
IRQ 2	2	no
IRQ 3	3	no
IRQ 4	4	no
IRQ 5	5	yes
IRQ 6	6	no
IRQ 7	7	no

SC499 DMA (jumpers DRQ1-DRQ3)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SC499 DMA (jumpers DRQ1-DRQ3)	isa2:ctape:IRQ_DRQ	48

value

name	value	default
DRQ 1	16	yes
DRQ 2	32	no
DRQ 3	48	no

I/O Base

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
I/O Base	isa3:3c505:IO_BASE	1008

value

name	value	default
010h	16	no
020h	32	no
030h	48	no
040h	64	no
050h	80	no
060h	96	no
070h	112	no
080h	128	no
090h	144	no
0a0h	160	no
0b0h	176	no
0c0h	192	no
0d0h	208	no
0e0h	224	no
0f0h	240	no
0100h	256	no
0110h	272	no
0120h	288	no
0130h	304	no
0140h	320	no
0150h	336	no
0160h	352	no
0170h	368	no
0180h	384	no
0190h	400	no
01a0h	416	no
01b0h	432	no
01c0h	448	no
01d0h	464	no
01e0h	480	no
01f0h	496	no
0200h	512	no
0210h	528	no
0220h	544	no
0230h	560	no
0240h	576	no
0250h	592	no
0260h	608	no
0270h	624	no
0280h	640	no
0290h	656	no
02a0h	672	no
02b0h	688	no
02c0h	704	no
02d0h	720	no
02e0h	736	no
02f0h	752	no
0300h	768	yes
0310h	784	no
0320h	800	no
0330h	816	no
0340h	832	no
0350h	848	no
0360h	864	no
0370h	880	no
0380h	896	no
0390h	912	no
03a0h	928	no
03b0h	944	no
03c0h	960	no
03d0h	976	no
03e0h	992	no
03f0h	1008	no

IRQ

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
IRQ	isa3:3c505:IRQ_DRQ	15

value

name	value	default
IRQ 3	3	no
IRQ 4	4	no
IRQ 5	5	no
IRQ 6	6	no
IRQ 7	7	no
IRQ 9	9	no
IRQ 10	10	yes
IRQ 11	11	no
IRQ 12	12	no
IRQ 14	14	no
IRQ 15	15	no

DRQ

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DRQ	isa3:3c505:IRQ_DRQ	112

value

name	value	default
none	0	no
DRQ 1	16	no
DRQ 3	48	no
DRQ 5	80	no
DRQ 6	96	yes
DRQ 7	112	no

ROM Enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
ROM Enable	isa3:3c505:ROM_OPTS	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

ROM Base

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
ROM Base	isa3:3c505:ROM_OPTS	254

value

name	value	default
80000h	0	yes
82000h	2	no
84000h	4	no
86000h	6	no
C8000h	200	no
CA000h	202	no
CC000h	204	no
CE000h	206	no
D0000h	208	no
D2000h	210	no
D4000h	212	no
D6000h	214	no
D8000h	216	no
DA000h	218	no
DC000h	220	no
DE000h	222	no
E0000h	224	no
E2000h	226	no
E4000h	228	no
E6000h	230	no
E8000h	232	no
EA000h	234	no
EC000h	236	no
EE000h	238	no
F0000h	240	no
F2000h	242	no
F4000h	244	no

TEST Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
TEST Mode	isa3:3c505:TEST	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no
