Earthshaker (Metallica) (LA-3) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
esha_ma3	pinball/s11b.cpp	genpin	no	no	yes	yes	Earthshaker (Metallica) (LA-3)	1989	Williams	esha_la3	esha_la3

snap

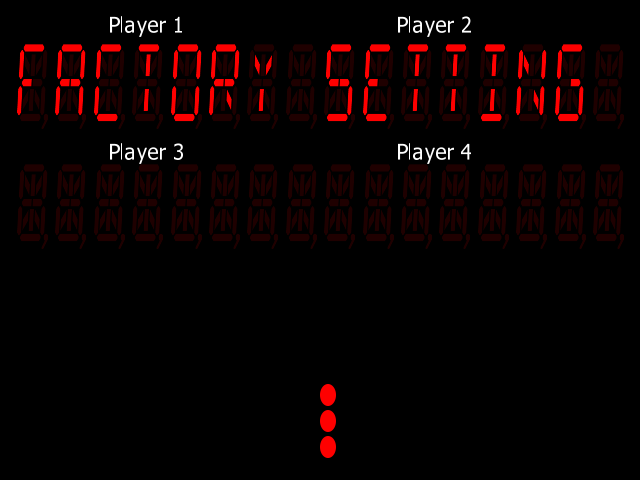

Earthshaker (Metallica) (LA-3) png snap

Earthshaker (Metallica) (LA-3) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
esha_ma3	13691	20/03/2026 12:11:20	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	929bd9a4672d3df4e27c2da6426176cf0c2fd9f3

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
eshk_u26.ml3	16384	7b7b1a8a	8c1d5e4e0b4217055ad9e1490ff3dba52ef013f4	maincpu	4000	good	no
eshk_u27.ml3	32768	6197c56c	338438e8e4c9a7790977dc8e394f6f032516f755	maincpu	8000	good	no
eshk_u21.l1	32768	feac68e5	2f12a78398bc3a468e3e0656da91260d45b0663b	audiocpu	8000	good	no	eshk_u21.l1
eshk_u22.l1	32768	44f50fe1	a8e24dbb0f5cf300118e1ebdcd2bb6b274d87936	audiocpu	0	good	no	eshk_u22.l1
eshk_u4.l1	32768	40069f8c	aafdc189259fa9c8dc49e60e978b84775e16c64e	bg:cpu	0	good	no	eshk_u4.l1
eshk_u19.l1	32768	e5593075	549b03402e5639b449e35325eb52e78f8810b07a	bg:cpu	20000	good	no	eshk_u19.l1

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6808	4000000
cpu	audiocpu	Motorola MC6802	4000000
cpu	bg:cpu	Motorola MC6809E	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	dac	MC1408 DAC
audio	cvsd_filter2	Biquad Filter
audio	cvsd_filter	Biquad Filter
audio	hc55516	HC-55516
audio	bg	Williams System 11 Background Audio Board
audio	bg:dac	MC1408 DAC
audio	bg:ym2151	YM2151 OPM	3579545
audio	bg:cvsd_filter2	Biquad Filter
audio	bg:cvsd_filter	Biquad Filter
audio	bg:hc55516	HC-55516
audio	speaker	Speaker

device_ref

tag	name
:maincpu	m6808
:mainirq	ipt_merge_any_hi
:piairq	ipt_merge_any_hi
:mechvol	speaker
:samples	samples
:pia21	pia6821
:pia24	pia6821
:pia28	pia6821
:pia2c	pia6821
:pia30	pia6821
:pia34	pia6821
:nvram	nvram
:audiocpu	m6802
:audioirq	ipt_merge_any_hi
:dac	mc1408
:cvsd_filter2	filter_biquad
:cvsd_filter	filter_biquad
:hc55516	hc55516
:pias	pia6821
:bg	s11_bg
:bg:cpu	mc6809e
:bg:dac	mc1408
:bg:pia40	pia6821
:bg:ym2151	ym2151
:bg:cvsd_filter2	filter_biquad
:bg:cvsd_filter	filter_biquad
:bg:hc55516	hc55516
:speaker	speaker

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		64		no

port, analog

port_tag	analog_masks
:DIAGS
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

configuration

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	DIAGS	16

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
German	0	no
English	16	yes
