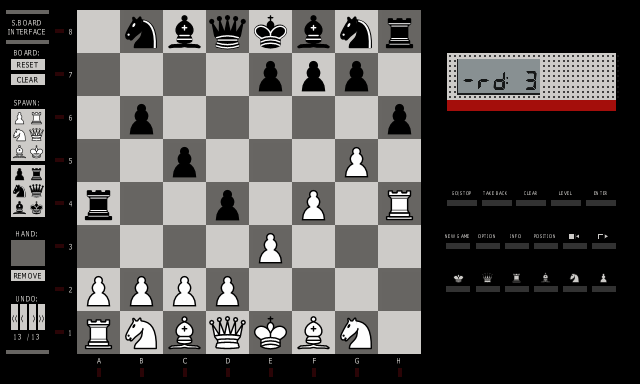

Kasparov GK 2000 (H8/3212 version) - mame (0281) machine

MAME: 0281 - Released: 2025-09-24T18:40:45 - Machines: 49006 - rom: 365545 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
gk2000	saitek/gk2000.cpp		no	no	no	yes	Kasparov GK 2000 (H8/3212 version)	1997	Saitek

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	svg	0	384	160	60.000000	3686400	384	0	384	160	0	160	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
97_saitek_86164430826_hd6433212v03p.u1	16384	220c80d4	f1df2d04afeffec0a0a66036dfa2c4dcb85ae8f2	maincpu	0	good	no
gk2000.svg	68501	80554c49	88f06ec8f403eaaf7cbce4cc84807b5742ce7108	screen	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi H8/3212	10000000
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

name
h83212
h8_intc
h8_digital_port
h8_digital_port
h8_digital_port
h8_digital_port
h8_digital_port
h8_digital_port
h8_digital_port
h8_timer8_channel
h8_timer8_channel
h8_timer8_channel
h8_timer16
h8325_timer16_channel
h8_sci
h8_sci
h8_watchdog
sensorboard
pwm_display
screen
pwm_display
speaker
dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		17		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
