Kasparov GK 2000 (H8/323 version)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
gk2000a	saitek/gk2000.cpp		no	no	no	yes	Kasparov GK 2000 (H8/323 version)	1992	Saitek	gk2000	gk2000

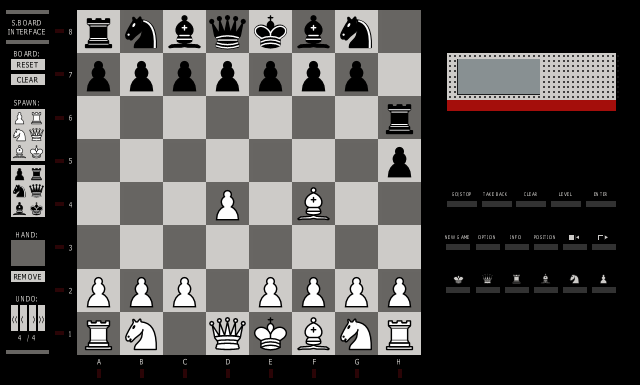

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
gk2000a	32370	29/12/2025 11:31:22	640	385	96	96	0	Format24bppRgb	305:MAME 0.272.0 (Nov 27 2024)	6de0beccb0421d6437b97d98bab3c9c2b1a89e0e

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	svg	0	384	160	60.000000	3686400	384	0	384	160	0	160	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
92_saitek_86071220x12_3238a13p.u1	16384	2059399c	d99d5f86b80565e6017b19ef3f330112ac1ce685	maincpu	0	good	no
gk2000.svg	68501	80554c49	88f06ec8f403eaaf7cbce4cc84807b5742ce7108	screen	0	good	no	gk2000.svg

chip

type	tag	name	clock
cpu	maincpu	Hitachi H8/323	20000000
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	h8323
:maincpu:intc	h8325_intc
:maincpu:port1	h8_digital_port
:maincpu:port2	h8_digital_port
:maincpu:port3	h8_digital_port
:maincpu:port4	h8_digital_port
:maincpu:port5	h8_digital_port
:maincpu:port6	h8_digital_port
:maincpu:port7	h8_digital_port
:maincpu:timer8_0	h8_timer8_channel
:maincpu:timer8_1	h8_timer8_channel
:maincpu:timer16	h8_timer16
:maincpu:timer16:0	h8325_timer16_channel
:maincpu:sci0	h8_sci
:maincpu:sci1	h8_sci
:board	sensorboard
:lcd_pwm	pwm_display
:screen	screen
:led_pwm	pwm_display
:speaker	speaker
:dac	dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		17		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

CPU Frequency

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CPU Frequency	IN.2	255

setting

name	value	default
8MHz (unofficial)	1	no
14MHz (Travel Champion 2080)	0	no
20MHz (GK 2000, GK 2100)	2	yes
24MHz (unofficial)	4	no
28MHz (unofficial)	8	no
32MHz (unofficial)	16	no

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
