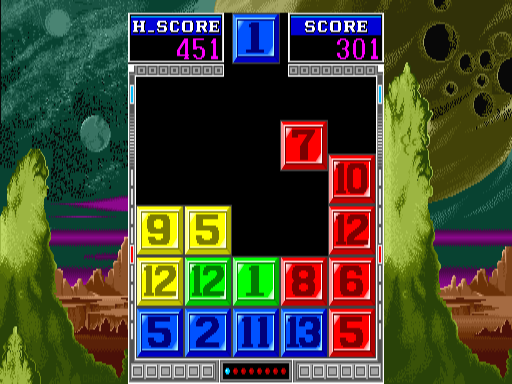

IQ-Block (V100U) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
iqblock	igs/iqblock.cpp		no	no	no	yes	IQ-Block (V100U)	1993	IGS

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	240	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
u7.v5	65536	811f306e	d0aef80f1624002d05721276358f26a3ef69a3f6	maincpu	0	good	no
u8.6	32768	2651bc27	53e1d6ffd78c8a612863b29b0f8734e740d563c7	bgmaps	0	good	no
u28.1	131072	ec4b64b4	000e9df0c0b5fcde5ead218dfcdc156bc4be909d	bgtiles	0	good	no
u27.2	131072	74aa3de3	16757c24765d22026793a0c53d3f24c106951a18	bgtiles	20000	good	no
u26.3	131072	2896331b	51eba9f9f653a11cb96c461ab495d943d34cedc6	bgtiles	40000	good	no
u25.4	16384	8fc222af	ac1fb5e6caec391a76e3af51e133aecc65cd5aed	fgtiles	0	good	no
u24.5	16384	61050e1e	1f7185b2a5a2e237120276c95344744b146b4bf6	fgtiles	4000	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	6000000
audio	mono	Speaker
audio	ymsnd	YM2413 OPLL	3579545

device_ref

name
z80
timer
i8255
screen
gfxdecode
palette
speaker
ym2413

sound

channels
1

input

players	coins	service	tilt
2	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	4	8	no
joy	2	4	8	no

port, analog

port_tag	analog_masks
:EXTRA
:P1
:P2
:SW0
:SW1

dipswitch

Unknown SW 0-0&1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown SW 0-0&1	SW0	3

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	3	yes
1	2	no
2	1	no
3	0	no

Helps

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Helps	SW0	12

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	12	yes
2	8	no
3	4	no
4	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	SW0	112

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	0	no
3 Coins/1 Credit	16	no
2 Coins/1 Credit	32	no
1 Coin/1 Credit	112	yes
1 Coin/2 Credits	96	no
1 Coin/3 Credits	80	no
1 Coin/4 Credits	64	no
1 Coin/6 Credits	48	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	SW0	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Demo Sounds?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds?	SW1	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

Free Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Free Play	SW1	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	SW1	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	SW1	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	SW1	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	SW1	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	SW1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	SW1	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
