IQ Block (V113FR, gambling) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
iqblockf	igs/igs017.cpp		no	no	no	yes	IQ Block (V113FR, gambling)	1997	IGS	iqblock	iqblock

snap

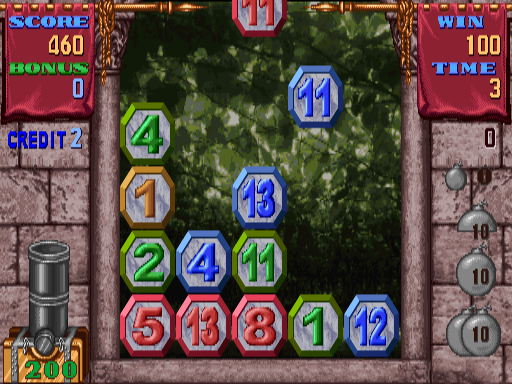

IQ Block (V113FR, gambling) png snap

IQ Block (V113FR, gambling) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
iqblockf	185991	29/12/2025 11:31:24	512	384	96	96	0	Format24bppRgb	305:MAME 0.216 (Nov 27 2019)	0c0a294903baa006ceea63b569019968b6eb4fb0

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	240	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
v113fr.u18	262144	346c68af	ceae4c0143c288dc9c1dd1e8a51f1e3371ffa439	maincpu	0	good	no
cg.u7	524288	cb48a66e	6d597193d1333a97957d5ceec8179a24bedfd928	igs017_igs031:sprites	0	good	no
text.u8	524288	48c4f4e6	b1e1ca62cf6a99c11a5cc56705eef7e22a3b2740	igs017_igs031:tilemaps	0	good	no
sp.u17	262144	71357845	25f4f7aebdcc0706018f041d3696322df569b0a3	oki	0	good	no
cq.u24	733			pld	0	nodump	no
igs_fixed_data.key	21	9159ecbf	b6bdb1f327944dfc7f6f71565a24e89517607490	igs_fixed_data	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi HD64180RP	16000000
audio	mono	Speaker
audio	oki	OKI MSM6295 ADPCM	1000000
audio	ymsnd	YM2413 OPLL	3579545

device_ref

tag	name
:igs_mux	igs_mux
:ppi8255	i8255
:screen	screen
:igs017_igs031	igs017_031
:igs017_igs031:palette	palette
:mono	speaker
:oki	okim6295
:maincpu	hd64180rp
:maincpu:asci_0	z180asci_channel_0
:maincpu:asci_1	z180asci_channel_1
:maincpu:csio	z180csio
:scantimer	timer
:igs_bitswap	igs_bitswap
:igs_incdec	igs_incdec
:ymsnd	ym2413

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy	1		8	no
gambling	1	10		no
joy	2		8	no
only_buttons	2	1		no

port, analog

port_tag	analog_masks
:BUTTONS
:COINS
:DSW1
:DSW2
:DSW3
:PLAYER1
:PLAYER2

dipswitch

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW1	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

Hold Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hold Mode	DSW1	2

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
In Win	2	yes
Always	0	no

Coin In

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin In	DSW1	12

location

name	number	inverted
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	12	yes
5	8	no
10	4	no
20	0	no

Key In

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key In	DSW1	48

location

name	number	inverted
SW1	5	no
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10	48	yes
100	32	no
200	16	no
500	0	no

Minimum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Bet	DSW1	192

location

name	number	inverted
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	192	yes
2	128	no
5	64	no
10	0	no

Max Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max Bet	DSW2	3

location

name	number	inverted
SW2	1	no
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5	3	yes
10	2	no
20	1	no
50	0	no

Register

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Register	DSW2	4

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Key Out Base

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key Out Base	DSW2	8

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	8	yes
10	0	no

Open Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Open Mode	DSW2	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Gaming (Gambling)	16	yes
Amuse	0	no

Demo Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Game	DSW2	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	no
On	0	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW3	1

location

name	number	inverted
SW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW3	2

location

name	number	inverted
SW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW3	4

location

name	number	inverted
SW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW3	8

location

name	number	inverted
SW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Number Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Number Type	DSW3	16

location

name	number	inverted
SW3	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
A,J,Q,K	16	yes
Number	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW3	32

location

name	number	inverted
SW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW3	64

location

name	number	inverted
SW3	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

CG Select

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CG Select	DSW3	128

location

name	number	inverted
SW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	128	yes
High	0	no
