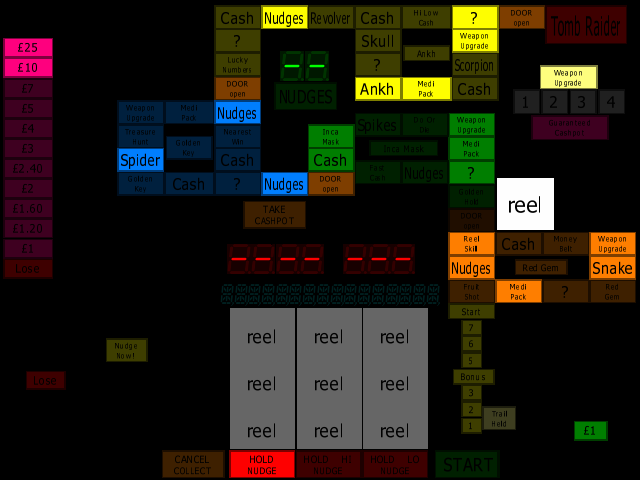

Tomb Raider (JPM) (IMPACT) (set 1)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
j6tomb	jpm/jpmimpctsw.cpp		no	no	yes	yes	Tomb Raider (JPM) (IMPACT) (set 1)	199?	JPM

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
tora-41.bin	131072	80956d40	0864e5fa7bb41dca2128566ccd80c1208dea0157	maincpu	0	good	no
tora-42.bin	131072	4f4feeb4	7d267a395e5450f71d0788a7b493bab133a622a0	maincpu	1	good	no
tr_snd.bin	524288	6cd91050	6818e59fc52b9776ee40bf7f2a8fca2f74343335	upd	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	8000000
audio	mono	Speaker
audio	upd	NEC uPD7759	640000

device_ref

tag	name
:maincpu	m68000
:main_duart	mc68681
:main_duart:cha	duart_channel
:main_duart:chb	duart_channel
:ip5wtimer	timer
:nvram	nvram
:ppi8255	i8255
:cointimer0	timer
:cointimer1	timer
:cointimer2	timer
:cointimer3	timer
:cointimer4	timer
:cointimer5	timer
:mono	speaker
:upd	upd7759
:meters	meters
:datalogger	bacta_datalogger
:vfd	s16lf01
:reel0	stepper
:reel1	stepper
:reel2	stepper
:reel3	stepper
:reel4	stepper
:reel5	stepper

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	6	yes	no
