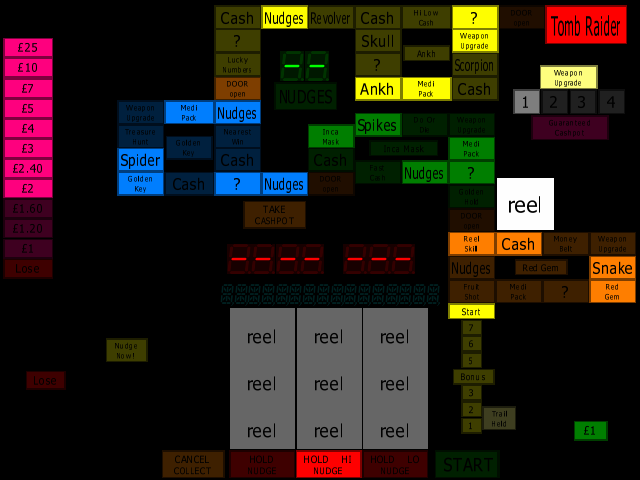

Tomb Raider (JPM) (IMPACT) (set 6) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
j6tombe	jpm/jpmimpctsw.cpp		no	no	yes	yes	Tomb Raider (JPM) (IMPACT) (set 6)	199?	JPM	j6tomb	j6tomb

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
tora-3n1.bin	131072	e809b870	f291b1b6b3926c584ea055f4459592d6cc24f5be	maincpu	0	good	no
tr_2.bin	131072	78cdf764	61643d684b63916eaef2cd54535bae2ed575545f	maincpu	1	good	no
tr_snd.bin	524288	6cd91050	6818e59fc52b9776ee40bf7f2a8fca2f74343335	upd	0	good	no	tr_snd.bin

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	8000000
audio	mono	Speaker
audio	upd	NEC uPD7759	640000

device_ref

name
m68000
mc68681
duart_channel
duart_channel
timer
nvram
i8255
timer
timer
timer
timer
timer
timer
speaker
upd7759
meters
bacta_datalogger
s16lf01
stepper
stepper
stepper
stepper
stepper
stepper

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	6	yes	no

port, analog

port_tag	analog_masks
:COINS
:COIN_SENSE
:DSW
:J10_0
:J10_1
:J10_2
:J9_0
:J9_1
:J9_2
:PAYCOIN_LEVEL
:PERCENT
:PIA_PORTB
:PIA_PORTC
:TEST_DEMO

configuration

Jackpot / Prize Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Jackpot / Prize Key	J10_0	15

setting

name	value	default
Not Fitted	15	no
0x0e	14	no
0x0d	13	no
0x0c	12	no
0x0b	11	no
0x0a	10	no
0x09	9	no
0x08	8	no
0x07	7	no
0x06	6	no
25 GBP	5	yes
0x04	4	no
0x03	3	no
0x02	2	no
0x01	1	no
0x00	0	no

Stake Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stake Key	J10_0	112

setting

name	value	default
0x00	0	no
0x10	16	no
0x20	32	no
0x30	48	no
25p	64	yes
0x50	80	no
0x60	96	no
0x70	112	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	J10_0	128

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	no
Off	128	yes

Percentage Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage Key	PERCENT	15

setting

name	value	default
Not fitted / 68% (Invalid for UK Games)	15	no
70	14	no
72	13	no
74	12	no
76	11	no
78	10	no
80	9	no
82	8	no
84	7	no
86	6	no
88	5	no
90	4	no
92	3	no
94	2	no
96	1	no
98	0	yes
