KC Compact - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
kccomp	amstrad/amstrad.cpp		no	no	no	yes	KC Compact	1989	VEB Mikroelektronik "Wilhelm Pieck" Mühlhausen	cpc464	cpc464

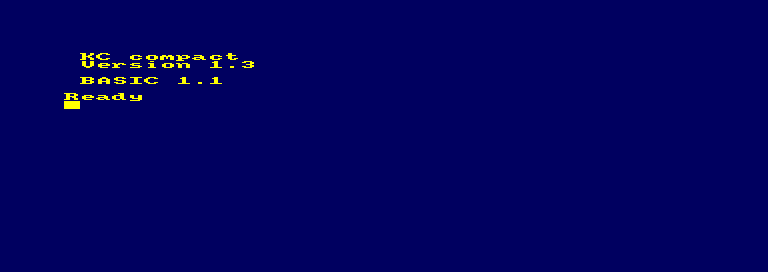

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
kccomp	2014	29/12/2025 11:31:26	768	272	96	96	0	Format24bppRgb	305:MAME 0.175 (Jun 29 2016)	22e17e322c86424669ff0ec926573b0af97c023f

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	704	144	50.080128	16000000	1024	32	736	312	71	215	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
kccos.rom	16384	7f9ab3f7	f828045e98e767f737fd93df0af03917f936ad08	maincpu	10000	good	no
kccbas.rom	16384	ca6af63d	d7d03755099d0aff501fa5fffc9c0b14c0825448	maincpu	14000	good	no
farben.rom	2048	a50fa3cf	2f229ac9f62d56973139dad9992c208421bc0f51	proms	18000	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	4000000
audio	mono	Speaker
audio	ay	AY-3-8912A PSG	1000000
audio	cassette	Cassette
audio	upd765:0:3ssdd:flopsndout	Speaker
audio	upd765:0:3ssdd:floppysound	Floppy sound	44100
audio	upd765:1:35ssdd:flopsndout	Speaker
audio	upd765:1:35ssdd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
cass_list	cpc_cass	original
flop_list	cpc_flop	original

device_ref

tag	name
:maincpu	z80
:ppi8255	i8255
:screen	screen
:palette	palette
:mc6845	hd6845s
:mono	speaker
:ay	ay8912
:centronics	centronics
:centronics:printer	centronics_printer
:centronics:printer:printer	printer_image
:snapshot	snapshot_image
:cassette	cassette_image
:cass_list	software_list
:upd765	upd765a
:upd765:0	floppy_connector
:upd765:0:3ssdd	floppy_3_ssdd
:upd765:0:3ssdd:flopsndout	speaker
:upd765:0:3ssdd:floppysound	flopsnd
:upd765:1	floppy_connector
:upd765:1:35ssdd	floppy_35_dd
:upd765:1:35ssdd:flopsndout	speaker
:upd765:1:35ssdd:floppysound	flopsnd
:flop_list	software_list
:exp	cpc_expansion_slot
:ram	ram

sound

channels
3

ramoption

name	default
320K
576K
128K	yes

device, instance

type	tag	interface	name	briefname
printout	centronics:printer:printer		printout	prin
snapshot	snapshot		snapshot	dump
cassette	cassette	cpc_cass	cassette	cass
floppydisk	upd765:0:3ssdd	floppy_3	floppydisk1	flop1
floppydisk	upd765:1:35ssdd	floppy_3_5	floppydisk2	flop2

device, extension

type	tag	interface	extension_names
printout	centronics:printer:printer		prn
snapshot	snapshot		sna
cassette	cassette	cpc_cass	wav, flac, cdt
floppydisk	upd765:0:3ssdd	floppy_3	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ipf
floppydisk	upd765:1:35ssdd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ipf

input

players	coins	service	tilt
1		no	no

control

type	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta
joy	6	8	no
mouse			no	0	255	100	10
keyboard	68		no

port, analog

port_tag	analog_masks
:cheetah
:controller_type
:green_display
:kbrow.0
:kbrow.1
:kbrow.2
:kbrow.3
:kbrow.4
:kbrow.5
:kbrow.6
:kbrow.7
:kbrow.8
:kbrow.9
:mouse_input1	255
:mouse_input2	255
:mouse_input3
:solder_links

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
centronics	nlq401	nlq401	no
centronics	smartboard	centronics_smartboard	no
centronics	chessmec	centronics_chessmec	no
centronics	samdac	centronics_samdac	no
centronics	covox_stereo	covox_stereo	no
centronics	adaptator	adaptator_multitap	no
centronics	digiblst	cpcdigiblst	no
centronics	lx800	lx800	no
centronics	jx80	epson_jx80	no
centronics	ap2000	ap2000	no
centronics	ex800	ex800	no
centronics	fx80	epson_fx80	no
centronics	rx80	epson_rx80	no
centronics	mz1p16	mz1p16	no
centronics	covox	covox	no
centronics	pl80	comx_pl80	no
centronics	lx810l	lx810l	no
centronics	p72	p72	no
centronics	printer	centronics_printer	yes
upd765:0	35ssdd	floppy_35_dd	no
upd765:0	3ssdd	floppy_3_ssdd	yes
upd765:1	35ssdd	floppy_35_dd	yes
upd765:1	3ssdd	floppy_3_ssdd	no
exp	musicmachine	cpcmusic	no
exp	transtape	cpc_transtape	no
exp	amdrum	cpc_amdrum	no
exp	dkspeech	cpc_dkspeech	no
exp	multiface2	cpc_mface2	no
exp	brunword4	cpc_brunword4	no
exp	doubler	cpc_doubler	no
exp	smartwatch	cpc_smartwatch	no
exp	amsrs232	cpc_serams	no
exp	ssa1	cpc_ssa1	no
exp	rs232	cpc_ser	no
exp	playcity	cpc_playcity	no
exp	rom	cpc_rom	no
exp	sf2	cpc_symf2	no
exp	pds	cpc_pds	no
exp	hd20	cpc_hd20	no

configuration

Joystick port device

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Joystick port device	controller_type	7

setting

name	value	default
Nothing	0	no
2-button joystick	1	yes
AMX mouse interface	2	no
Cheetah 125 Special rotational joystick	4	no

Monitor

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Monitor	green_display	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
CTM640 Colour Monitor	0	yes
GT64 Green Monitor	1	no

Manufacturer Name

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Manufacturer Name	solder_links	7

setting

name	value	default
Isp	0	no
Triumph	1	no
Saisho	2	no
Solavox	3	no
Awa	4	no
Schneider	5	no
Orion	6	no
Amstrad	7	yes

TV Refresh Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
TV Refresh Rate	solder_links	16

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
60 Hz	0	no
50 Hz	16	yes
