LNW-80 - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
lnw80	trs/lnw80.cpp		no	no	no	yes	LNW-80	1981	LNW Research

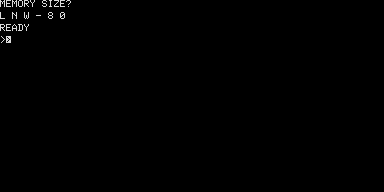

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
lnw80	733	29/12/2025 11:31:26	384	192	96	96	0	Format24bppRgb	305:MAME 0.175 (Jun 29 2016)	e8d0f657b9fa7a4e8ef9eaa7c05f92b67275231e

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	480	192	59.643178	10738635	682	0	480	264	0	192	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
lnw_a.u78	2048	e09f7e91	cd28e72efcfebde6cf1c7dbec4a4880a69e683da	maincpu	0	good	no
lnw_a1.u75	2048	ac297d99	ccf31d3f9d02c3b68a0ee3be4984424df0e83ab0	maincpu	800	good	no
lnw_b.u79	2048	c4303568	13e3d81c6f0de0e93956fa58c465b5368ea51682	maincpu	1000	good	no
lnw_b1.u76	2048	3a5ea239	8c489670977892d7f2bfb098f5df0b4dfa8fbba6	maincpu	1800	good	no
lnw_c.u80	2048	2ba025d7	232efbe23c3f5c2c6655466ebc0a51cf3697be9b	maincpu	2000	good	no
lnw_c1.u77	2048	ed547445	20102de89a3ee4a65366bc2d62be94da984a156b	maincpu	2800	good	no
lnw_chr.u100	2048	c89b27df	be2a009a07e4378d070002a558705e9a0de59389	chargen	0	good	no
lnw_ntsc.u130	32	b990a207	1a1cc3150cbfed76b1c88c0d561f9bee954f3234	proms	0	good	yes

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	1777777
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	cassette	Cassette
audio	floppy0:sssd:flopsndout	Speaker
audio	floppy0:sssd:floppysound	Floppy sound	44100
audio	floppy1:sssd:flopsndout	Speaker
audio	floppy1:sssd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
cass_list	trs80_cass	original	1
quik_list	trs80_quik	original	1
flop_list	trs80_flop	original	1

device_ref

tag	name
:maincpu	z80
:nmigate	ipt_merge_any_hi
:screen	screen
:palette	palette
:gfxdecode	gfxdecode
:mono	speaker
:speaker	speaker_sound_device
:cassette	cassette_image
:quickload	trs80_quickload
:fdc	fd1771
:floppy0	floppy_connector
:floppy0:sssd	floppy_525_qd
:floppy0:sssd:flopsndout	speaker
:floppy0:sssd:floppysound	flopsnd
:floppy1	floppy_connector
:floppy1:sssd	floppy_525_qd
:floppy1:sssd:flopsndout	speaker
:floppy1:sssd:floppysound	flopsnd
:floppy2	floppy_connector
:floppy3	floppy_connector
:centronics	centronics
:centronics:printer	centronics_printer
:centronics:printer:printer	printer_image
:cent_status_in	input_buffer
:cent_data_out	output_latch
:uart_clock	clock
:uart	ay31015
:rs232	rs232
:cass_list	software_list
:quik_list	software_list
:flop_list	software_list

sound

channels
3

device, instance

type	tag	interface	name	briefname
cassette	cassette	trs80_cass	cassette	cass
quickload	quickload	trs80_quik	quickload	quik
floppydisk	floppy0:sssd	floppy_5_25	floppydisk1	flop1
floppydisk	floppy1:sssd	floppy_5_25	floppydisk2	flop2
printout	centronics:printer:printer		printout	prin

device, extension

type	tag	interface	extension_names
cassette	cassette	trs80_cass	wav, flac, cas
quickload	quickload	trs80_quik	cmd
floppydisk	floppy0:sssd	floppy_5_25	mfi, dfi, jv1, dsk, td0
floppydisk	floppy1:sssd	floppy_5_25	mfi, dfi, jv1, dsk, td0
printout	centronics:printer:printer		prn

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		57		no

port, analog

port_tag	analog_masks
:BAUD
:CONFIG
:E9
:LINE0
:LINE1
:LINE2
:LINE3
:LINE4
:LINE5
:LINE6
:LINE7
:RESET

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
floppy0	sssd	floppy_525_qd	yes
floppy1	sssd	floppy_525_qd	yes
floppy2	sssd	floppy_525_qd	no
floppy3	sssd	floppy_525_qd	no
centronics	nlq401	nlq401	no
centronics	smartboard	centronics_smartboard	no
centronics	chessmec	centronics_chessmec	no
centronics	samdac	centronics_samdac	no
centronics	covox_stereo	covox_stereo	no
centronics	adaptator	adaptator_multitap	no
centronics	digiblst	cpcdigiblst	no
centronics	lx800	lx800	no
centronics	jx80	epson_jx80	no
centronics	ap2000	ap2000	no
centronics	ex800	ex800	no
centronics	fx80	epson_fx80	no
centronics	rx80	epson_rx80	no
centronics	mz1p16	mz1p16	no
centronics	covox	covox	no
centronics	pl80	comx_pl80	no
centronics	lx810l	lx810l	no
centronics	p72	p72	no
centronics	printer	centronics_printer	yes
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	votraxtnt	serial_votraxtnt	no
rs232	rs_printer	rs_serial_printer	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	h19	serial_heath_h19	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no

configuration

CPU Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CPU Speed	CONFIG	64

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1.77 MHz	0	yes
4 MHz	64	no

Floppy Disc Drives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Floppy Disc Drives	CONFIG	128

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

dipswitch

Baud Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Baud Rate	BAUD	255

value

name	value	default
110	0	no
300	1	no
600	2	no
1200	3	no
2400	4	no
4800	5	no
9600	6	yes
19200	7	no

Stop Bits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stop Bits	E9	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	16	yes
1	0	no

Bits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bits	E9	96

value

name	value	default
5	0	no
6	32	no
7	64	no
8	96	yes

Parity

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Parity	E9	136

value

name	value	default
None	8	yes
Odd	0	no
Even	128	no
