Connect 4 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
m4conn4	barcrest/mpu4mod2sw.cpp		no	no	no	yes	Connect 4	1989?	Dolbeck Systems

snap

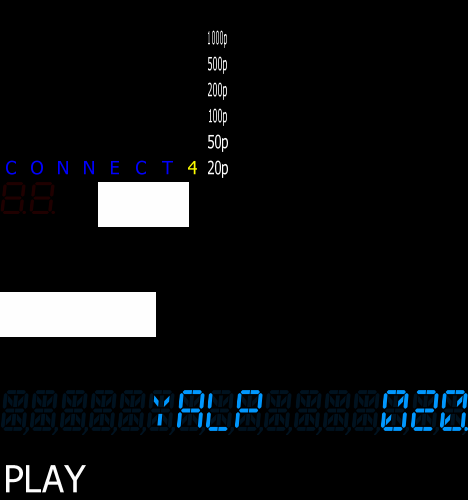

Connect 4 png snap

Connect 4 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
m4conn4	10870	29/12/2025 11:31:31	468	500	96	96	0	Format24bppRgb	305:MAME 0.207 (Feb 27 2019)	625b010f00c1970839f211dbdac0e19d5131c798

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
connect4.p2	16384	6090633c	0cd2725a235bf93cfe94f2ca648d5fccb87b8e5c	maincpu	8000	good	no
connect4.p1	16384	b1af50c0	7c9645ea378f0857b849ca24a239d9114f62da7f	maincpu	c000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	ay8913	AY-3-8913 PSG	1720000

device_ref

tag	name
:maincpu	mc6809
:50hz	timer
:vfd	msc1937
:ptm_ic2	ptm6840
:pia_ic3	pia6821
:pia_ic4	pia6821
:pia_ic5	pia6821
:pia_ic6	pia6821
:pia_ic7	pia6821
:pia_ic8	pia6821
:meters	meters
:dataport	bacta_datalogger
:hopper	coin_hopper
:mono	speaker
:alarmdac	dac
:nvram	nvram
:duart68681	mc68681
:duart68681:cha	duart_channel
:duart68681:chb	duart_channel
:ay8913	ay8913

sound

channels
1

feature

type	status	overall
graphics	imperfect

input

players	coins	service	tilt
1	4	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		2		no

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2
:hopper:TEST
