MAP-1010 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
map1010	sanyo/phc25.cpp		no	no	no	yes	MAP-1010	1983	Seiko

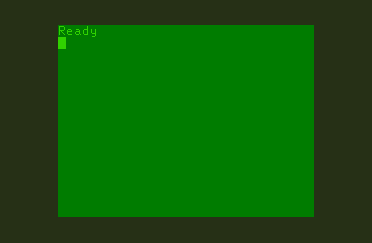

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
map1010	1485	29/12/2025 11:31:34	372	243	96	96	0	Format24bppRgb	305:MAME 0.269.0 (Aug 29 2024)	8bd77371364bbff1698478e15ee0f3c0264d31d6

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	372	243	59.922743	7159090	456	0	372	262	0	243	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
030_01ba.bin	8192	cc3fb33a	60dc8afe1310a3bb8fd425b6a021df9c2a6a33f4	maincpu	0	good	no
030_02ba.bin	8192	1aaaeb2b	e906ee69da543b2bfa3850574443eee57555cdda	maincpu	2000	good	no
030_03bb.bin	8192	a7b01c17	f4a24b64331e13f94bdf2421b0a2feb7d2ca8677	maincpu	4000	good	no
chargen.bin	4096	ddb24f2b	88b5095a5d3f09f9f508c8779c02823a887b7ba6	chargen	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	4000000
audio	mono	Speaker
audio	ay8910	AY-3-8910A PSG	1000000
audio	cassette	Cassette

softwarelist

tag	name	status	filter
cass_list	phc25_cass	compatible

device_ref

tag	name
:maincpu	z80
:screen	screen
:vdg	m5c6847p1
:mono	speaker
:ay8910	ay8910
:cassette	cassette_image
:centronics	centronics
:centronics:printer	centronics_printer
:centronics:printer:printer	printer_image
:cent_data_out	output_latch
:cass_list	software_list
:rtc	upd1990a

sound

channels
1

feature

type	status	overall
sound	imperfect

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cassette	cassette	phc25_cass			cassette	cass
printout	centronics:printer:printer				printout	prin

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cassette	cassette	phc25_cass			wav, flac, aif, aiff, phc
printout	centronics:printer:printer				prn

input

players	coins	service	tilt
2		no	no

control

type	player	buttons	ways	reverse
joy	1	1	8	no
keyboard	1	80		no
joy	2	1	8	no

port, analog

port_tag	analog_masks
:CONTROL
:JOY0
:JOY1
:KEY0
:KEY1
:KEY10
:KEY11
:KEY2
:KEY3
:KEY4
:KEY5
:KEY6
:KEY7
:KEY8
:KEY9
:MONITOR
:RTS
:vdg:artifacting

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
centronics	neomania	neomania_adapter	no
centronics	nlq401	nlq401	no
centronics	smartboard	centronics_smartboard	no
centronics	chessmec	centronics_chessmec	no
centronics	samdac	centronics_samdac	no
centronics	covox_stereo	covox_stereo	no
centronics	adaptator	adaptator_multitap	no
centronics	digiblst	cpcdigiblst	no
centronics	lx800	lx800	no
centronics	jx80	epson_jx80	no
centronics	ap2000	ap2000	no
centronics	ex800	ex800	no
centronics	fx80	epson_fx80	no
centronics	rx80	epson_rx80	no
centronics	mz1p16	mz1p16	no
centronics	covox	covox	no
centronics	pl80	comx_pl80	no
centronics	lx810l	lx810l	no
centronics	p72	p72	no
centronics	printer	centronics_printer	yes

configuration

Control Selector

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Control Selector	CONTROL	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On Line	0	yes
Manual (Print)	1	no

Monitor Selector

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Monitor Selector	MONITOR	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
B	1	yes
A	0	no

RTS

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
RTS	RTS	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
A	0	yes
B	1	no

Artifacting

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Artifacting	vdg:artifacting	3

setting

name	value	default
Off	0	no
Standard	1	yes
Reverse	2	no
