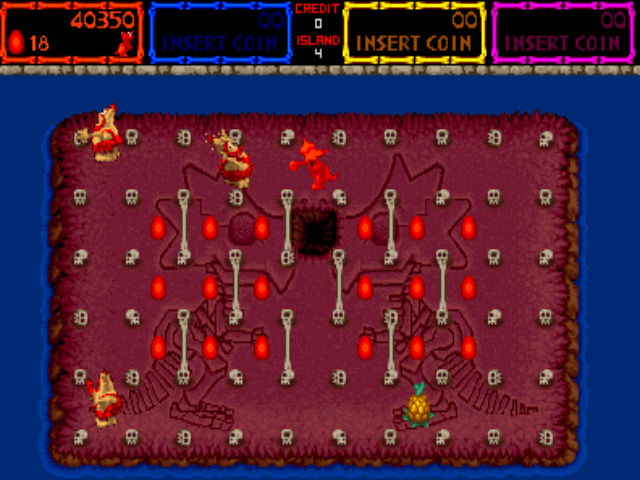

Maze (Trog rev LA4 3/11/91 bootleg) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mazebl	midway/midyunit.cpp		no	no	no	yes	Maze (Trog rev LA4 3/11/91 bootleg)	1990	bootleg	trog	trog

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	410	256	54.706840	8000000	506	90	500	289	20	276	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
1	262144	cf3a206e	a30bab30ef546cad3ad65a93a67c68b1fff51e79	cvsd:cpu	10000	good	no
2	131072	e6095189	a2caaf64e371050b37c63d9608ba5d289cf3cd91	maindata	c0000	good	no
3	131072	fdd7cc65	bfc4339953c122bca968f9cfa3a82df3584a3727	maindata	c0001	good	no
4	524288	dd7cd402	78419fddd98bc37d5382f22d2ce2615948f80d5f	gfx	0	good	no
6	262144	9c001d17	c0770fa3968355e06e7c99bff56edbf834c43196	gfx	80000	good	no
5	524288	e036e21a	584d06e82f1df571851a22fcb57248d03e49c233	gfx	200000	good	no
7	262144	c5ce99fa	29e8d7935816355d2e9d9deca3f5950ddd30a632	gfx	280000	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS34010	40000000
cpu	cvsd:cpu	Motorola MC6809E	2000000
audio	speaker	Speaker
audio	cvsd	Williams CVSD Sound Board
audio	cvsd:ym2151	YM2151 OPM	3579545
audio	cvsd:dac	MC1408 DAC
audio	cvsd:cvsd	HC-55516

device_ref

name
tms34010
nvram
palette
screen
speaker
wmscvsd
mc6809e
pia6821
ym2151
mc1408
hc55516

sound

channels
1

input

players	coins	service	tilt
4	3	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	1	4	no
joy	2	1	4	no
joy	3	1	4	no
joy	4	1	4	no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1
:IN2
:UNK0
:UNK1

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	1

location

name	number	inverted
DS1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	2

location

name	number	inverted
DS1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	4

location

name	number	inverted
DS1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	56

location

name	number	inverted
DS1	5	no
DS1	4	no
DS1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	56	yes
2	24	no
3	40	no
4	8	no
ECA	48	no
Free Play	0	no

Coinage Source

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage Source	DSW	64

location

name	number	inverted
DS1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Dipswitch	64	yes
CMOS	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW	128

location

name	number	inverted
DS1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	128	yes
Cocktail	0	no

Test Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Test Switch	DSW	256

location

name	number	inverted
DS2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Video Freeze

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Video Freeze	DSW	512

location

name	number	inverted
DS2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	512	yes
On	0	no

Players

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Players	DSW	3072

location

name	number	inverted
DS2	6	no
DS2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Players	3072	yes
3 Players	1024	no
2 Players	2048	no
1 Player	0	no

Coin Counters

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Counters	DSW	4096

location

name	number	inverted
DS2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
One	4096	yes
Two	0	no

Power-Up Test

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Power-Up Test	DSW	8192

location

name	number	inverted
DS2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8192	no

Country

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Country	DSW	49152

location

name	number	inverted
DS2	2	no
DS2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
USA	49152	yes
French	32768	no
German	16384	no
Unused	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN1	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no
