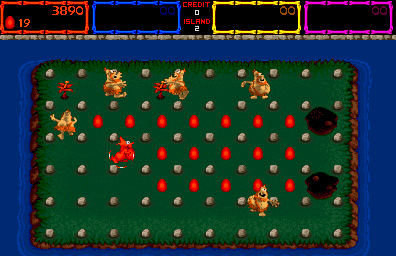

Trog (rev LA5 3/29/91) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
trog	midway/midyunit.cpp		no	no	no	yes	Trog (rev LA5 3/29/91)	1990	Midway

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	410	256	54.706840	8000000	506	90	500	289	20	276	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
trog_ii_u-4_sl_1.u4	65536	759d0bf4	c4c3fa51c43cf7fd241ac1f33d7d220aa9f9edb3	cvsd:cpu	10000	good	no
trog_ii_u-19_sl_1.u19	65536	960c333d	da8ce8dfffffe7a2d60b3f75cc5aa88e5e2be659	cvsd:cpu	30000	good	no
trog_ii_u-20_sl_1.u20	65536	67f1658a	c85dc920ff4b292afa9f6681f31918a200799cc9	cvsd:cpu	50000	good	no
trog_ii_u-105_la-5.u105	131072	d62cc51a	a63ed5b0e08dd89a1392e04cd88c9d83d75810c6	maindata	c0000	good	no
trog_ii_u-89_la-5.u89	131072	edde0bc8	95389b75c438c0f0cad668a35570fcb4f7790a02	maindata	c0001	good	no
trog_ii_u-111_la-1.u111	131072	9ded08c1	bbf069f218e3f3d67e45fa2229a471451b3a8f96	gfx	0	good	no
trog_ii_u-112_la-1.u112	131072	42293843	cae77eeddd784573beccb79e54573da0e4ccdd8a	gfx	20000	good	no
trog_ii_u-113_la-1.u113	131072	77f50cbb	5f2df3aedd90871ac02bca07c66387f6cda0dfdf	gfx	40000	good	no
trog_ii_u-106_la-1.u106	131072	af2eb0d8	3767e6f3853b092b40664c2b6c6a838f0243514b	gfx	80000	good	no
trog_ii_u-107_la-1.u107	131072	88a7b3f6	ba55f66929841a915d7b96aabf4b11e50ba6cfbd	gfx	a0000	good	no
trog_ii_u-95_la-1.u95	131072	f3ba2838	2bee6c783c84a9f3f9309d802f42983857190ece	gfx	200000	good	no
trog_ii_u-96_la-1.u96	131072	cfed2e77	7fc0f52ac844c9efcbcc3004c40f9f4fc7e1c346	gfx	220000	good	no
trog_ii_u-97_la-1.u97	131072	3262d1f8	754e3e8223edd11398b2db77fd5db619dad1577b	gfx	240000	good	no
trog_ii_u-90_la-1.u90	131072	16e06753	62ec2b18e6b965ea0792d655d7878b4225da3aca	gfx	280000	good	no
trog_ii_u-91_la-1.u91	131072	880a02c7	ab1b2d24be4571a183b230d267c6c8167d4a42a4	gfx	2a0000	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS34010	40000000
cpu	cvsd:cpu	Motorola MC6809E	2000000
audio	speaker	Speaker
audio	cvsd	Williams CVSD Sound Board
audio	cvsd:ym2151	YM2151 OPM	3579545
audio	cvsd:dac	MC1408 DAC
audio	cvsd:cvsd	HC-55516

device_ref

name
tms34010
nvram
palette
screen
speaker
wmscvsd
mc6809e
pia6821
ym2151
mc1408
hc55516

sound

channels
1

input

players	coins	service	tilt
4	3	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	1	4	no
joy	2	1	4	no
joy	3	1	4	no
joy	4	1	4	no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1
:IN2
:UNK0
:UNK1

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	1

location

name	number	inverted
DS1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	2

location

name	number	inverted
DS1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	4

location

name	number	inverted
DS1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	56

location

name	number	inverted
DS1	5	no
DS1	4	no
DS1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	56	yes
2	24	no
3	40	no
4	8	no
ECA	48	no
Free Play	0	no

Coinage Source

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage Source	DSW	64

location

name	number	inverted
DS1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Dipswitch	64	yes
CMOS	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW	128

location

name	number	inverted
DS1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	128	yes
Cocktail	0	no

Test Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Test Switch	DSW	256

location

name	number	inverted
DS2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Video Freeze

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Video Freeze	DSW	512

location

name	number	inverted
DS2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	512	yes
On	0	no

Players

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Players	DSW	3072

location

name	number	inverted
DS2	6	no
DS2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Players	3072	yes
3 Players	1024	no
2 Players	2048	no
1 Player	0	no

Coin Counters

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Counters	DSW	4096

location

name	number	inverted
DS2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
One	4096	yes
Two	0	no

Power-Up Test

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Power-Up Test	DSW	8192

location

name	number	inverted
DS2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8192	no

Country

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Country	DSW	49152

location

name	number	inverted
DS2	2	no
DS2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
USA	49152	yes
French	32768	no
German	16384	no
Unused	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN1	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no
