mame (0289) • machine mephistoe2 • Mephisto ESB II (ESB 6000 board)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mephistoe2	hegenerglaser/brikett.cpp		no	no	no	yes	Mephisto ESB II (ESB 6000 board)	1981	Hegener + Glaser

snap

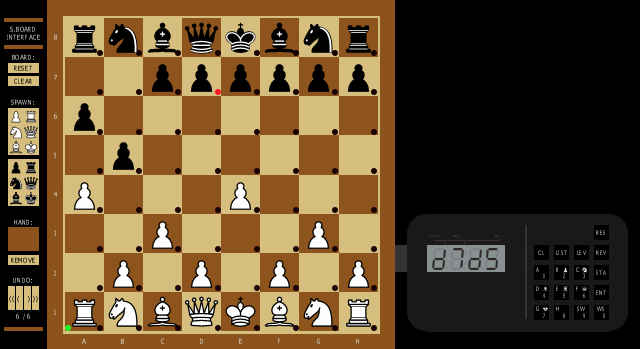

Mephisto ESB II (ESB 6000 board) png snap

Mephisto ESB II (ESB 6000 board) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
mephistoe2	32874	29/12/2025 11:31:35	640	349	96	96	0	Format24bppRgb	305:MAME 0.268.1 (Aug 1 2024)	4c0fe69012e4bca679840380a59a0cff5c8b08b5

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
251-11.1	4096	3c8e2631	5960e47f0659b1e5f164107069738e730e3ff255	maincpu	0	good	no
252-10.2	4096	832b053e	b0dfe857c38f13a4b04ac67a8a46f37c962a8629	maincpu	1000	good	no
253-09.3	4096	00788b63	cf94dc19ef85b359989410e7824280c59433fca9	maincpu	2000	good	no
254-09.4	4096	d6be47a6	3d577036111c026292b6c445efcb126cf7a6a472	maincpu	3000	good	no

chip

type	tag	name	clock
cpu	maincpu	RCA CDP1802	3579545
audio	speaker	Speaker
audio	dac	Filtered DAC

device_ref

tag	name
:maincpu	cdp1802
:irq_clock	clock
:display	mdisplay1
:display:lcd_pwm	pwm_display
:speaker	speaker
:dac	speaker_sound_device
:extport	cdp1852
:board	sensorboard
:led_pwm	pwm_display

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		17		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:IN.4
:IN.5
:PIECE
:RESET
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

CPU Frequency

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CPU Frequency	IN.4	3	IN.4	12	eq	8

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3.579MHz (Battery)	0	no
6.144MHz (Mains)	1	yes

Base Hardware

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Base Hardware	IN.4	12

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1st Model (3.579MHz)	0	yes
2nd Model (4.194MHz)	4	no
3rd Model (2 XTALs)	8	no

ESB 6000 Board

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
ESB 6000 Board	IN.5	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Piece Notation

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Piece Notation	PIECE	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
English	1	no
German	0	yes

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes

clones

name	description
mephistoe2a	Mephisto ESB II (ESB II board)
