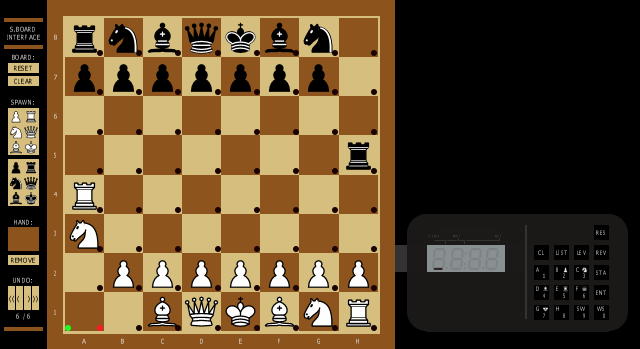

Mephisto ESB II (ESB II board) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mephistoe2a	hegenerglaser/brikett.cpp		no	no	no	yes	Mephisto ESB II (ESB II board)	1981	Hegener + Glaser	mephistoe2	mephistoe2

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
5000_00_251_01.1	4096	cebf66be	7793ba80159a8ae857a1b35d270bb6972fef0563	maincpu	0	good	no
5000_00_252_01.2	4096	66f38992	2f9007985ce350a8ee82797a66f37bb9a4de36a4	maincpu	1000	good	no
5000_00_253_01.3	4096	1b685892	af197e62e8a47a6244f7c2261929847f483775e5	maincpu	2000	good	no
5000_00_254_01.4	4096	e455845d	871e2b2b7e75b6ee09d3e027e1b4e5a24ce4c550	maincpu	3000	good	no

chip

type	tag	name	clock
cpu	maincpu	RCA CDP1802	3579545
audio	speaker	Speaker
audio	dac	Filtered DAC

device_ref

name
cdp1802
clock
mdisplay1
pwm_display
speaker
speaker_sound_device
cdp1852
sensorboard
pwm_display

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		17		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:IN.4
:IN.5
:PIECE
:RESET
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

CPU Frequency

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CPU Frequency	IN.4	3	IN.4	12	eq	8

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3.579MHz (Battery)	0	no
6.144MHz (Mains)	1	yes

Base Hardware

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Base Hardware	IN.4	12

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1st Model (3.579MHz)	0	yes
2nd Model (4.194MHz)	4	no
3rd Model (2 XTALs)	8	no

ESB II Board

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
ESB II Board	IN.5	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Piece Notation

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Piece Notation	PIECE	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
English	1	no
German	0	yes

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
