mame (0289) • machine mu1000 • MU1000

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mu1000	yamaha/ymmu2000.cpp		no	no	no	yes	MU1000	1999	Yamaha	mu500	mu500

snap

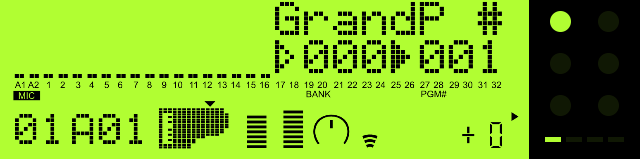

MU1000 png snap

MU1000 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
mu1000	15040	29/12/2025 11:31:36	640	159	96	96	0	Format24bppRgb	305:MAME 0.266.0 (May 30 2024)	82cd1e99bdc4e945c8f1b2d5e941c57e1518efbc

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
lcd:screen	svg	0	1280	386	60.000000	29644800	1280	0	1280	386	0	386	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
mu1000-v2.01-h.bin	1048576	d0809297	cee47062966b01ce72e8ebaf6f7fa9778b32f6ab	maincpu	0	good	no		v201
mu1000-v2.01-l.bin	1048576	048a2750	19f51c6304e3550d0bb8b3cca647f1fc609b0994	maincpu	2	good	no		v201
xv364a0.ic49	8388608	cda1afd6	e7098246b33c3cf22ed8cc15ed6383f8a06d17e9	swp30	0	good	no	xv364a0.ic49
xv365a0.ic50	8388608	10985ed0	d45a2e85859e05046f3ede8317a9bb0b88898116	swp30	2	good	no	xv365a0.ic50
xw848a0.ic53	8388608	34913e42	9e8b55c2cbac3f69cc0b17aeaf02053145bfaeda	swp30	1000000	good	no	xw848a0.ic53
xw849a0.ic54	8388608	3728f1f2	7670d672e24d6388fa92799175f35869a140c451	swp30	1000002	good	no	xw849a0.ic54

chip

type	tag	name	clock
cpu	maincpu	Hitachi SH-2 (SH7043A)	28000000
cpu	swp30m	Yamaha SWP30 sound chip	33868800
cpu	swp30s	Yamaha SWP30 sound chip	33868800
audio	speaker	Speaker
audio	swp30m	Yamaha SWP30 sound chip	33868800
audio	swp30s	Yamaha SWP30 sound chip	33868800
audio	plg1	PLG1x0 extension connector
audio	plg2	PLG1x0 extension connector
audio	plg3	PLG1x0 extension connector

device_ref

tag	name
:maincpu	sh7043a
:maincpu:intc	sh_intc
:maincpu:adc0	sh_adc_ms
:maincpu:adc1	sh_adc_ms
:maincpu:bsc	sh_bsc
:maincpu:cmt	sh_cmt
:maincpu:dmac	sh_dmac
:maincpu:dmac:0	sh_dmac_channel
:maincpu:dmac:1	sh_dmac_channel
:maincpu:dmac:2	sh_dmac_channel
:maincpu:dmac:3	sh_dmac_channel
:maincpu:mtu	sh_mtu
:maincpu:mtu:0	sh_mtu_channel
:maincpu:mtu:1	sh_mtu_channel
:maincpu:mtu:2	sh_mtu_channel
:maincpu:mtu:3	sh_mtu_channel
:maincpu:mtu:4	sh_mtu_channel
:maincpu:porta	sh_port32
:maincpu:portb	sh_port16
:maincpu:portc	sh_port16
:maincpu:portd	sh_port32
:maincpu:porte	sh_port16
:maincpu:portf	sh_port16
:maincpu:sci0	sh_sci
:maincpu:sci1	sh_sci
:sciirq	ipt_merge_any_hi
:sci	sci4
:ram	nvram
:lcd	mulcd
:lcd:screen	screen
:speaker	speaker
:swp30m	swp30
:mdin_a	midi_port
:mdin_a:midiin	midiin_port
:mdin_a:midiin:midiinimg	midiin
:mdin_b	midi_port
:mdin_b:midiin	midiin_port
:mdin_b:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout
:swp30s	swp30
:plg1	plg1x0_connector
:plg2	plg1x0_connector
:plg3	plg1x0_connector

biosset

name	description	default
v201	Upgrade package (Ver2.01 02-MAY-29)	yes

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin_a:midiin:midiinimg				midiin1	min1
midiin	mdin_b:midiin:midiinimg				midiin2	min2
midiout	mdout:midiout:midioutimg				midiout	mout

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin_a:midiin:midiinimg				mid, syx
midiin	mdin_b:midiin:midiinimg				mid, syx
midiout	mdout:midiout:midioutimg				mid

input

players	coins	service	tilt
1		no	no

port, analog

port_tag	analog_masks
:SWS0
:SWS1
:SWS2
:SWS3
:SWS4
:SWS5
:mdin_a:midiin:midiinimg:CFG
:mdin_b:midiin:midiinimg:CFG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin_a	midiin	midiin_port	yes
mdin_b	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes
plg1	plg150ap	plg150_ap	no
plg1	plg100vl	plg100_vl	no
plg2	plg150ap	plg150_ap	no
plg2	plg100vl	plg100_vl	no
plg3	plg150ap	plg150_ap	no
plg3	plg100vl	plg100_vl	no
