MZ-2500 - mame (0284) machine

MAME: 0284 - Released: 2025-12-30T16:33:58 - Machines: 49538 - rom: 367487 - disk: 1392

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mz2500	sharp/mz2500.cpp		no	no	no	yes	MZ-2500	1985	Sharp

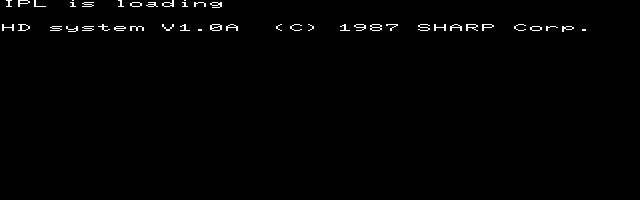

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems
mz2500	1156	29/12/2025 11:31:36	640	200	96	96	0	Format24bppRgb	305:MAME 0.203 (Oct 31 2018)

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	640	200	59.818605	21477272	748	0	640	480	0	200	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional
ipl.rom	32768	7a659f20	ccb3cfdf461feea9db8d8d3a8815f7e345d274f7	ipl	good	no
cg.rom	2048	a082326f	dfa1a797b2159838d078650801c7291fa746ad81	cgrom	good	no
kanji.rom	262144	dd426767	cc8fae0cd1736bc11c110e1c84d3f620c5e35b80	kanji	good	no
kanji2.rom	131072	eaaf20c9	771c4d559b5241390215edee798f3bce169d418c	kanji2	good	no
dict.rom	262144	aa957c2b	19a5ba85055f048a84ed4e8d471aaff70fcf0374	dictionary	good	no
phone.rom	16384	8e49e4dc	2589f0c95028037a41ca32a8fd799c5f085dab51	phone	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	6000000
audio	fdc:0:35dd:flopsndout	Speaker
audio	fdc:0:35dd:floppysound	Floppy sound	44100
audio	fdc:1:35dd:flopsndout	Speaker
audio	fdc:1:35dd:floppysound	Floppy sound	44100
audio	mono	Speaker
audio	ym	YM2203 OPN	2000000
audio	dac1bit	Filtered DAC

softwarelist

tag	name	status	filter
flop_list	mz2500_flop	original
flop_list2	mz2000_flop	compatible

device_ref

tag	name
:maincpu	z80
:rambank0	address_map_bank
:rambank1	address_map_bank
:rambank2	address_map_bank
:rambank3	address_map_bank
:rambank4	address_map_bank
:rambank5	address_map_bank
:rambank6	address_map_bank
:rambank7	address_map_bank
:ppi	i8255
:pio	z80pio
:sio	z80sio
:sio:cha	z80sio_channel
:sio:chb	z80sio_channel
:rp5c15	rp5c15
:pit	pit8253
:pit:counter0	pit_counter
:pit:counter1	pit_counter
:pit:counter2	pit_counter
:fdc	mb8876
:fdc:0	floppy_connector
:fdc:0:35dd	floppy_35_dd
:fdc:0:35dd:flopsndout	speaker
:fdc:0:35dd:floppysound	flopsnd
:fdc:1	floppy_connector
:fdc:1:35dd	floppy_35_dd
:fdc:1:35dd:flopsndout	speaker
:fdc:1:35dd:floppysound	flopsnd
:fdc:2	floppy_connector
:fdc:3	floppy_connector
:joy1	msx_general_purpose_port
:joy1:joystick	msx_joystick
:joy2	msx_general_purpose_port
:joy2:joystick	msx_joystick
:mouse_port	rs232
:mouse_port:x68k	x68k_mouse
:screen	screen
:palette	palette
:gfxdecode	gfxdecode
:mono	speaker
:ym	ym2203
:dac1bit	speaker_sound_device
:exp0	mz80_exp_slot
:exp1	mz80_exp_slot
:flop_list	software_list
:flop_list2	software_list

sound

channels
3

feature

type	status	overall
graphics	imperfect

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
floppydisk	fdc:0:35dd	floppy_3_5			floppydisk1	flop1
floppydisk	fdc:1:35dd	floppy_3_5			floppydisk2	flop2

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
floppydisk	fdc:0:35dd	floppy_3_5			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk
floppydisk	fdc:1:35dd	floppy_3_5			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk

input

players	coins	service	tilt
3		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity
joy	1	2	8	no
keyboard	1	96		no
joy	2	2	8	no
mouse	3	2		no	0	4095	100

port, analog

port_tag	analog_masks
:DSW1
:FRONT_PANEL
:KEY0
:KEY1
:KEY2
:KEY3
:KEY4
:KEY5
:KEY6
:KEY7
:KEY8
:KEY9
:KEYA
:KEYB
:KEYC
:KEYD
:UNUSED
:joy1:joystick:JOY
:joy2:joystick:JOY
:mouse_port:x68k:BTN
:mouse_port:x68k:X	4095
:mouse_port:x68k:Y	4095

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
fdc:0	35dd	floppy_35_dd	yes
fdc:0	3ssdd	floppy_3_ssdd	no
fdc:0	525dd	floppy_525_dd	no
fdc:1	35dd	floppy_35_dd	yes
fdc:1	3ssdd	floppy_3_ssdd	no
fdc:1	525dd	floppy_525_dd	no
fdc:2	35dd	floppy_35_dd	no
fdc:2	3ssdd	floppy_3_ssdd	no
fdc:2	525dd	floppy_525_dd	no
fdc:3	35dd	floppy_35_dd	no
fdc:3	3ssdd	floppy_3_ssdd	no
fdc:3	525dd	floppy_525_dd	no
joy1	vaus	msx_vaus	no
joy1	townspad	msx_townspad	no
joy1	towns6b	msx_towns6b	no
joy1	sega	msx_segactrl	no
joy1	mouse	msx_mouse	no
joy1	magickey	msx_magickey	no
joy1	libbler	msx_libblerpad	no
joy1	martypad	msx_martypad	no
joy1	joystick	msx_joystick	yes
joy1	xe1ap	msx_xe1ap	no
joy1	hypershot	msx_hypershot	no
joy2	vaus	msx_vaus	no
joy2	townspad	msx_townspad	no
joy2	towns6b	msx_towns6b	no
joy2	sega	msx_segactrl	no
joy2	mouse	msx_mouse	no
joy2	magickey	msx_magickey	no
joy2	libbler	msx_libblerpad	no
joy2	martypad	msx_martypad	no
joy2	joystick	msx_joystick	yes
joy2	xe1ap	msx_xe1ap	no
joy2	hypershot	msx_hypershot	no
mouse_port	x68k	x68k_mouse	yes
exp0	mz1r37	mz1r37	no
exp0	mz1e35	mz1e35	no
exp0	mz1e30	mz1e30	no
exp1	mz1r37	mz1r37	no
exp1	mz1e35	mz1e35	no
exp1	mz1e30	mz1e30	no

dipswitch

DSW1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DSW1	DSW1	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8	yes

IPLPRO

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
IPLPRO	DSW1	48

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	48	yes

Monitor Interlace

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Monitor Interlace	DSW1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes
