MZ-700 - mame (0284) machine

MAME: 0284 - Released: 2025-12-30T16:33:58 - Machines: 49538 - rom: 367487 - disk: 1392

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mz700	sharp/mz700.cpp		no	no	no	yes	MZ-700	1982	Sharp

snap

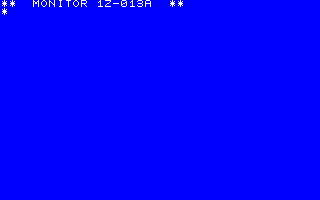

MZ-700 png snap

MZ-700 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems
mz700	1168	29/12/2025 11:31:36	320	200	96	96	0	Format24bppRgb	305:MAME 0.203 (Oct 31 2018)

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	200	50.036312	8867235	568	0	320	312	0	200	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
1z-013a.rom	4096	4c6c6b7b	ef8f7399e86c1dc638a5cb83efdb73369c2b5735	monitor	0	good	no
mz700fon.int	4096	42b9e8fb	5128ad179a702f8e0bd9910a58bad8fbe4c20167	cgrom	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3546894
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	cassette	Cassette

softwarelist

tag	name	status	filter
cass_list	mz700_cass	original
cass_list_80k	mz80k_cass	compatible

device_ref

tag	name
:maincpu	z80
:banke	address_map_bank
:screen	screen
:palette	palette
:gfxdecode	gfxdecode
:mono	speaker
:speaker	speaker_sound_device
:cursor	timer
:other	timer
:pit8253	pit8253
:pit8253:counter0	pit_counter
:pit8253:counter1	pit_counter
:pit8253:counter2	pit_counter
:ppi8255	i8255
:ls145	ttl74145
:cassette	cassette_image
:cass_list	software_list
:cass_list_80k	software_list
:ram	ram

sound

channels
1

ramoption

name	default
64K	yes

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cassette	cassette	mz_cass			cassette	cass

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cassette	cassette	mz_cass			wav, flac, m12, mzf, mzt

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy			8	no
keyboard		68		no

port, analog

port_tag	analog_masks
:JOY
:ROW0
:ROW1
:ROW2
:ROW3
:ROW4
:ROW5
:ROW6
:ROW7
:ROW8
:ROW9
