MZ-80A - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mz80a	sharp/mz80.cpp		no	no	no	yes	MZ-80A	1982	Sharp

snap

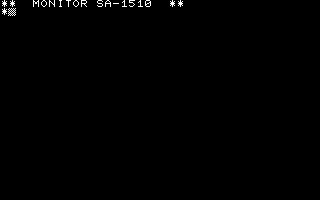

MZ-80A png snap

MZ-80A jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
mz80a	658	29/12/2025 11:31:36	320	200	96	96	0	Format24bppRgb	305:MAME 0.203 (Oct 31 2018)	bd3418f1e59ab9460adbf1fc47bd30716a79392c

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	200	60.000000	3840000	320	0	320	200	0	200	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
sa1510.rom	4096	ae63ab39	3c2180c52fc470131ba668a6c16e77656adeccf8	maincpu	0	good	no
mz80afi.rom	2048	e3b3ddfb	ec94cc3d236716f53e747f0c8ac9186d72bf9c10	maincpu	f000	good	no
mz80acg.rom	2048	a87c2e2b	e8aefbdb48a63e5f96692af868c353ca7e1bfcd2	chargen	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	2000000
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	cassette	Cassette

softwarelist

tag	name	status	filter
cass_list	mz80k_cass	original

device_ref

tag	name
:maincpu	z80
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:mono	speaker
:speaker	speaker_sound_device
:ppi8255	i8255
:pit8253	pit8253
:pit8253:counter0	pit_counter
:pit8253:counter1	pit_counter
:pit8253:counter2	pit_counter
:tempo	timer
:cassette	cassette_image
:cass_list	software_list

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cassette	cassette	mz_cass			cassette	cass

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cassette	cassette	mz_cass			wav, flac, m12, mzf, mzt

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		80		no

port, analog

port_tag	analog_masks
:LINE0
:LINE1
:LINE2
:LINE3
:LINE4
:LINE5
:LINE6
:LINE7
:LINE8
:LINE9
