MZ-80K - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mz80k	sharp/mz80.cpp		no	no	no	yes	MZ-80K	1979	Sharp	mz80kj	mz80kj

snap

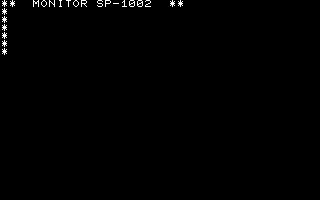

MZ-80K png snap

MZ-80K jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
mz80k	754	29/12/2025 11:31:36	320	200	96	96	0	Format24bppRgb	305:MAME 0.176 (Jul 27 2016)	399c5bbb096a67d9f4dbbefa4d2dec132d5b9e31

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	200	60.000000	3840000	320	0	320	200	0	200	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
sp1002.rom	4096	2223e677	518ffbe2333582ab36e6d76d1e03879a246ffa1c	maincpu	0	good	no	sp1002.rom	sp1002
80ktc.rom	4096	19ed6546	2bbeff916c2fa8991e718070ca4195beb45e0848	maincpu	0	good	no		tc
80kv44.rom	4096	d66af028	718904c011dfcfcfabbb7dbdaaa35b9f3ac41baf	maincpu	0	good	no		v44
mz80kfdif.rom	1024	d36505e0	1f60027e8739313962a37edbf98172df7062df49	maincpu	f000	good	no	mz80kfdif.rom
80kcg.rom	2048	9b2fb88b	6d4d120bd0e3a8c781c581e3c379a39db610a4d2	chargen	0	good	no
80kcgf.rom	2048	be952852	e8273de9cce88b10630187841f81aa9be22520b7	chargen	800	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	2000000
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	cassette	Cassette

softwarelist

tag	name	status	filter
cass_list	mz80k_cass	original

device_ref

tag	name
:maincpu	z80
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:mono	speaker
:speaker	speaker_sound_device
:ppi8255	i8255
:pit8253	pit8253
:pit8253:counter0	pit_counter
:pit8253:counter1	pit_counter
:pit8253:counter2	pit_counter
:tempo	timer
:cassette	cassette_image
:cass_list	software_list

biosset

name	description	default
sp1002	sp1002	no
tc	tc	no
v44	v44	no

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cassette	cassette	mz_cass			cassette	cass

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cassette	cassette	mz_cass			wav, flac, aif, aiff, m12, mzf, mzt

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		78		no

port, analog

port_tag	analog_masks
:LINE0
:LINE1
:LINE2
:LINE3
:LINE4
:LINE5
:LINE6
:LINE7
:LINE8
:LINE9
