Nascom 2 - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
nascom2	nascom/nascom1.cpp		no	no	no	yes	Nascom 2	1979	Nascom Microcomputers

snap

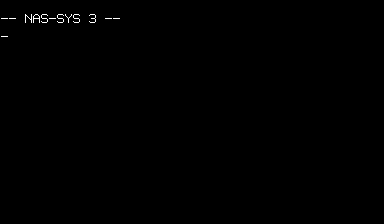

Nascom 2 png snap

Nascom 2 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
nascom2	575	29/12/2025 11:31:36	384	224	96	96	0	Format24bppRgb	305:MAME 0.203 (Oct 31 2018)	fdda6eacbd59453ce643bb220b3ca17381c85a42

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	384	224	50.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	yes	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
nassys1.ic34	2048	b6300716	29da7d462ba3f569f70ed3ecd93b981f81c7adfa	maincpu	0	good	no		ns1
nassys3.ic34	2048	6804e675	d55dccec2d1da992a39c38b0b6d24e3809073513	maincpu	0	good	no		ns3
nassys3a.ic34	2048	39d24a05	7bfb574c1f8ce0f460a53b9a6c11c711aabccbb8	maincpu	0	good	no		ns3a
nassys3n.ic34	2048	87ef62bb	dab81511925be36044b3e8b0ba26a0c717fe83ae	maincpu	0	good	no		ns3n
basic.ic43	8192	5cb5197b	c41669c2b6d6dea808741a2738426d97bccc9b07	basic	0	good	no
nascom1.ic66	2048	33e92a04	be6e1cc80e7f95a032759f7df19a43c27ff93a52	gfx1	0	good	no
nasgra.ic54	2048	2bc09d32	d384297e9b02cbcb283c020da51b3032ff62b1ae	gfx1	800	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	4000000
audio	cassette	Cassette
audio	mono	Speaker

softwarelist

tag	name	status	filter
snap_list	nascom_snap	original	NASCOM2
socket_list	nascom_socket	original
floppy_list	nascom_flop	original

device_ref

tag	name
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:z80pio	z80pio
:ram	ram
:hd6402	ay31015
:cassette	cassette_image
:mono	speaker
:snapshot	snapshot_image
:snapchar	snapshot_image
:maincpu	z80
:socket1	generic_socket
:socket2	generic_socket
:nasbus	nasbus
:nasbus1	nasbus_slot
:nasbus2	nasbus_slot
:nasbus3	nasbus_slot
:nasbus4	nasbus_slot
:snap_list	software_list
:socket_list	software_list
:floppy_list	software_list
:uart_clock	clock
:kansas_r	timer

biosset

name	description	default
ns1	Nas-Sys 1	no
ns3	Nas-Sys 3	yes
ns3a	Nas-Sys 3 (AVC)	no
ns3n	Nas-Sys 3 (NET)	no

sound

channels
1

ramoption

name	default
8K
16K
32K
48K	yes

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cassette	cassette	nascom_cass			cassette	cass
snapshot	snapshot	nascom_snap			snapshot1	dump1
snapshot	snapchar	nascom_char			snapshot2	dump2
romimage	socket1	nascom_socket			romimage1	rom1
romimage	socket2	nascom_socket			romimage2	rom2

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cassette	cassette	nascom_cass			wav, flac
snapshot	snapshot	nascom_snap			nas
snapshot	snapchar	nascom_char			chr
romimage	socket1	nascom_socket			bin, rom
romimage	socket2	nascom_socket			bin, rom

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		54		no

port, analog

port_tag	analog_masks
:DSW0
:KEY.0
:KEY.1
:KEY.2
:KEY.3
:KEY.4
:KEY.5
:KEY.6
:KEY.7
:lsw1

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
socket1
socket2
nasbus1	floppy	nascom_fdc	no
nasbus1	avc	nascom_avc	no
nasbus2	floppy	nascom_fdc	no
nasbus2	avc	nascom_avc	no
nasbus3	floppy	nascom_fdc	no
nasbus3	avc	nascom_avc	no
nasbus4	floppy	nascom_fdc	no
nasbus4	avc	nascom_avc	no

dipswitch

Cassette Baud Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cassette Baud Rate	DSW0	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
300	0	yes
1200	1	no

Restart address

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Restart address	lsw1	15

location

name	number	inverted
LSW1	1	no
LSW1	2	no
LSW1	3	no
LSW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0000H	0	yes
1000H	1	no
2000H	2	no
3000H	3	no
4000H	4	no
5000H	5	no
6000H	6	no
7000H	7	no
8000H	8	no
9000H	9	no
A000H	10	no
B000H	11	no
C000H	12	no
D000H	13	no
E000H	14	no
F000H	15	no

clones

name	description
nascom2c	Nascom 2 (CP/M)
